NET module with more than 16 electronic ballast units (EBU)

In this application, the NET module control can manage more than 16 EBUs by supplying
NET module through an external DALI power supply.
Components
DALI power supply
ƒ
Luminaires (max. 64 EBUs)
ƒ
NET module
ƒ
Connection diagram
PE
N
L
DA
DA
DA
PS

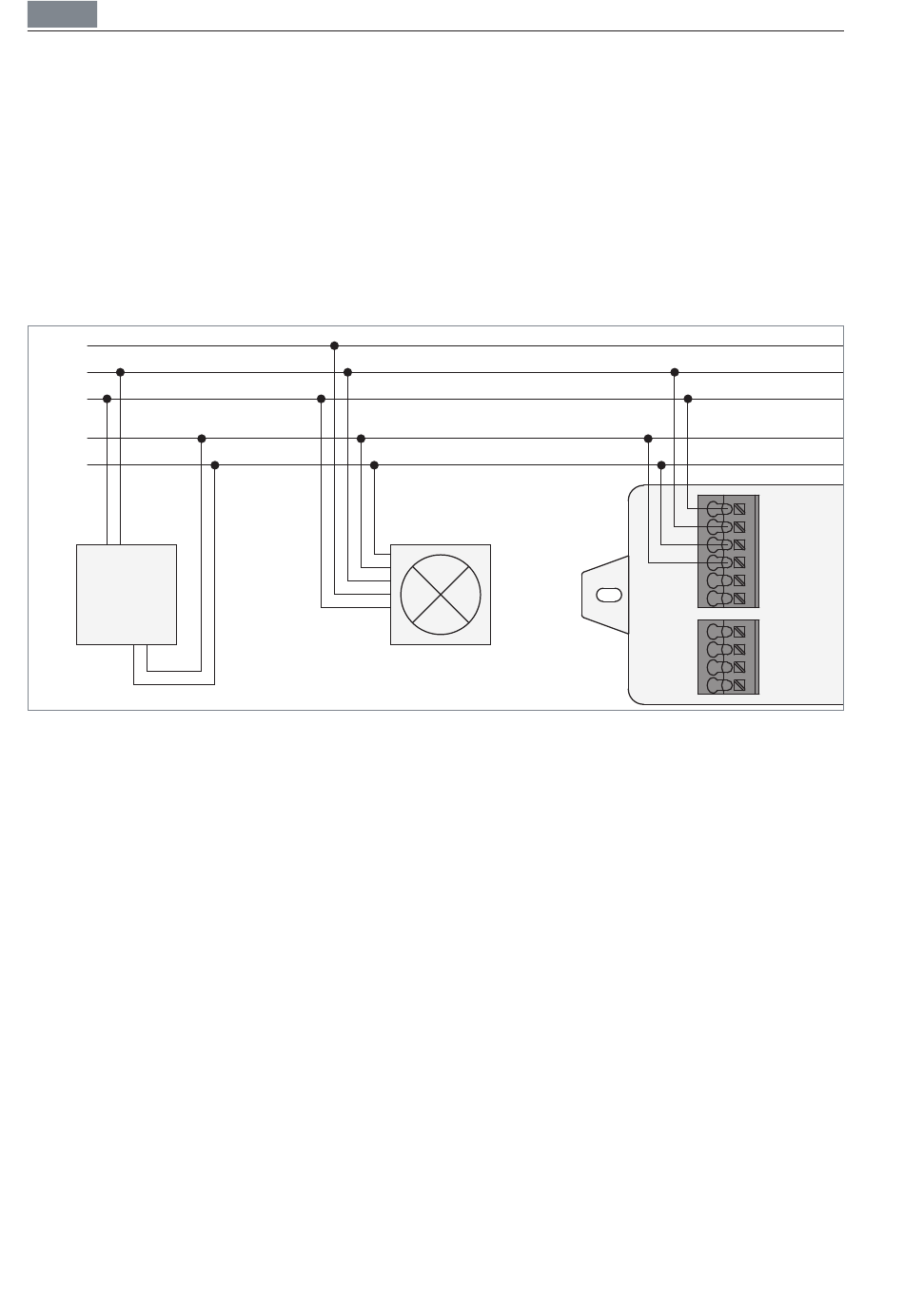

Fig. 12: Connection diagram: NET module with more than 16 EBUs.
26
Applications
L
N
DA OUT
DA OUT
DA IN
DA IN
DA PS 1
DA PS 2
DA PS 3
DA PS 4
