6.2

Switching VTL On/Off and dimming

In this application, VTL can be switched on and off via an external DALI rotary dimmer and
also dimmed. Thus, the brightness of the current light situation can be set.
Components
DALI rotary dimmer
ƒ
Luminaires
ƒ
- With internal power supply: max. 16 electronic ballast units (EBU)
- With external power supply: max. 64 EBU
NET module
ƒ

Connection diagram

PE
N
L
DA
DA

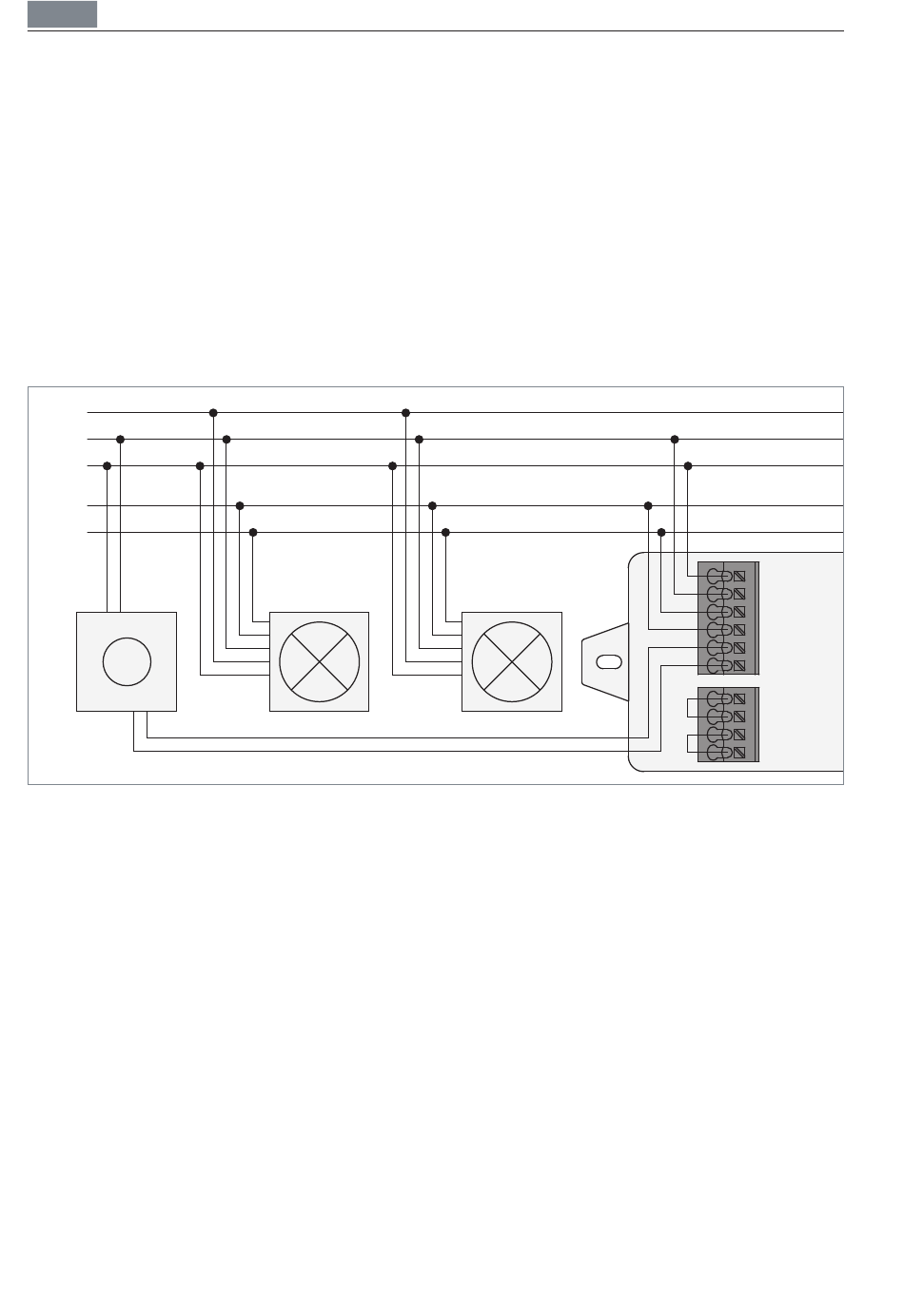

Fig. 7: Connection diagram: Switching VTL On/Off and dimming, internal power supply.
22
Applications
L
N
DA OUT
DA OUT
DA IN
DA IN
DA PS 1
DA PS 2
DA PS 3
DA PS 4
