4.

Overview

4.1

Scope of delivery

NET module

ƒ
SD memory card
ƒ
4.2 NET module

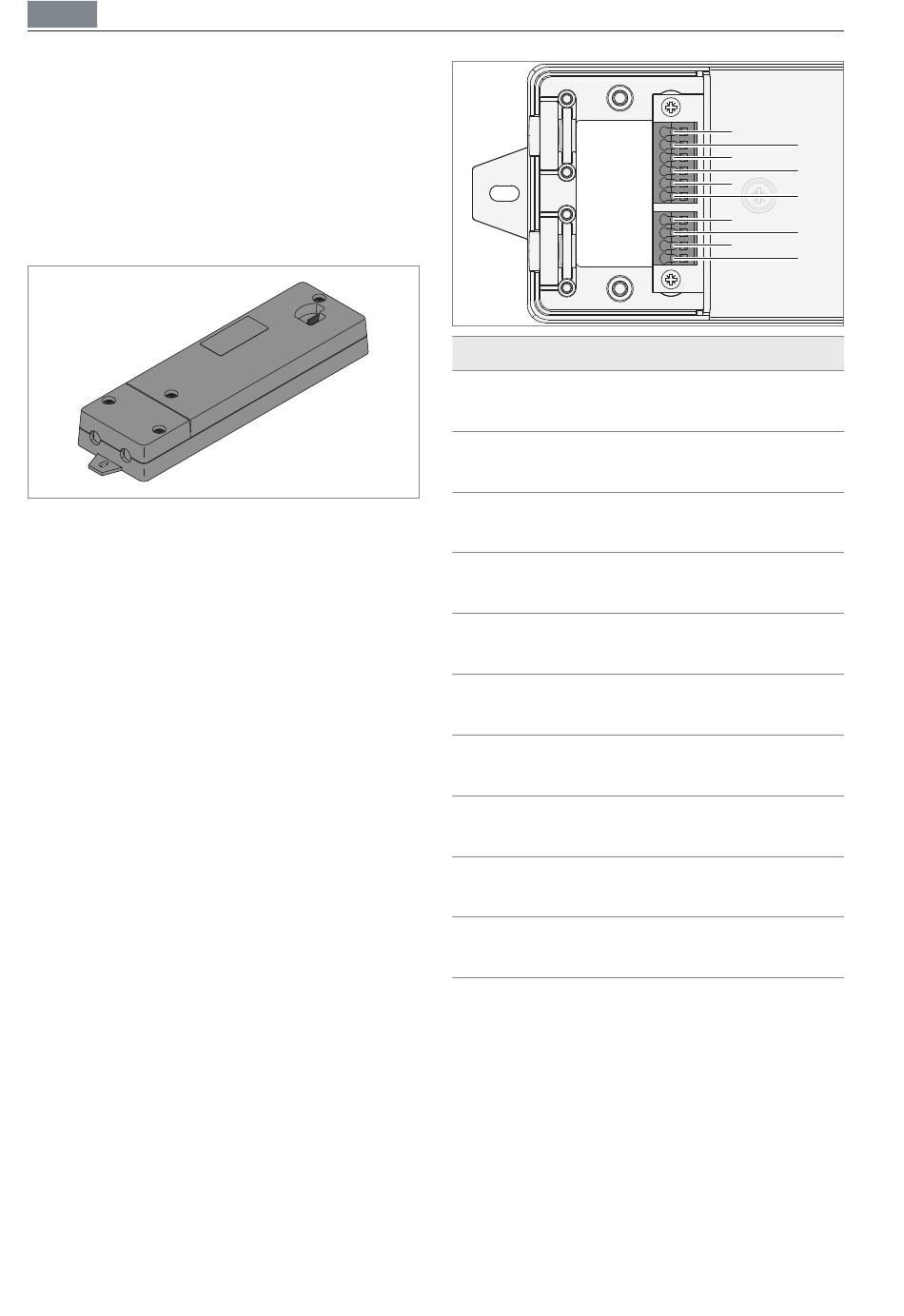

Fig. 1: NET module.
The NET module is the central component
for generation of the biodynamic light using
room luminaires.
A real-time clock is integrated in the NET
module. A lithium battery ensures that
the clock continues to run and all data is
retained even if the mains voltage fails. As
a basis for the time change (summer time/
winter time), a calendar up to the year 2060
is stored.
Connections on the NET module
All DALI connections comply with the DALI
standard according to IEC 62386 Device
Type 6. The DALI output functions accord-
ing to the broadcast principle. This means
that all connected luminaires work in the
same way. To generate the biodynamic
light, the luminaires must be preconfig-
ured as follows:
Group 0: cold tone
ƒ
Group 1: warm tone
ƒ
Waldmann luminaires are already adjusted
in this way ex works.
18
100-240V L
50/60 Hz N
DA OUT
DA OUT
DA IN
DA IN
DA PS 1
DA PS 3
No. Designation
A
100-240V
B
50/60 Hz
C
DA OUT
D DA OUT
E DA IN
F DA IN
G
DA PS 1
H
DA PS 2
I
DA PS 3
J DA PS 4
Tab. 1: Connections on the NET module.
DALI power supply
NOTE: As-delivered, the internal power
supply is used. The internal power supply
is established using wire bridges between
the connections G and H as well as I and J,
see Tab. 1.
Overview
A
C
E
G
2
I
4
Description
L-- Mains connection
(phase)
N- Mains connection
(neutral conductor)
DALI output lumi-
naire connection
DALI output lumi-
naire connection
DALI input control
connection
DALI input control
connection
DALI input power
supply
DALI output inter-
nal power supply
DALI input power
supply
DALI output inter-
nal power supply
B
D
F
H
J
