5.

Installation

A
B

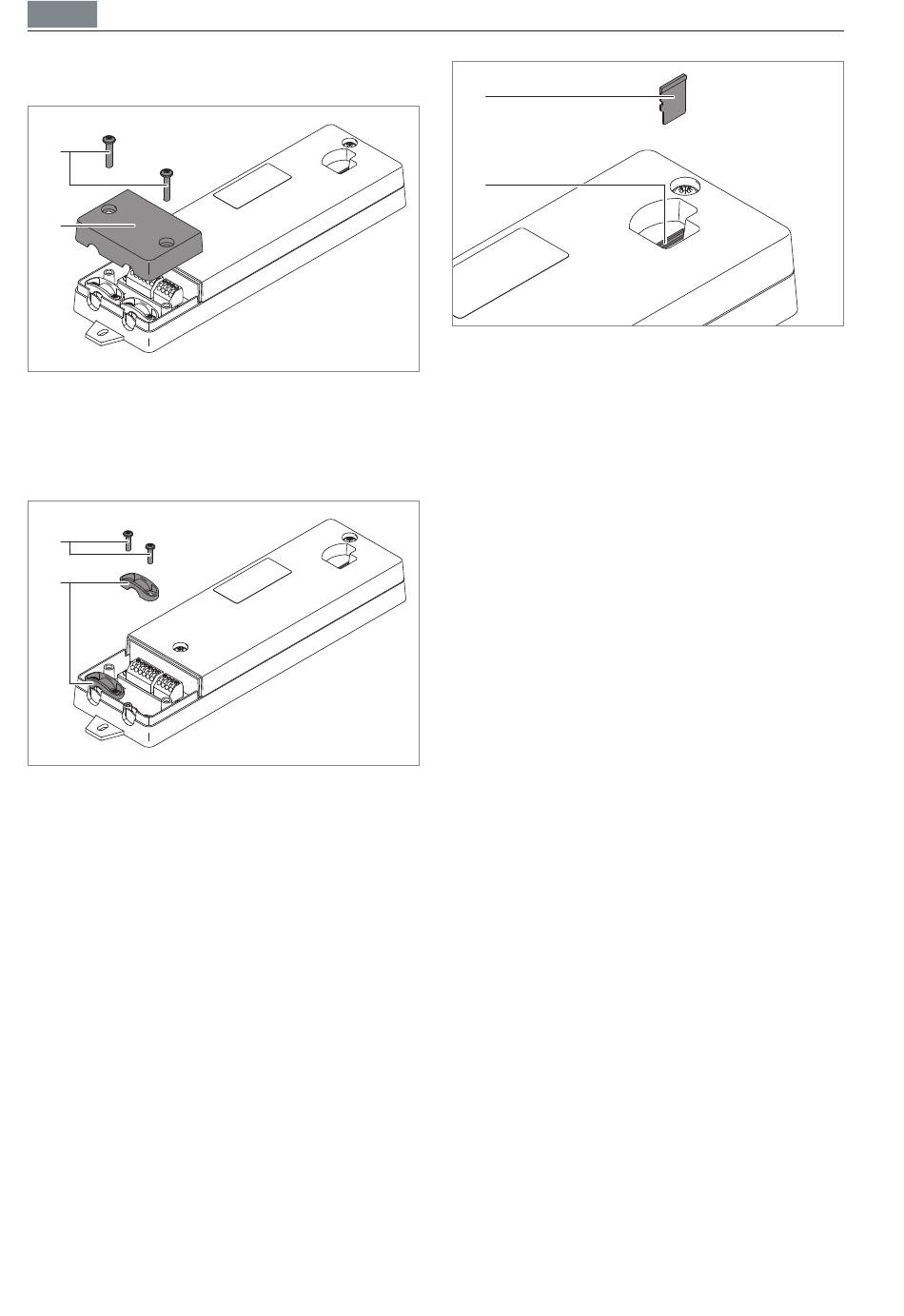

Fig. 3: Removing the cover.
X Unscrew the screws A on the cover B at
the NET module and remove the cover,
see Fig. 3.
C
D
Fig. 4: Removing strain reliefs.
X Unscrew the screws C on the strain
reliefs D and remove the strain reliefs,
see Fig. 4.
X Select the desired application, chapter 6
"Applications" , page 21.
X Connect connecting cables with a
cross-section of 0.5 mm² to 1,5 mm²
to the NET module according to the
connection diagram of the application.
X Clamp the connecting cables with the
strain reliefs to the NET module.
X Remount the cover to the NET module.
20
E
F
Fig. 5: Inserting the SD card.
X Insert the memory card E into the slot F
of the NET module, see Fig. 5.
X Supply the NET module with power.
