Switching VTL On/Off

ƒ
Switching VTL On/Off and dimming
ƒ
Switching VTL On/Off and boosting
ƒ
Switching VTL On/Off and daylight and presence sensors
ƒ
NET module as DALI participant in the building management system
ƒ
NET module with more than 16 electronic ballast units (EBU)
ƒ
6.1 Switching VTL On/Off
In this application, VTL can be manually switched on and off via an external mains switch.
NOTE: When the system is supplied with power, the connected luminaires start with
a warm colour temperature. After about 10 seconds, the system starts to simulate the
course of the day and set on the connected luminaires the colour temperature which cor-
responds to the natural light of the current time of day.
Components
Main switch ON/OFF
ƒ
Luminaires
ƒ
- With internal power supply: max. 16 electronic ballast units (EBU)
- With external power supply: max. 64 EBU
NET module
ƒ

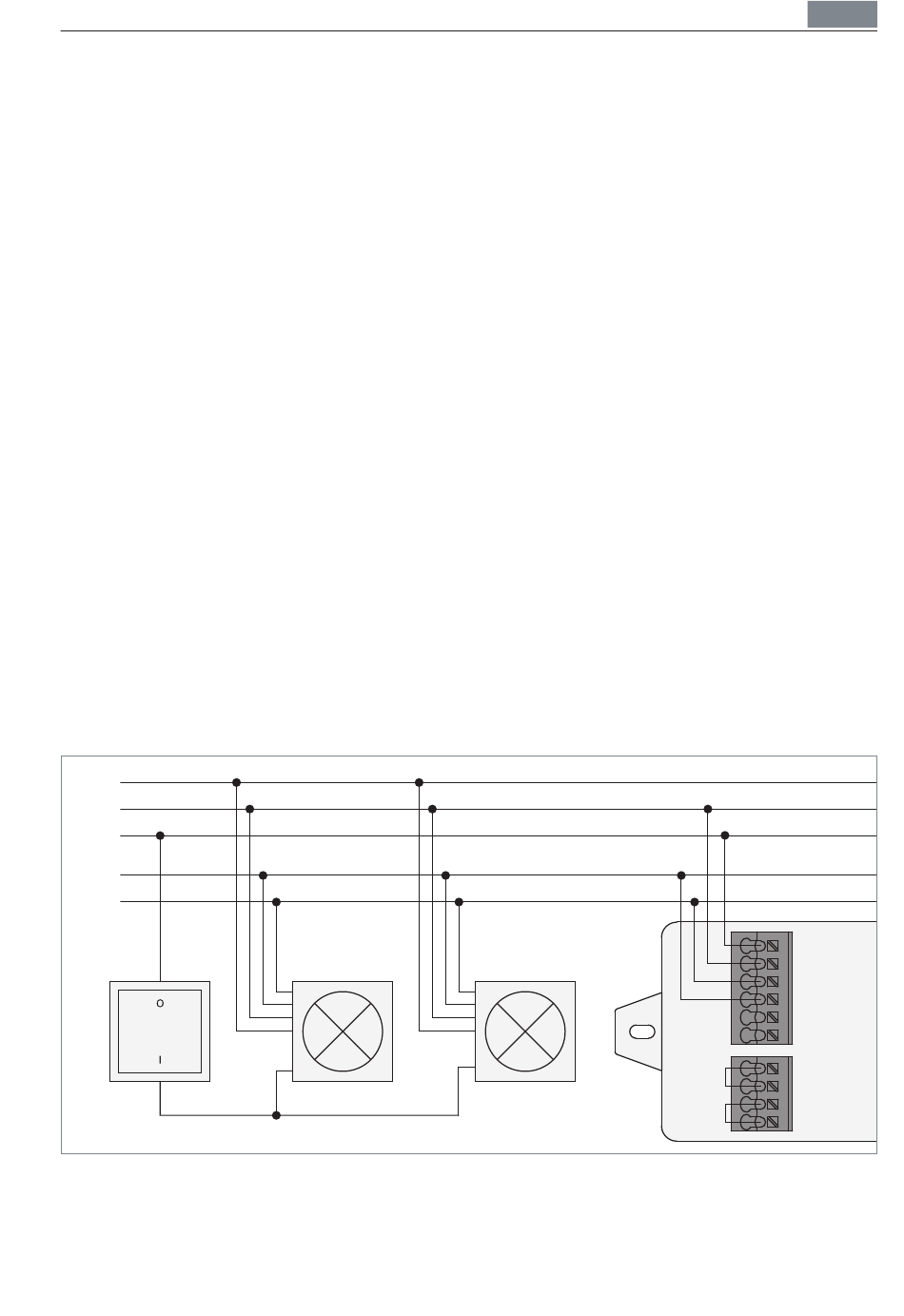

Connection diagram
PE
N
L
DA
DA
Fig. 6: Connection diagram: Switching VTL On/Off, internal power supply.
