86 AVENTICS | DDL | R499050020–BDL–001–AD
Commissioning and Operation
ON
Bit1
O PEN
S6
250 kBaud
O

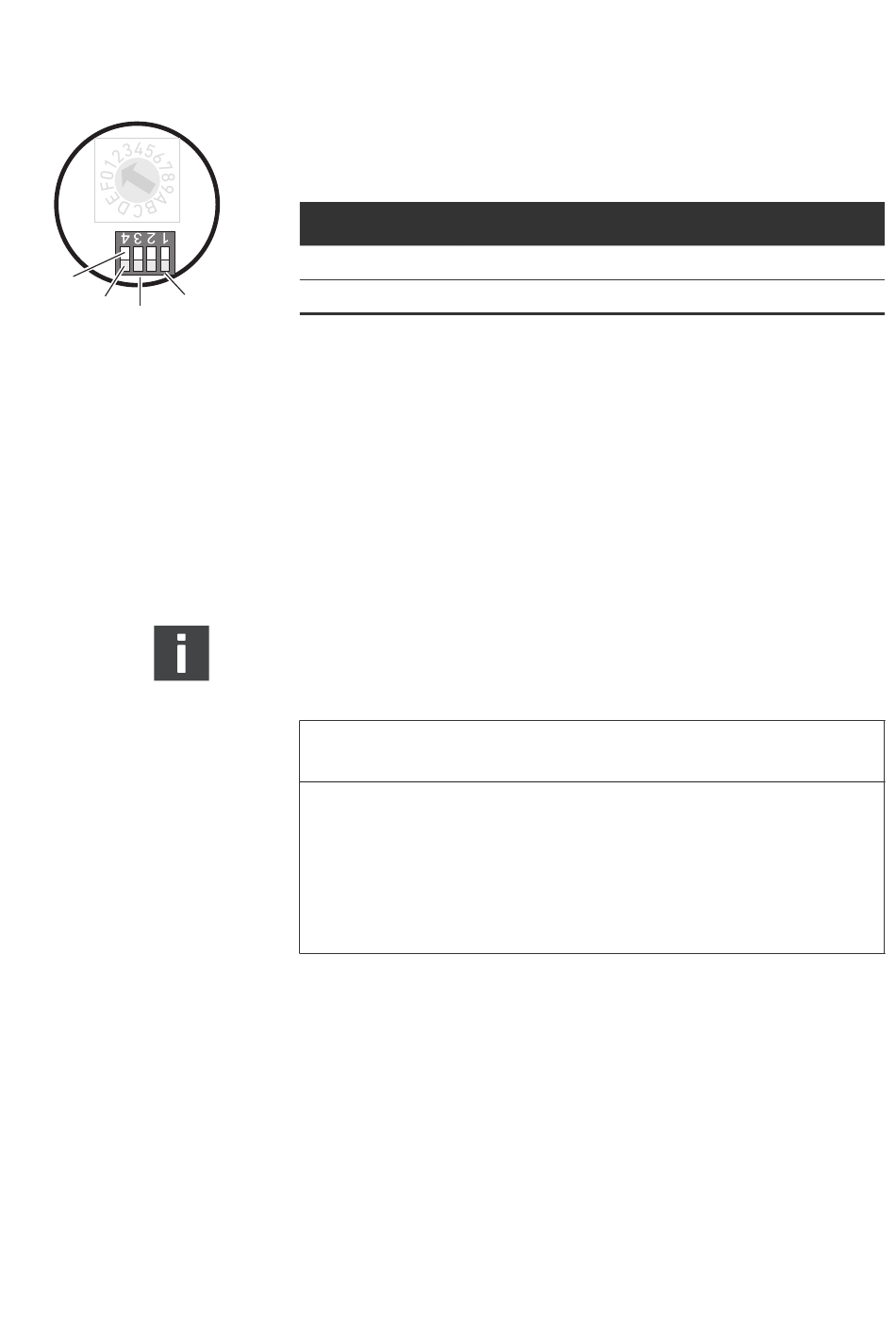

Set the baud rate under PG fitting A with the S6 switch, bit 1.
Table 12: Selecting the DDL baud rate with the S6 switch, bit 1
Baud rate Bit 1
125 kBaud Open
250 kBaud On (presetting)
7.1.2

Assigning an address to the bus coupler

A clear address must be set for the bus coupler using the
S5 rotary switch in order for it to be recognized in the DDL line.
Addressing can be done in two ways:
W
Manual addressing or
W
Automatic addressing
Manual and automatic addressing are not possible
simultaneously.
Changes during operation
Changes to the addressing will only be taken over after a
voltage reset.
O
Never change the settings during operation.
O
Turn the device off before changing the address setting.
NOTICE
