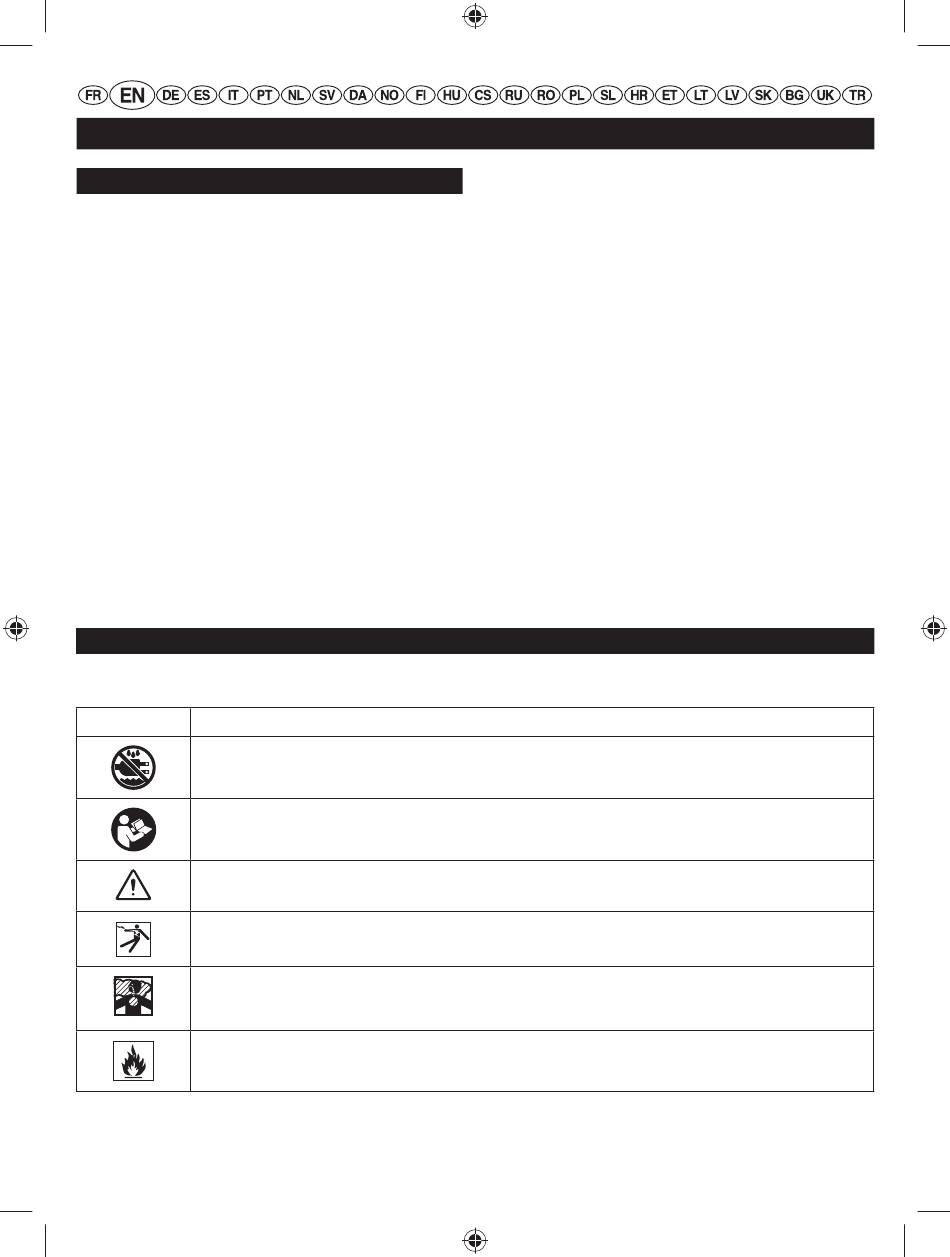

Ryobi RIG2000PC Manuel D'utilisation page 31

DESCRIPTION
1. Engine cover
2. Engine/choke lever/on-off switch/fuel valve lever
3. Starter grip and rope
4. Fuel cap
5. Parallel kit terminal
6. AC circuit breaker
7. AC receptacles
8. DC circuit breaker
9. 12 Volt DC receptacle
10. Auto idle switch
11. Power indicator
12. Overload indicator
13. Low oil indicator
14. Reset button
15. Ground terminal
16. Retractable handle
17. Battery charging cable
18. Spark plug cover
19. Muffler with spark arrestor screen
SYMBOL
Some of the following symbols may be used on this tool. Please study them and learn their meaning.
Proper interpretation of these symbols will allow you to operate the tool better and safer.
Symbols
Do not expose to rain or use in damp locations.
To reduce the risk of injury, the user must read and understand the operator's manual before
using the product.
Precautions that involve your safety.
Failure to use in dry conditions and to observe safe practices can result in electric shock.
Running the generator gives off carbon monoxide, an odourless, colourless, poison gas.
Breathing carbon monoxide can cause nausea, fainting, or death.
Fuel and its vapours are extremely fl ammable and explosive. Fire or explosion can cause severe
burns or death.
English (Original instructions)
20. Wheel
21. Funnel
22. Oil cap/dipstick
23. Off
24. On
25. Engine/choke lever in off position
26. Cold start position
27. Run position
28. Battery
29. Screw
30. Washer
31. Air filter cover
32. Filter element, large
33. Filter element, small
34. Container
35. Spark plug cap
36. Spark plug
37. Carburetor drain screw
