OPERATING THE PATIENT LIFT

(FIGURE 1)
To Close/Open the Legs of the Base
Assembly
The shifter handle is used to open or close the legs of
the base for stability when lifting a patient.
WARNING
The operation of the patient lift is an easy
and safe procedure. DO NOT attempt any
transfer without approval of the patient's
physician, nurse or medical assistant. Thor-
oughly read the instructions in this Owner's
Manual, observe a trained team of ex-
perts performing the lifting procedures
and then perform the entire lift proce-
dure several times with proper supervi-
sion and a capable individual acting as a
patient.
ONLY operate this lift with the legs in MAXI-
MUM OPEN POSITION and LOCKED in
place. The base legs MUST be locked in
the open position at all times for stability
and patient safety when lifting and
transferring a patient.
1. Stand at the rear of the patient lift and grasp the shifter
handle with one (1) hand and place the opposite hand
on the steering handle of the mast for balance.
NOTE: The shifter handle MUST lock into its mounting
slot to lock the legs in the full open or closes position.
WARNING
If the shifter handle is NOT positioned
completely into its mounting slot, DO NOT
use the patient lift until shifter handle is
properly seated and the legs of the pa-
tient lift LOCKED in place or injury and/
or damage may occur.
TO CLOSE.
2. Push the shifter handle OUT and away from the
patient lift and then to your LEFT until it LOCKS in
the notch of the bracket.
TO OPEN.
3. Push the shifter handle OUT and away from the
patient lift and then to your RIGHT until it LOCKS in
the notch of the bracket.

OPERATION

TO CLOSE

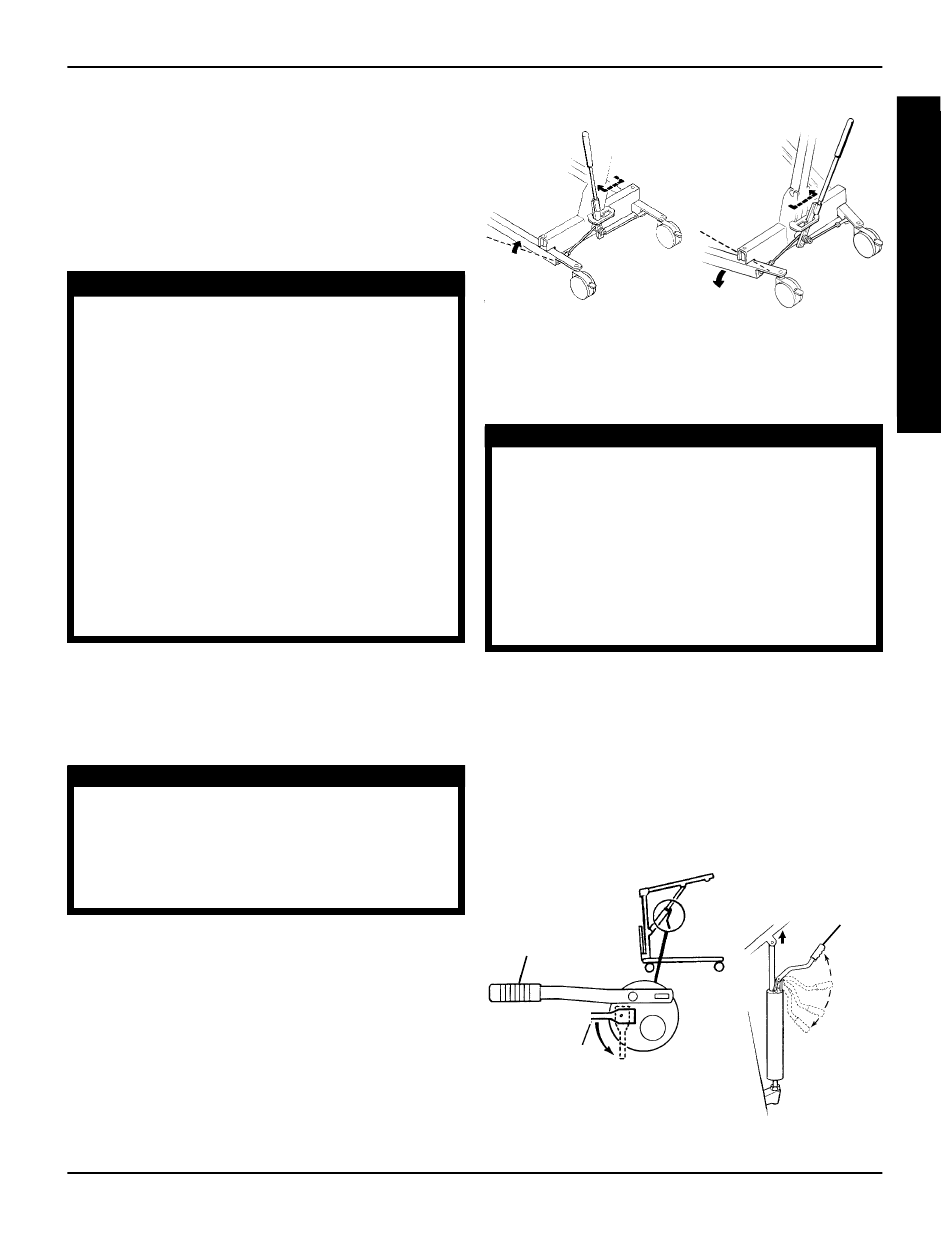

FIGURE 1- TO CLOSE/OPEN THE LEGS OF THE

Raising/Lowering Manual/Hydraulic Lift

Invacare does NOT recommend locking
of the rear casters of the patient lift when
lifting an individual. Doing so could cause
the lift to tip and endanger the patient
and assistants. Invacare DOES recom-
mend that the rear casters be left UN-
LOCKED during lifting procedures to al-
low the patient lift to stabilize itself when
the patient is initially lifted from a chair,
bed or any stationary object.
There are two (2) controls on the pump
assembly:
a. The control valve
b. The pump handle

RAISING THE LIFT.

The control valve MUST be in the CLOSED position
(control valve positioned towards pump handle) to move
the pump handle up and down to elevate the boom
and the patient.
Pump Handle
Closed
Control Valve
FIGURE 2 - RAISING THE HYDRAULIC PATIENT
9
OPERATION
TO OPEN
BASE ASSEMBLY
WARNING
Open
LIFT
O
P
E
R
A
T
I
O
N
Pump
Handle
