Parts are located throughout the shipping carton, including underneath the grill. Inspect the grill, parts, and hardware blister
pack after removing from the protective shipping carton. Discard all packaging materials from inside and outside of the grill
before assembly, then review and inspect all parts by referencing the parts list. If any part is missing or damaged, do not attempt
to assemble. Shipping damage is not covered under warranty. Contact your dealer or Pit Boss® Customer Care for parts.
service@pitboss-grills.com | USA: (480) 923-9630 | CANADA (TOLL FREE): 1-877-942-2246
IMPORTANT: To ease installation and avoid injury, use two people when assembling this appliance.
Tools required for assembly: screwdriver and wrench. A wrench for the wheels is included.
IMPORTANT: It is advised to read each step entirely before starting assembly on instructions. Do not tighten screws
completely until all screws for that step have been installed.
1. MOUNTING THE LEFT FRONT SUPPORT
LEG TO LOWER CABINET ASSEMBLY
Parts Required :
1
x
Lower Cabinet Assembly (#46)
Left Front Support Leg (#44)
1
x
M6x60 mm Screws (#C)
2
x
1
x
M4x10 mm Screw (#F)
Installation :
•
Place a piece of cardboard on the floor to
prevent scratching the unit.
Mount Left Front Support Leg (#44) to the
•
Lower Cabinet Assembly (#46)
Use: 2 x M6x60 mm Screws (#C) &
1 x M4x10 mm Screw (#F)

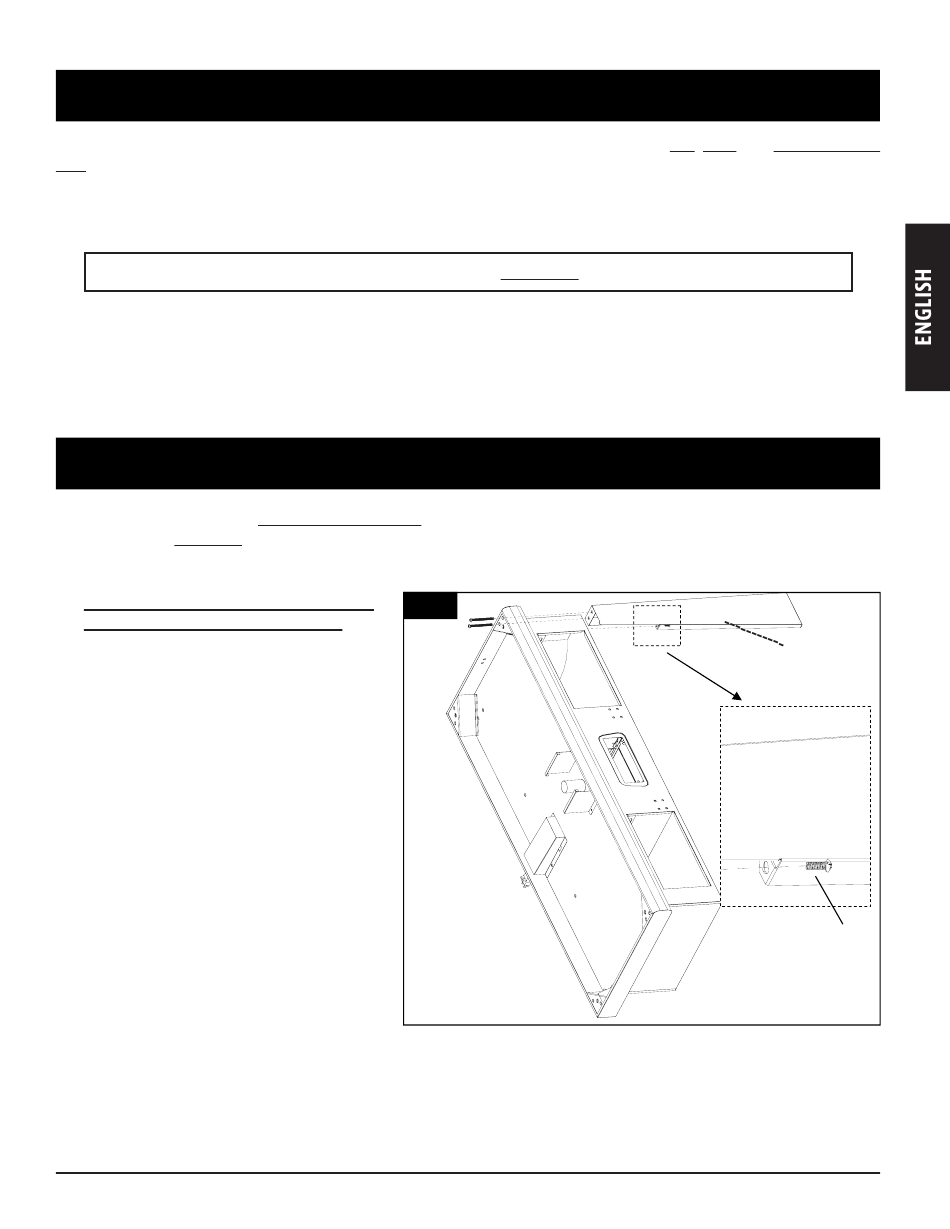

See Fig. 1.
ASSEMBLY PREPARATION
ASSEMBLY INSTRUCTIONS
Fig.1
#44
M4x10 bolt
9
