Pit Boss MEMPHIS Instructions Et Recettes page 17

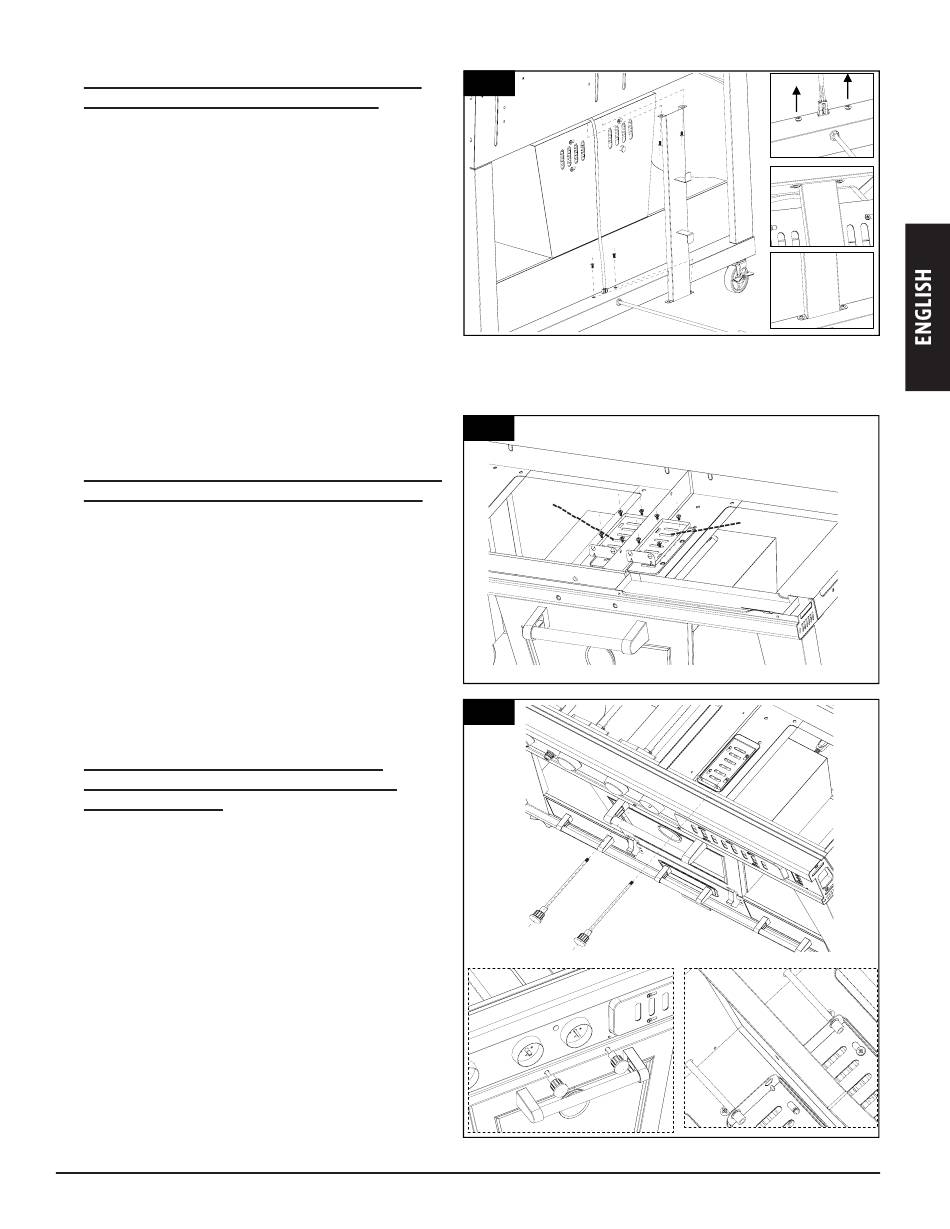

21. ATTACH THE ELECTRICAL BACK COVER TO THE
BACK SIDE OF SMOKER CART ASSEMBLY
Parts Required :
1 x Electric Wires Back Cover (#41)
1 x Cart Assembly
M6x15 mm Screws (#A)
2 x
Installation :
• Unscrew two M6x15 mm Screws (factory pre-
assembled) from Bottom Table. Attach Electrical
Back Cover (#41) to the back side of the Smoker Cart
Assembly, using the screws on top side first, and then
assemble the bottom screws after.
Use: 2 pcs M6x15 mm Screws (#A).
See Fig. 21.
Note: Assemble the screws on top side first and then
assemble the bottom screw later.
22. MOUNTING THE SMOKER TOP AIR DAMPERS TO
THE TOP OF THE SMOKER CABINET ASSEMBLY
Parts Required :
2 x Smoker Top Air Dampers (#31)
1 x Smoker Cabinet Assembly (#32)
M5x10 mm Shoulder Bolts (#H)
8 x
Installation :
• Mount Smoker Top Air Damper (#31) to the Smoker
Cabinet Assembly.
Use: 8 pcs M5x10 mm Shoulder bolts (#H)
See Fig. 22.
23. ATTACHING THE SMOKER AIR DAMPERS
PULL HANDLE ASSEMBLY TO THE SMOKER
TOP AIR DAMPERS
Parts Required :
2 x Smoker Air Damper Pull Handle Assembly (#18)
2 x Smoker Top Air Dampers (#31)
Installation :
• Attach two Smoker Air Damper Pull Handel Assembly
(#18) to two Smoker Top Air Dampers (#31)
See Fig. 23.
Fig.21
Fig.22
#31.1 (L)
Fig.23
#31.2(R)
17
