Pit Boss MEMPHIS Instructions Et Recettes page 14

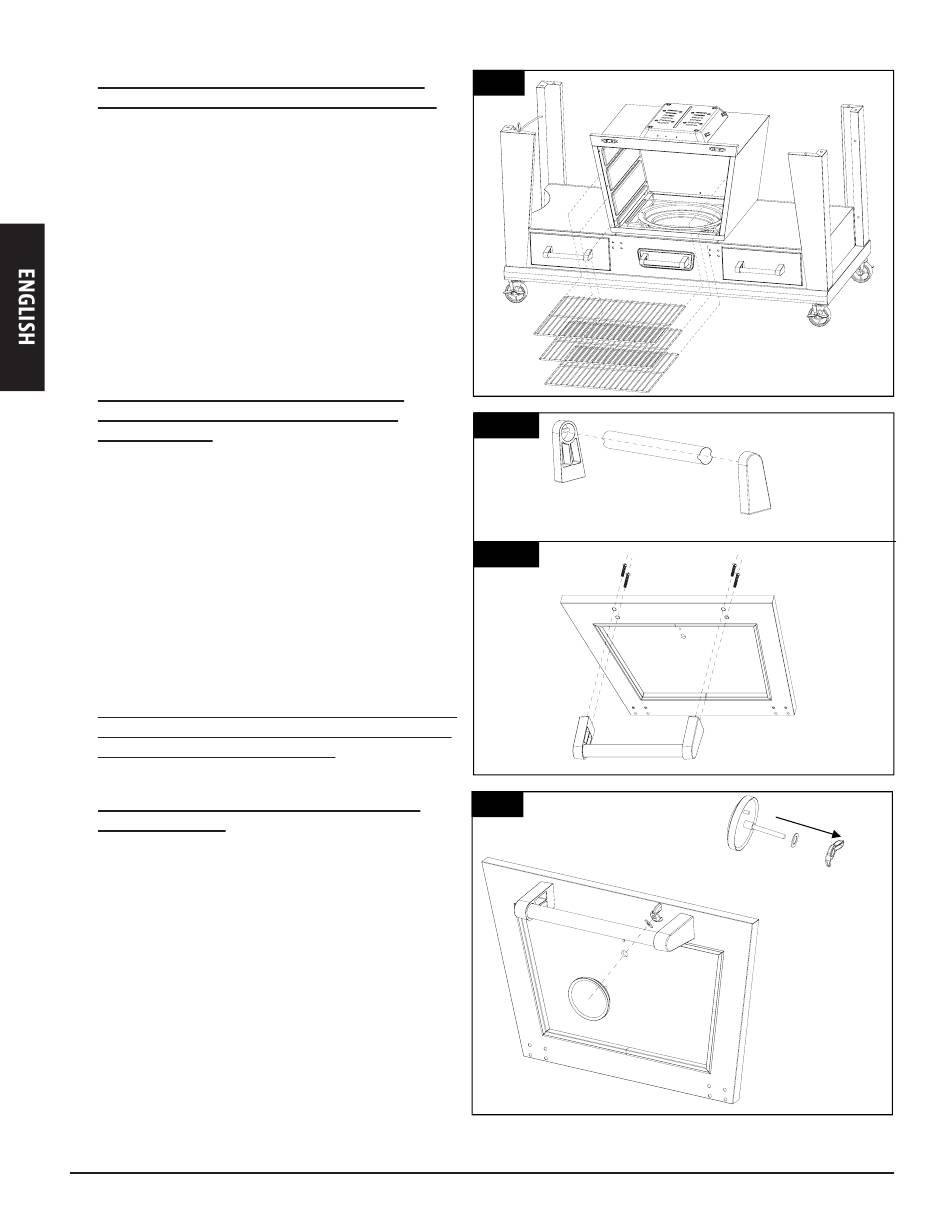

13. SLIDE THREE DIFFERENT SMOKER COOKING
GRIDS INTO THE SMOKER CABINET ASSEMBLY
Parts Required :
1 x Smoker Cooking Grid (Large) (#33)
Smoker Cooking Grid (Medium) (#34)
1 x
Smoker Cooking Grid (Small) (#35)
1 x
1 x Smoker Cabinet Assembly (#32)
Installation :
• Slide Smoker Cooking Grid ( Large) (#33) , Smoker
Cooking Grid (Medium) (#34), and Smoker Cooking Grid
(Small) (#35) into the Smoker Cabinet Assembly (#32)
See Fig. 13.
14. MOUNTING THE SMOKER DOOR HANDLE
AND LARGE HANDLE STAND-OFF TO THE
SMOKER DOOR
Parts Required :
1 x Smoker Door Handle (#38)
2 x Large Handle Standoffs (#7)
1 x Smoker Door (#40)
M6x35 mm Screws (#E)
4 x
Installation :
• Mount one Smoker Door Handle (#38) and 2 Large
Handle Standoffs (#7) to the Smoker Door (#40)
Use: 4 x M6x35 mm Screws (#E)
See Fig. 14.1 & Fig. 14.2.
Note: Slots on both side of Smoker Door Handle must
be inserted into the embossed area on inside area of
Handle Stand-off as Fig, 14.1 shown.
15. INSERT THERMOMETER INTO THE SMOKER
DOOR ASSEMBLY
Parts Required :
1 x Smoker Thermometer (#39)
Smoker door Assembly (#40)
1 x
Note: The Thermometer is supplied with one fiber
washer and one wing nut.
Installation :
• Insert Smoker Thermometer (#39) probe through
the mounting hole in the front of the Smoker Door
Assembly (#40) . From the inside door, place fiber
washer and wing nut onto the mounting thread pole
and tighten by hand and do not over tighten.
See Fig. 15.
14
Fig.13
#33 ---------
#34 --------
#35 ---------
Fig.14.1
#7.1(L) ------
Fig.14.2
Fig.15
------ #7.2(R)
