31. MOUNTING THE RIGHT SIDE TABLE TO RIGHT
SIDE OF MAIN CHAMBER
Parts Required :
1
x
Right Side Table (#10)
1
x
Main Chamber
M6x15 mm Screws (#A)
4
x
Installation :
•
Attach 4 x M6x15 mm Screws onto right side of Main
Chamber and leave about 1/4" out.
•
Hang the Right Side Table (#10) onto those four screws
and then push down to seat on it, then tighten 4 x
M6x15 mm Screws (#A) securely.

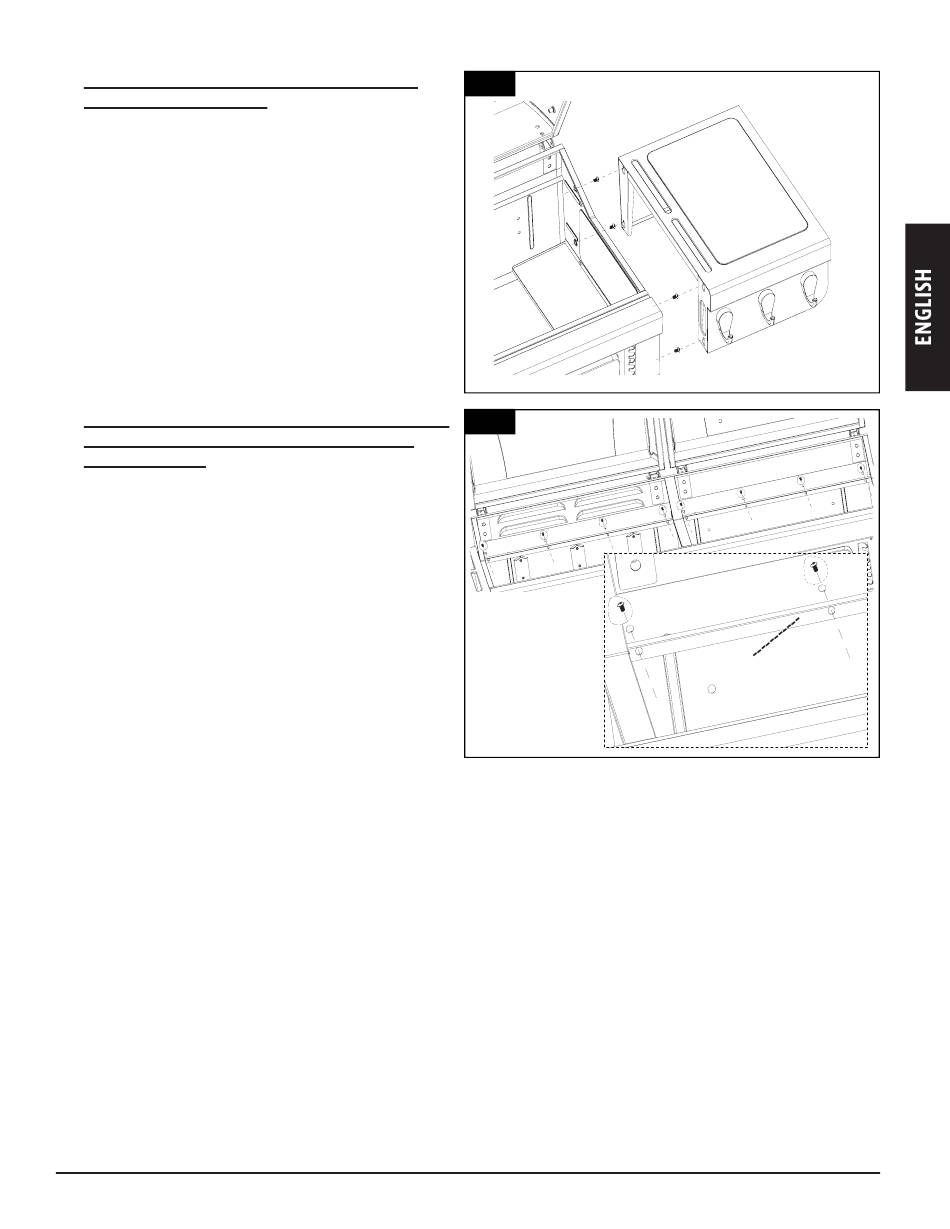

See Fig. 31.
32. MOUNTING THE COOKING GRID BACK SUPPORTS
TO THE BACK PANEL OF GAS AND CHARCOAL
MAIN CHAMBER
Parts Required :
2
x
Cooking Grid Back Supports (#21)
1
x
Main Chamber
M4x10 mm Screws (#F)
8
x
Installation :
•
Attach Cooking Grid Back Support (#21) to the back
panel of Charcoal Main Chamber.
Use: 4 x M4x10 mm Screws (#F)
See Fig. 32.
•
Repeat the same step on Gas Main Chamber.
Fig.31
Fig.32
#21
21
