2. MOUNTING THE RIGHT FRONT SUPPORT LEG
TO LOWER CABINET ASSEMBLY
Parts Required :
1 x Lower Cabinet Assembly (#46)
Right Front Support Leg (#45)
1 x
M6x60 mm Screws (#C)
2 x
1 x M4x10 mm Screws (#F)
Installation :
• Mount Right Front Support Leg (#45) to the Lower
Cabinet Assembly (#46)
Use: 2 x M6x60 mm Screws (#C) & 1 x M4x10mm
Screw (#F)

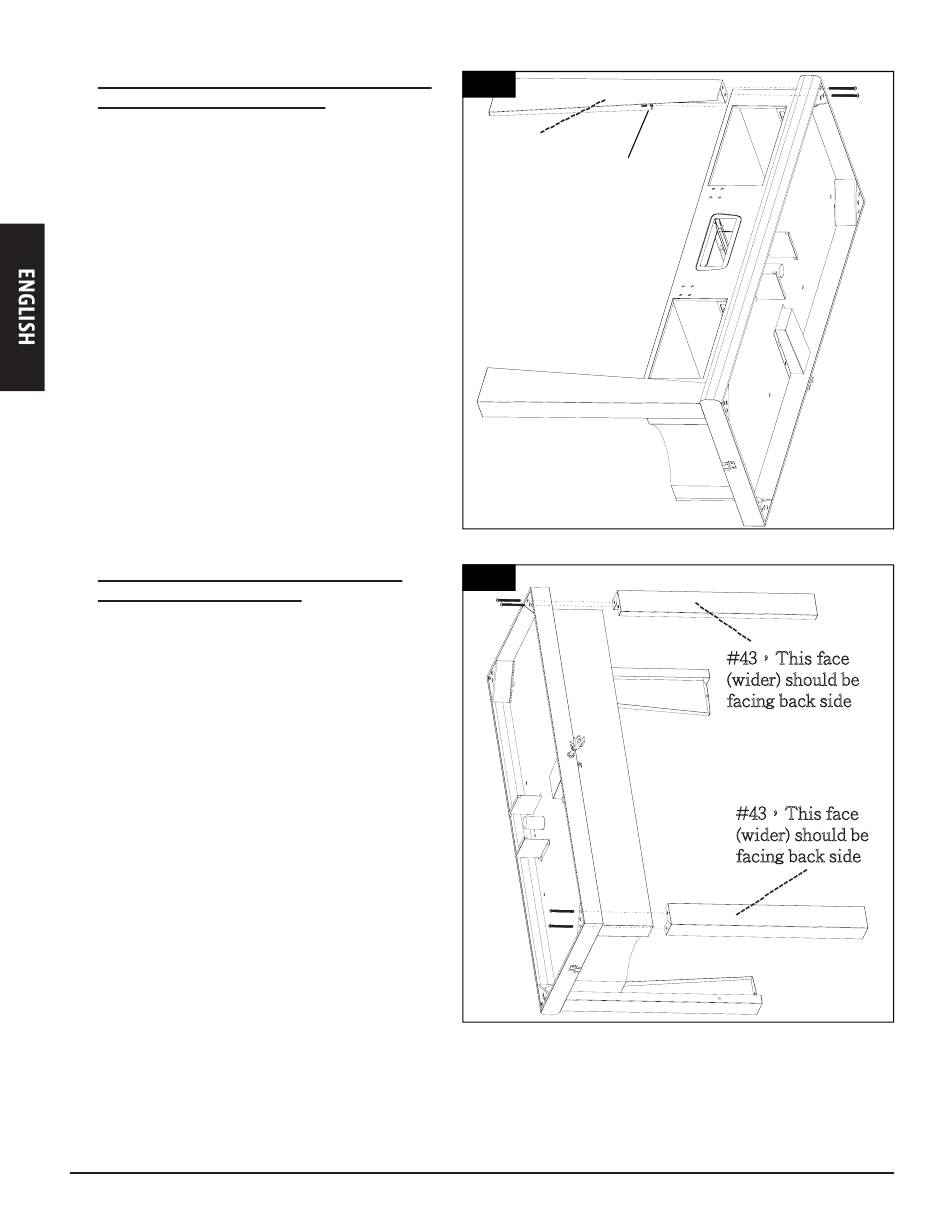

See Fig. 2.
3. MOUNTING THE BACK SUPPORT LEGS TO
LOWER CABINET ASSEMBLY
Parts Required :
Lower Cabinet Assembly (#46)
1 x
1 x Right Rear Support Leg (#43)
1 x Left Rear Support Leg (#43)
4 x M6x60 mm Screws (#C)
Installation :
Mount Right Rear Support Leg (#43) and Left Rear
•
Support Leg (#43) to the Lower Cabinet
Assembly (#46)
Use: 4 x M6x60 mm Screws (#C)
See Fig. 3.
10
Fig.2
#45
M4x10 bolt
Fig.3
#43，This face
(wider) should be
facing back side
#43，This face
(wider) should be
facing back side
