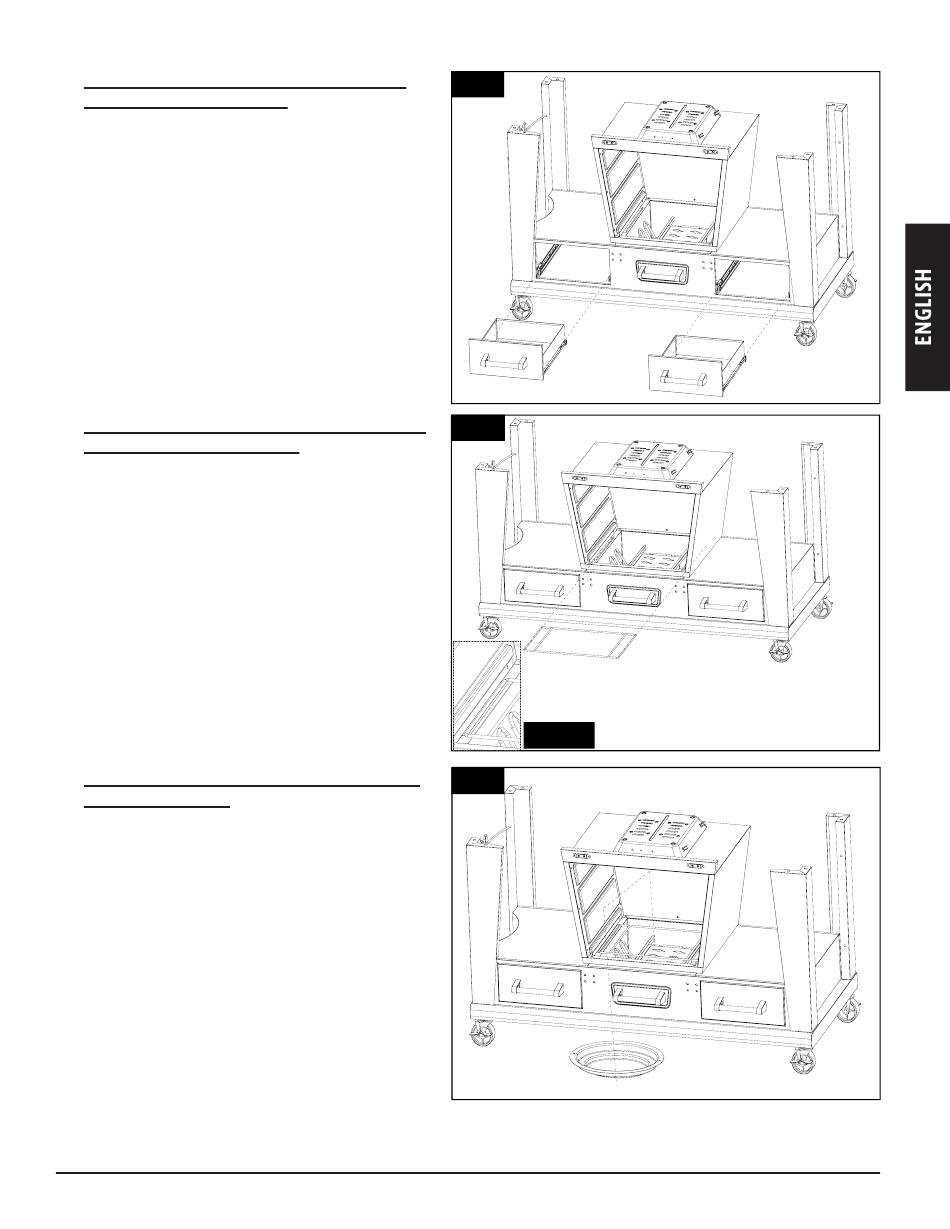

10. SLIDING THE DRAWER ASSEMBLY INTO THE
LOWER CABINET ASSEMBLY
Parts Required :
2
x
Drawer Assembly (#47, #48, & #49)
Lower Cabinet Assembly (#46)
1
x
Installation :
•
Slide Drawer Assembly (#47, #48, & #49) into the
Lower Cabinet Assembly (#46)
See Fig. 10.
11. PLACING THE WATER PAN SUPPORT INTO THE
SMOKER CABINET ASSEMBLY
Parts Required :
1
x
Water Pan Support (#37)
1
x
Smoker Cabinet Assembly (#32)
Installation :
Slide Water Pan Support (#37) into the Smoker
•
Cabinet Assembly (#32)
See Fig. 11 7 Fig. 11.1.
12. PLACING THE WATER PAN INTO THE SMOKER
CABINET ASSEMBLY
Parts Required :
Water Pan (#36)
1
x
Water Pan Support (#37)
1
x
Installation :
•
Place Water Pan (#36) onto the Water Pan
Support (#37) .
See Fig. 12.
Fig.10
Fig.11
Fig.11.1
Fig.12
13
