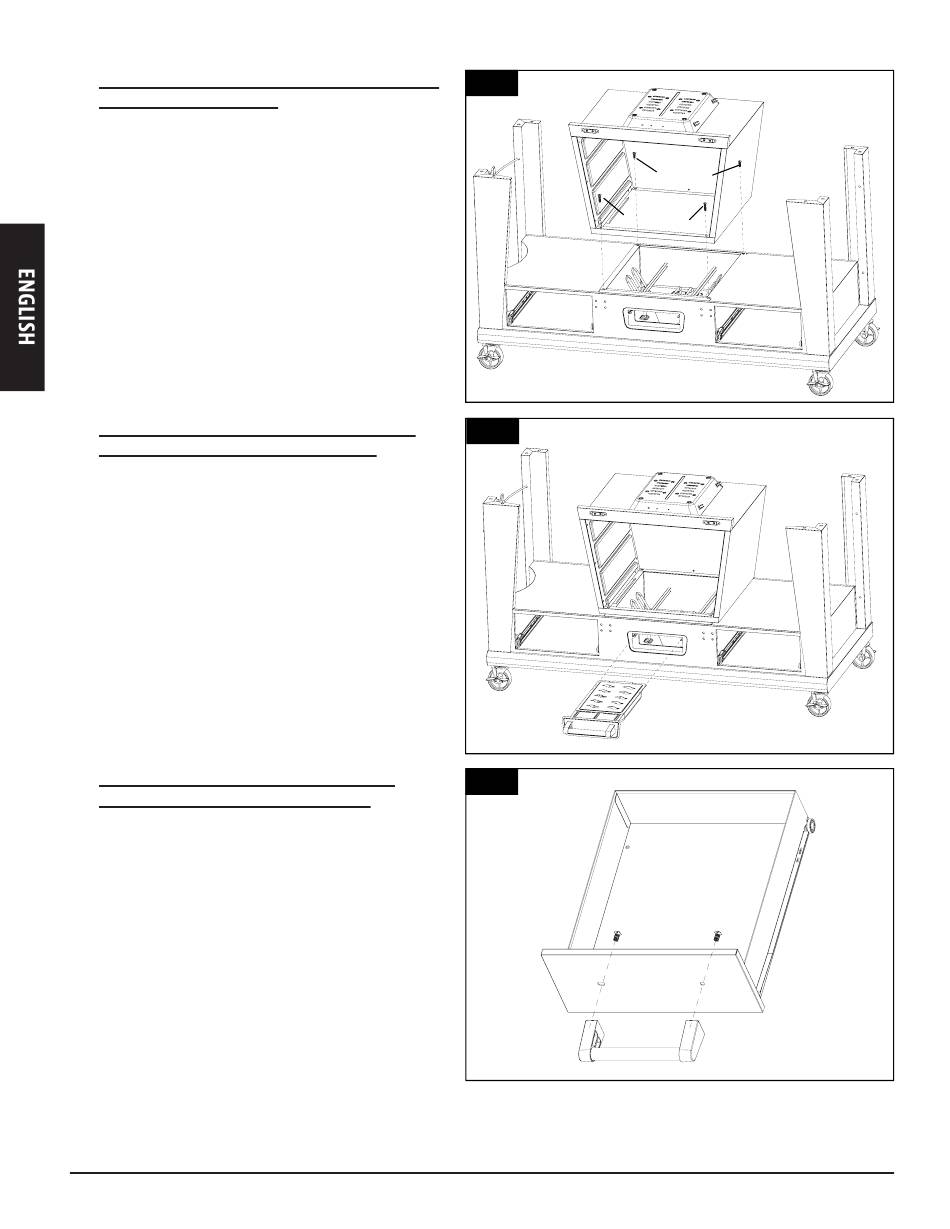

7. ATTACHING THE SMOKER CABINET ASSEMBLY
TO THE LOWER CABINET
Parts Required :
1 x Smoker Cabinet Assembly (#32)
Lower Cabinet Assembly (#46)
1 x
M6x15 mm Screws (#A)
2 x
2 x M6x35 mm Screws (#E)
Installation :
• Attach Smoker Cabinet Assembly (#32) to the Lower
Cabinet Assembly (#46) .
Use: 2 x M6x15 mm Screws (#A) and 2 x M6x35 mm
Screws (#E)
See Fig. 7.
8. SLIDING THE WOOD CHIPS BOX ASSEMBLY
INTO THE LOWER CABINET ASSEMBLY
Parts Required :
1 x Wood Chip Box Assembly (#51)
Lower Cabinet Assembly (#46)
1 x
Installation :
Slide Wood Chip Box Assembly (#51) onto the
•
Wood Chip Box support rails of Lower Cabinet
Assembly (#46)
See Fig. 8.
Note: When removing the Wood Chip Box from the
smoker, lift up on the handle and pull out the Wood
Chip Box.
9. MOUNTING THE DRAWER HANDLE AND
HANDLE STANDOFF TO THE DRAWER
Parts Required :
Drawer Handles (#49)
2 x
Drawer Handle Standoffs (#48)
4 x
2 x Drawers (#47)
4 x M6x10 mm Screws (#D)
Installation :
• Mount one Drawer Handle (#49) and 2 Drawer
Handle Standoff (#48) to the Drawer (#47)
Use: 2 x M6x10 mm Screws (#D)
See Fig. 9.
• Repeat the same step for other drawer.
12
Fig.7
M6x35 bolt
Fig.8
Fig.9
#48-1(L) -----
M6x15 bolt
----- #48-2(R)
