47. MOUNTING THE LID HANDLES AND LID HANDLE
STANDOFFS TO BOTH GAS AND CHARCOAL LIDS
Part Required :
2
x
Lid Handles (#6)
Large Handle Standoffs (#7)
4
x
1
x
Gas Lid
1
x
Charcoal Lid
8
x
M6x15 mm Screws (#A)
Installation :
•
Attach 2 pcs Lid Handles and 4 pcs Large Handle
Standoffs to the Gas Lid and Charcoal Lid using
8 x M6x15 mm Screws (#A)
See Fig. 47.1
Note: Slots on both side of Lid Handle must be inserted
into the embossed area on inside area of Handle
Standoffs. See Fig. 47.2.
48. MOUNTING THE WIRE HOSE RETAINER TO LEFT
FRONT LEG
Part Required :
1
x
Hose Wire Retainer (pre-assembled on hose)
Left Support Leg (#44)
1
x
1
x
M6x10 mm Screw (#D)
Installation :
•
Attach Hose Wire Retainer to the Left (Front) Support
Leg (#44) .
Use: 1 x M6x10 mm Screw.
See Fig. 48.
49. INSTALL BATTERY INTO LP GAS SPARKER
Part Required :
1
x
AA Battery
Installation :
•
Unscrew (counter clockwise) Sparker Button from the
panel. Insert AA battery with the "+" end facing out as
per Fig. 49.
50. ASSEMBLY OF THE MEMPHIS ULTIMATE GRILL
IS COMPLETED
•
It is highly recommended to wipe the exterior of your
unit clean of debris, dirt, etc., using warm soapy water
and a soft cloth.
•
Remove all advertising and any glue residue.
•
Use a vinegar and water solution to clean the glass on
the smoker. Do not use a glass cleaner as this will leave a
film on the glass, which could bake on.

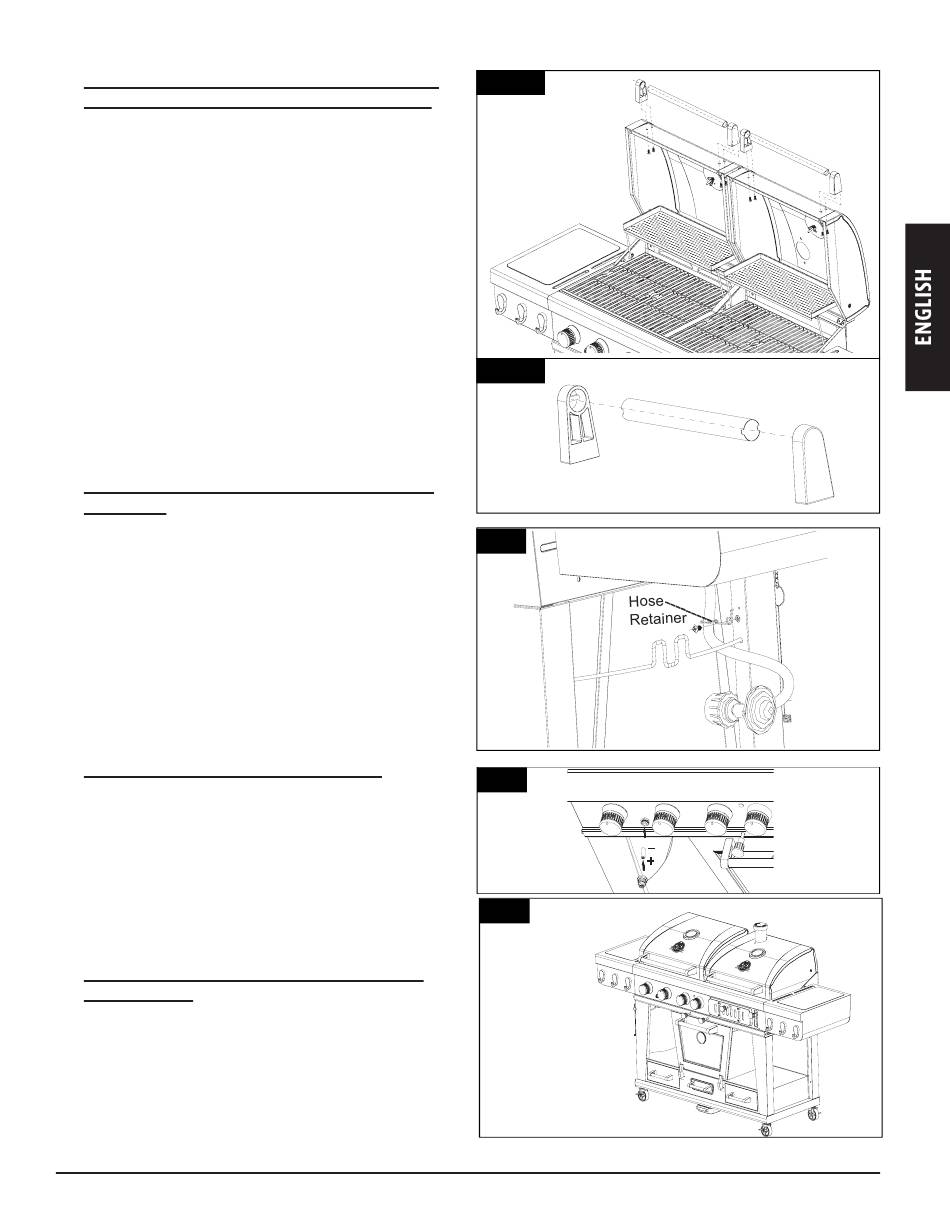

Fig.47.1
Fig.47.2
#7.1(L) --------
Fig.48
Fig.49
_
+
Fig.50
#7.2(R) ------
