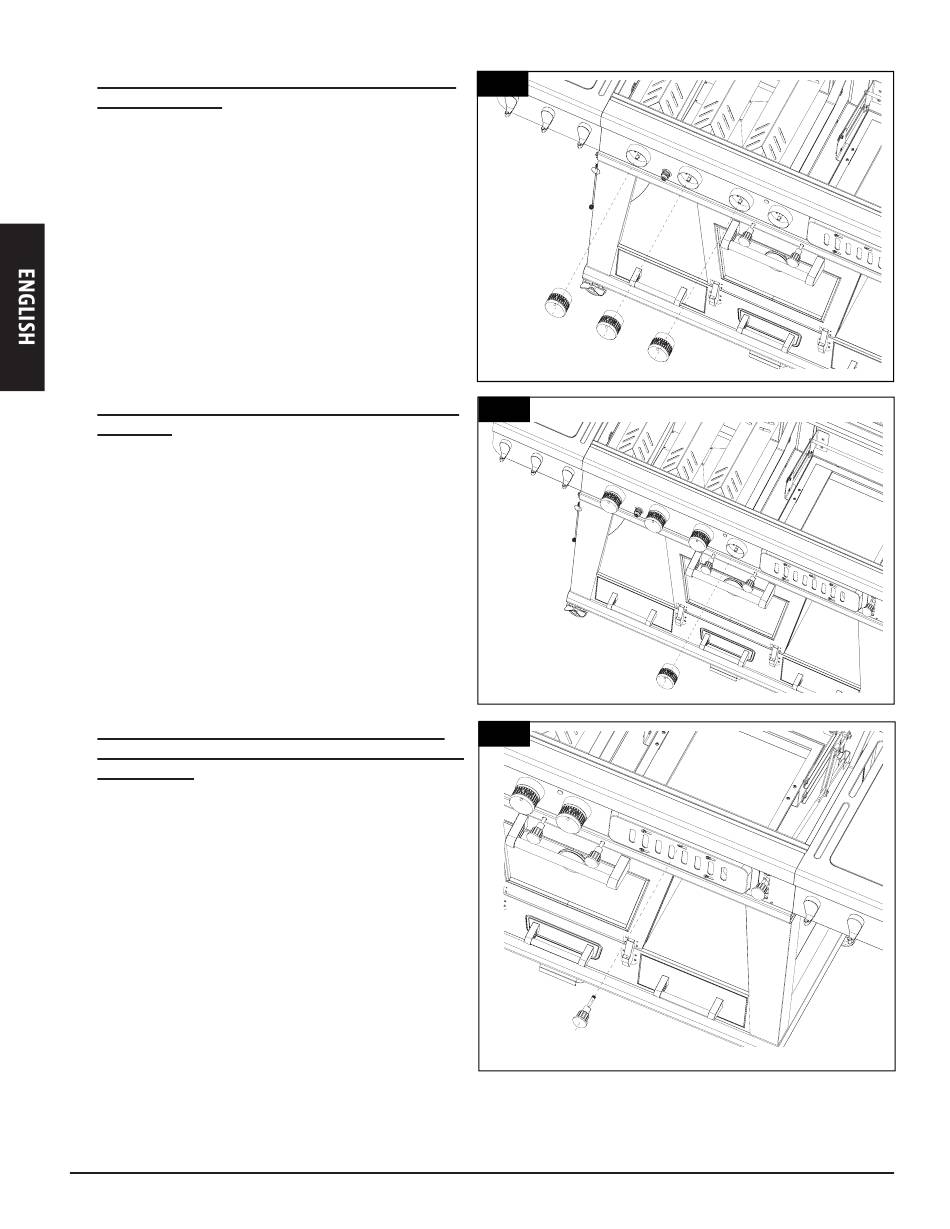

38. PLACING BLACK GAS CONTROL KNOBS INTO THE
GAS VALVE STEM
Parts Required :
3 x Black Gas Control Knobs (#16)
Installation :
Place three black Gas Control Knobs (#16) over the
•
valve stem, making certain to align the flat portion of
the stem, making certain to align the flat portion of
the stem with the flat portion of the knob. Push the
black Gas Control Knob (#16) onto the stem until it is
firmly seated.
See Fig. 38.
39. PLACING SILVER SMOKER CONTROL KNOB ONTO
THE STEM
Parts Required :
1 x Silver Smoker Control Knob (#17)
Installation :
• Place the silver Smoker Control Knob (#17) over the
stem, making certain to align the flat portion of the
stem with the flat portion of the knob. Push the silver
Smoker Control Knob (#17) onto the stem until it is
firmly seated.
See Fig. 39.
40. ATTACHING THE CHARCOAL TRAY AIR DAMPER
HANDLE ASSEMBLY TO THE CHARCOAL CHAMBER
AIR DAMPER
Parts Required :
1 x Charcoal Tray Air Damper Handle Assembly (#19)
1 x Charcoal Chamber Air Damper
Installation :
• Screw the Charcoal Tray Air Damper Handle Assembly
(#19) onto the Charcoal Chamber Air Damper.
See Fig. 40.
24
Fig.38
Fig.39
Fig.40
