d) Screw the stator coupling or the torque stop without pre-
load on the drive flange.
e) Tighten the screws with a 1 Nm [0.74 ft-lb] torque.
f) Tighten the clamping ring with a 2.5 Nm [1.84 ft-lb] torque.
g) Secure the screws against loosening, see chapter
Screw Retention [} 53].

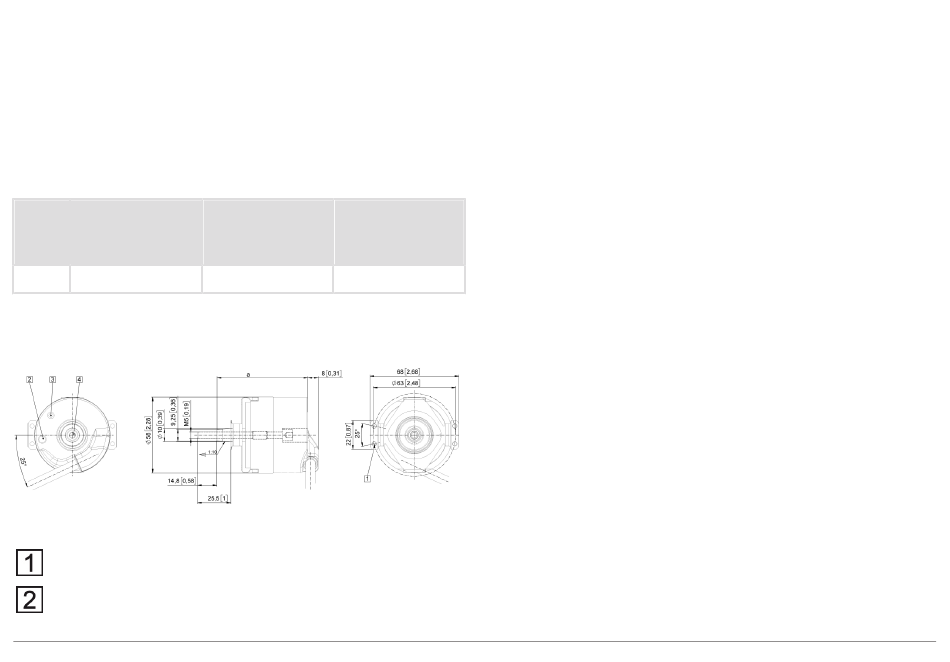

4.1.3.3 Tapered Shaft Encoder
Di- 5834FS
men- Incremental
sion
a 59 [2.32]
Flange Type B with Stator Coupling
For (4x) M3 screw
SW 4
52 - EN
5873FS 5883FS
Singleturn Multiturn
Absolute Absolute
59 [2.32] 70,5 [2.78]
27021597825816203
4.1.3.3.1 Assembly Instructions for Tapered Shaft
Encoders
a) Block the drive shaft for the assembly.
b) Tighten the fastening screw of the tapered shaft with a
3 Nm [2.21 ft-lb] torque.
c) Comply with the maximum permissible shaft offset.
d) Screw the stator coupling or the torque stop without pre-
load on the drive flange.
e) Tighten the screws with a 1 Nm [0.74 ft-lb] torque.
f) Secure the screws against loosening, see chapter
Screw Retention [} 53].
4.1.3.4 Application Side
Requirements for the application side for the mounting of the
encoders.
For hollow shaft encoders
Material: Steel, stainless
