Power level meters
Compteurs de niveau
Nivometers
POWER indicator PHASE indicator
Témoin POWER Témoin PHASE
Aan/uit-indikator (POWER) Faseindikator (PHASE)
SA-W552
LEVEL METER
HEADPHONES jack
prise HEADPHONES
Hoofdtelefoon-aansluiting
(HEADPHONES)
PHASE
SUPER WOOFER
ON/OFF
S.W.LEVEL +/-
RM-U541

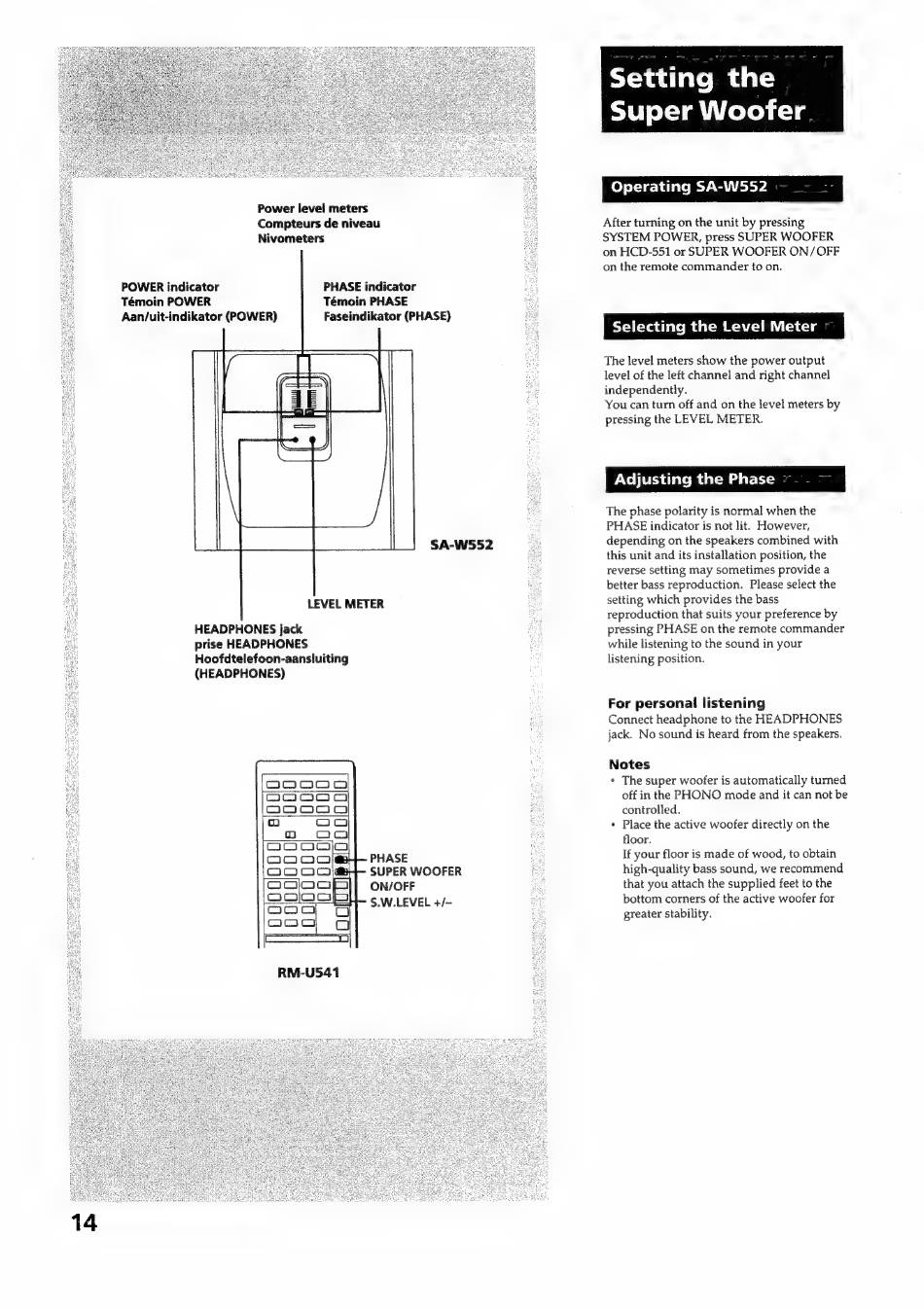

Setting the
Super Woofer
Operating SA-W552
After turning on the unit by pressing
SYSTEM POWER, press SUPER WOOFER
on HCD-551 or SUPER WOOFER ON/OFF
on the remote commander to on.
Selecting the Level Meter
The level meters show the power output
level of the left channel and right channel
independently.
You can turn off and on the level meters by
pressing the LEVEL METER.
Adjusting the Phase
The phase polarity is normal when the
PHASE indicator is not lit. However,
depending on the speakers combined with
this unit and its installation position, the
reverse setting may sometimes provide a
better bass reproduction. Please select the
setting which provides the bass
reproduction that suits your preference by
pressing PHASE on the remote commander
while listening to the sound in your
listening position.
For personal listening
Connect headphone to the HEADPHONES
jack. No sound is heard from the speakers.
Notes
* The super woofer is automatically turned
off in the PHONO mode and it can not be
controlled.
* Place the active woofer directly on the
floor.
If your floor is made of wood, to obtain
high-quality bass sound, we recommend
that you attach the supplied feet to the
bottom corners of the active woofer for
greater stability.
