C.6.2 Attaching the Front Fender and Headlight
Nutted Front Wheel with Round Fender Brace
❶ Position the front fender so the fender bracket is on the inside
of the frame. Align the hole in the bracket to the hole in the
fork crown. Figure 3.11
❷ Align the hole in the headlight base with the hole in the
fork crown.
❸ Place a washer on the screw and insert the screw through the
headlight, fork crown and fender bracket.
❹ Place a washer on the screw.
❺ Place the hex nut on the screw and tighten.
❻ Place the rounded fender braces over the small hole on the
back of the fork dropout.
❼ Insert the small screws through the rounded fender brace and
screw into the fork dropout.
❽ Attach the wheel and firmly fasten the fender in place.
1
Fender
bracket
4
Washer
5 7
Hex nut
6
Round
fender
brace
ASSEMBLY C
Headlight
2
3
Washer Screw
7

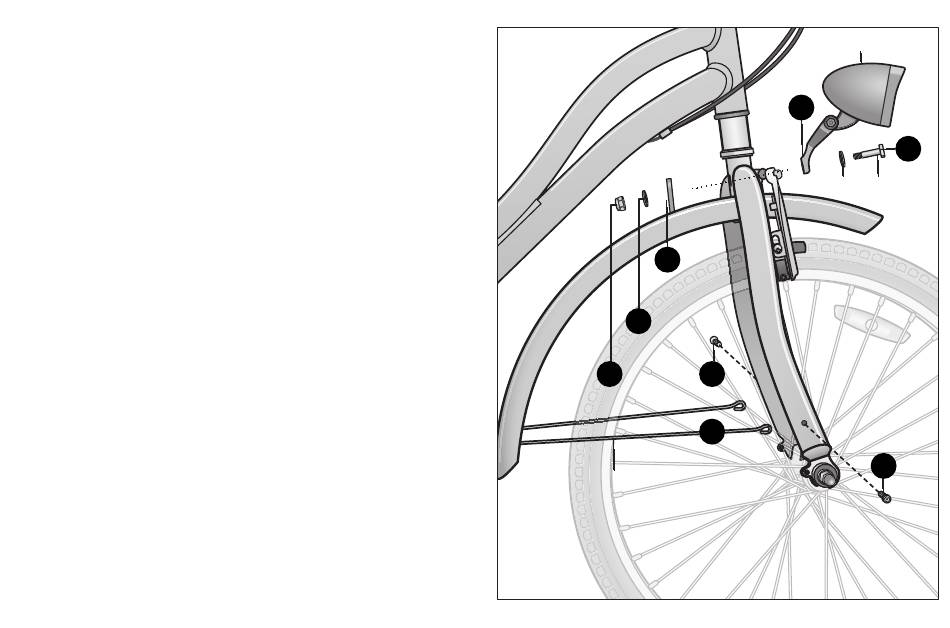

Figure 3.11
