5 Setup

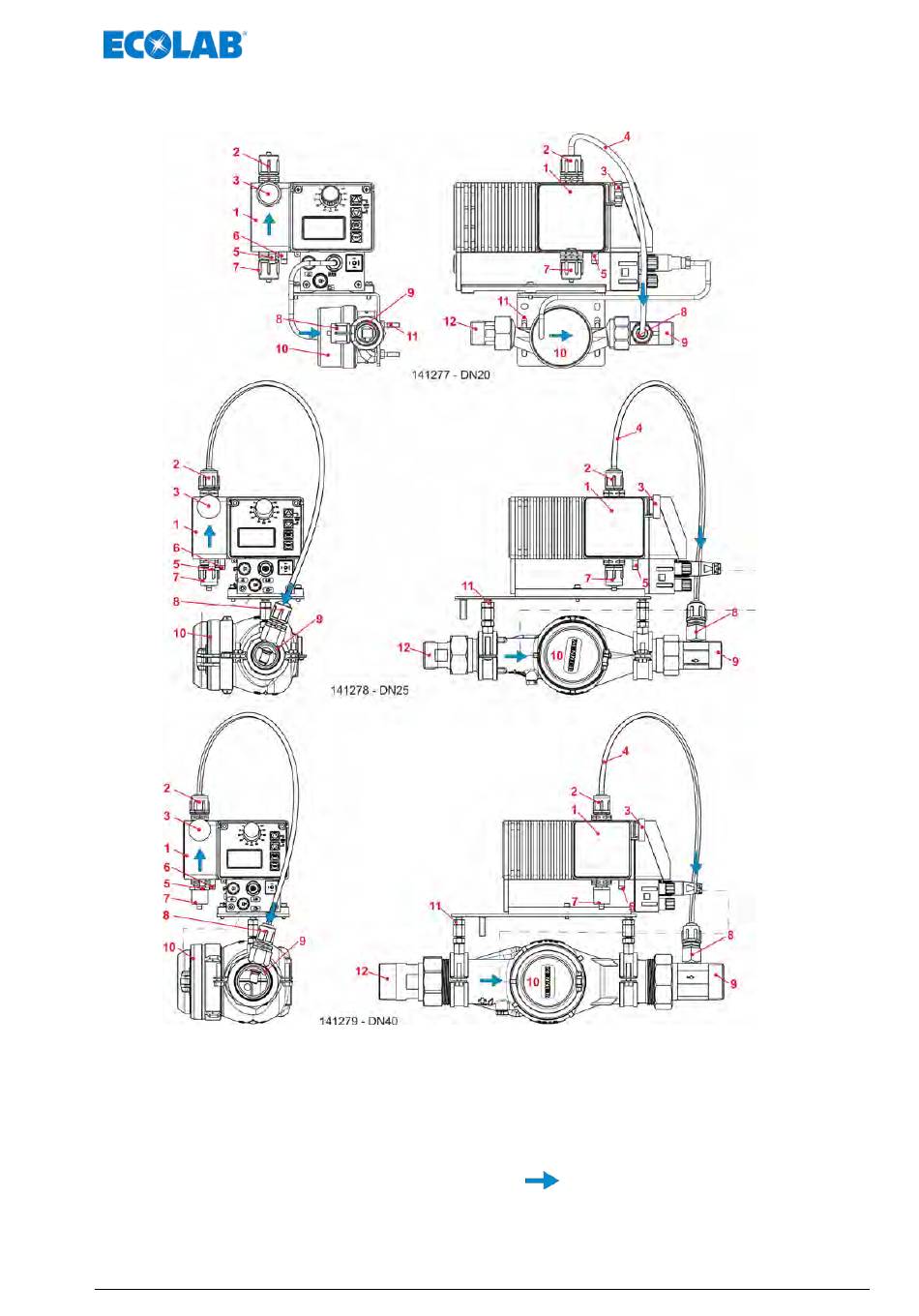

Fig. 3: EMP Compact II, DN20, DN25, DN 40
1 Metering pump
2 Pressure connection
3 Bleed screw
4 Metering hose
5 Bleed connection (return to container!)
6 Membrane breakage drain
7 Suction connection
8 Injection point (metering valve)
9 Water meter screw connection (outlet)
10 Water meter
11 Fixing bracket
12 Water meter screw connection (inlet)
Direction of flow
23
Setup
417101964 Rev. 4-04.2019
