Installation
Hydraulic installation
CAUTION!
When connecting the suction and pressure lines, make sure that the
O-rings (Fig. 10, pos. 5 and pos. 11) are installed on the connections to
obtain the necessary sealing effect.
We recommend that you use a suction lance from our product range.
[417101964 11 Verschleiß-, Ersatzteile und Zubehör] doesn't exist but @y.link.required='true'

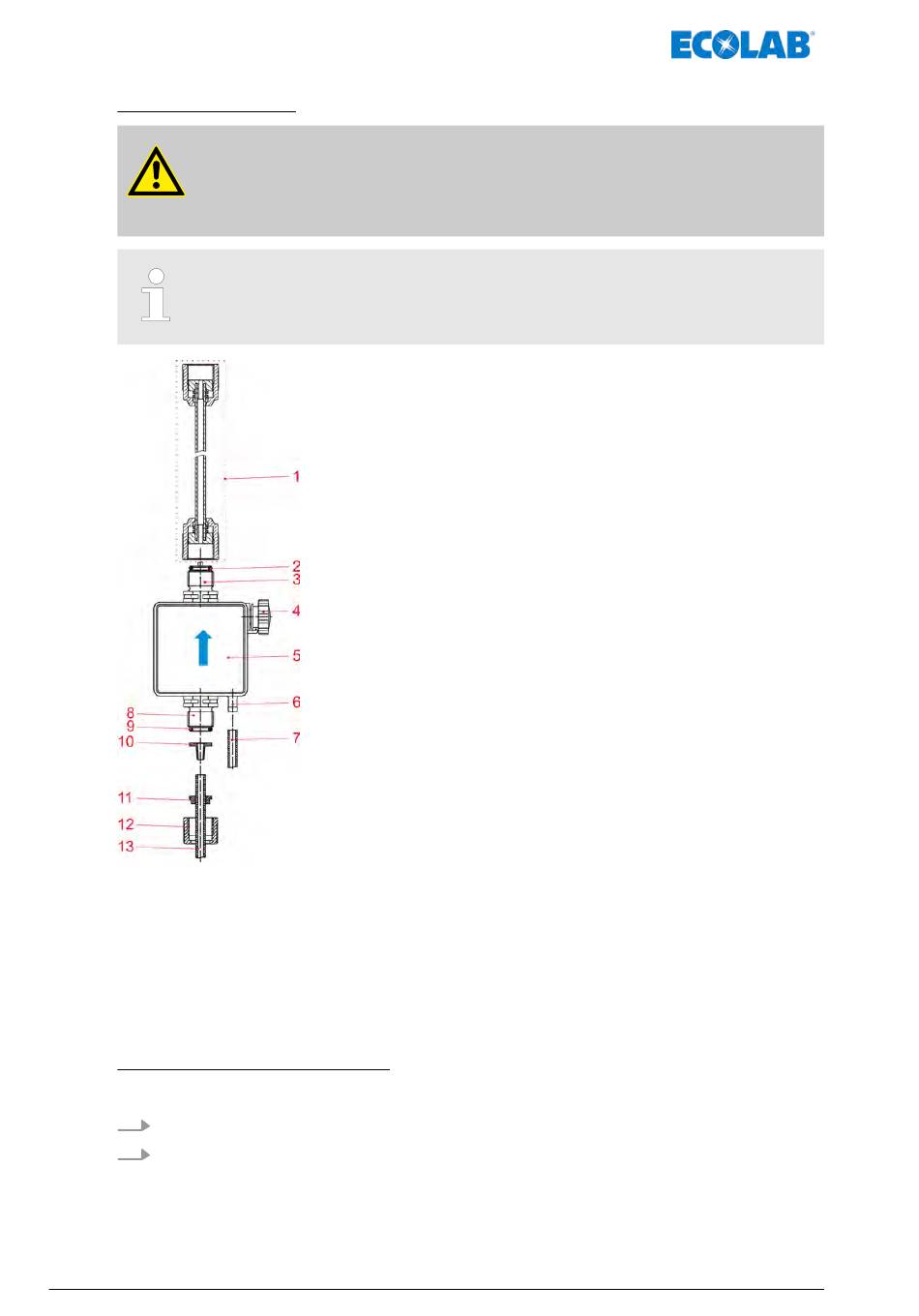

Fig. 10: Hydraulic installation
1 Complete metering line
2 O-ring pressure side (metering)
3 Pressure valve
4 Bleed screw
5 Metering head
6 Bleed connection
7 Ventilation hose (not in the scope of the delivery)
Connection for the metering line
During pipe installation:
1. Place the O-ring (Fig. 10, pos. 2) in the valve groove.
2. Connect the prefabricated metering line to the output of the metering pump and to
the metering valve.
417101964 Rev. 4-04.2019
8 Suction valve
9 O-ring, suction-side
10 Tapered part
11 Clamping part
12 Union nut
13 Metering hose
