AC T I VAT I O N
on again the remote control.
Look out: when you are getting out of range of the machine with the remote
control, the machine will act the same as when the emergency stop is pushed
and the machine stops immediately.
• Function vacuum pump:
When one pushes the button, the function 'vacuum' becomes active. When
you want stop with the function 'vacuum' one must push again this button.

DISPLAY / FAILURES

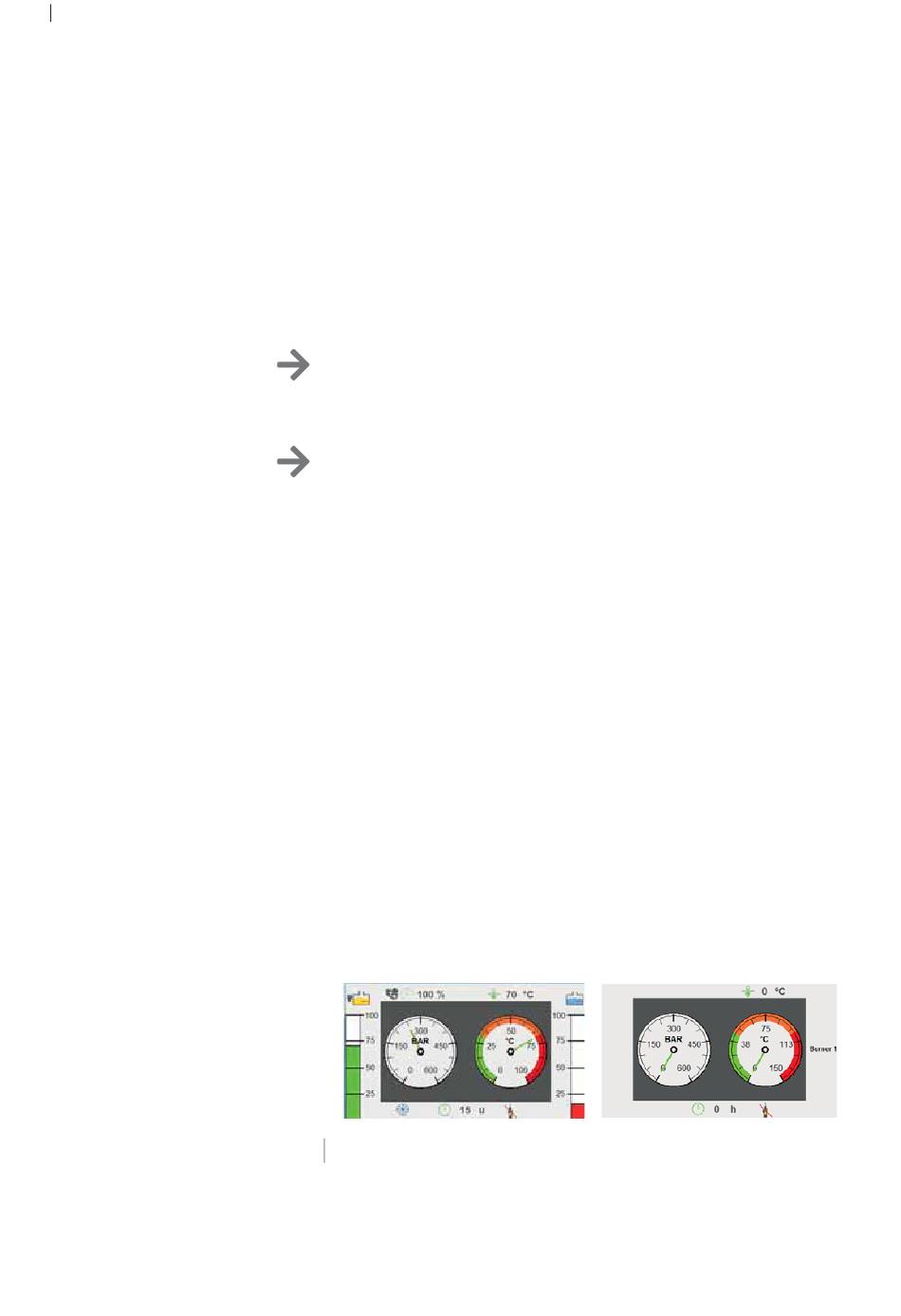

Below on the display you can read the actual working hours of the machine
and you can check if the antifreeze filling function is active. Centrally you can
read the working pressure and the output temperature. Left on top the engine
speed setting will be displayed (100% is similar to the max. adjusted pressure, in
example below: 250 Bar. When the engine speed setting is 50%, the working
pressure will visualize 125 bar).
For info: configuration of your cleaner must have option
steam + option automatic engine speed setting !
Right on top the setting temperature will be displayed.
Setting: 0°C= burner off & 1°C or more= stand- by temperature.
It can be that the actual temperature has a higher value than
the setting temperature, the burner will not work until the
actual temperature is lower than the setting temperature.
• Temperature settings
Determine experimentally which engine speed (spray pressure) and at which
temperature the object best can be cleaned without damaging it. Protein-
containing material, rubber or synthetic material: knob not higher than 50°C.
For the other settings the most diverge materials and/or machines will be
cleaned. Therefore, there are no fixed settings to be displayed.
• High cleaning temperatures
A cleaning temperature of more than 95°C can only be obtained by
reducing the number l/min produced by the high pressure pump. By placing
the throttle lever to the left ( min. pressure, min flow) or by reducing the
engine speed setting on the display one reduces the number of l/min. The
temperature shall increase maximum until the set value is reached. If the
flow is low, the flow switch shall put the burner out of use, to prevent that the
temperature will increase.
On the left & right side you can check the tank levels (fuel & water). When the
level will decrease below 20%, the display will visualize the level in red color.
Above 20%, the filling level will be displayed in green color.
Right below there's an indication if the burner is active or not (through indication
of flame/ strikethrough flame). If you move the control stick 1x up & 1x down, the
burner will turn off. Temperature indication then becomes 0 ° C. The burner
hours are visible on the home screen if pushed on the clock key (see photo at
the bottom right). These burner hours will only be visible at the time of pushing
the (clock) key.
1

Settings with control stick

The screen includes a number of possible operating pages as shown on this
page (depending the selected options) when the control stick is operated.
General: when not operating the control stick, the control unit will automatically
return for 20 seconds to the main screen.
DiBO 22
