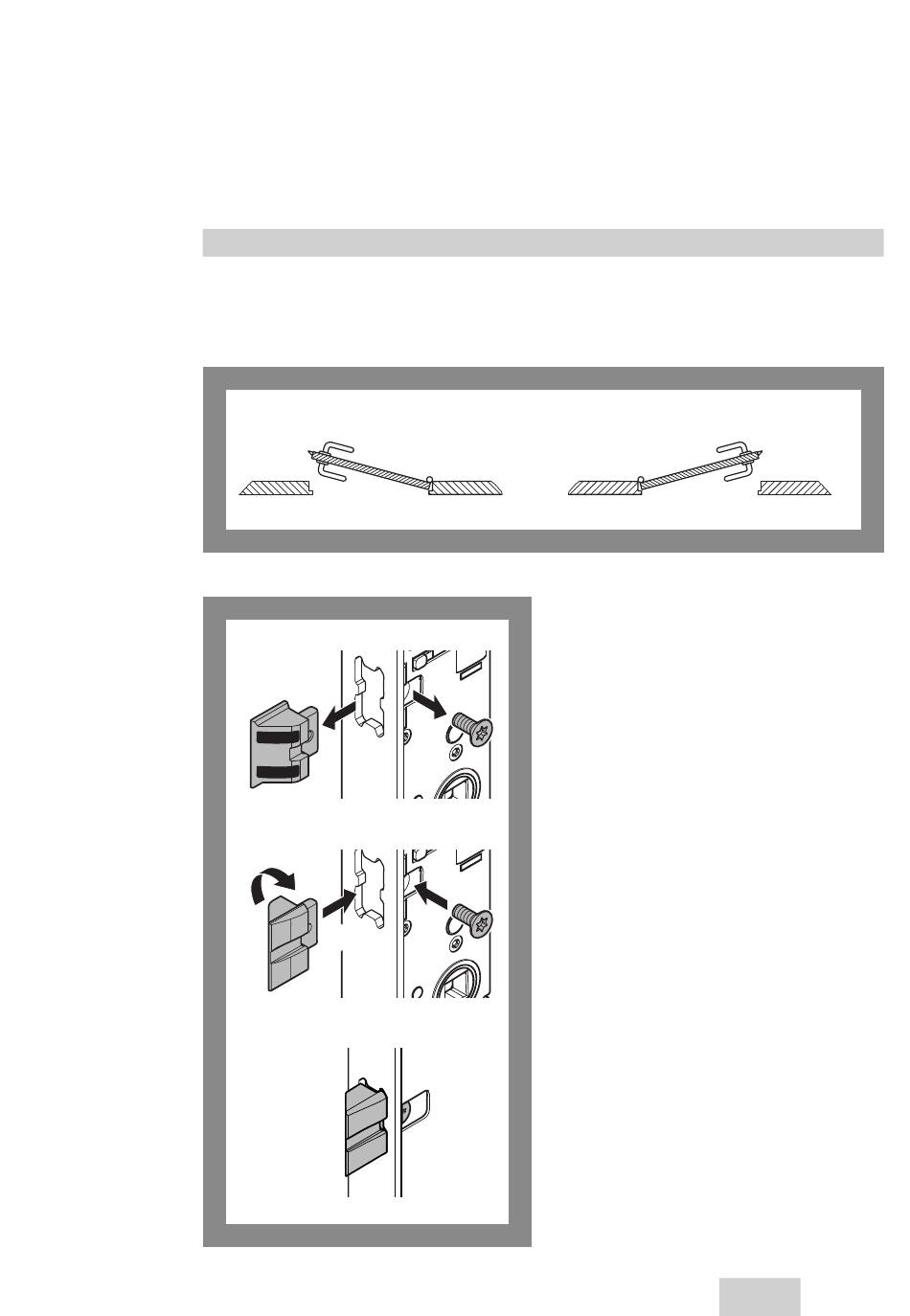

Fig. 5 :
Lock type
according to
DIN left hand and
DIN right hand
Fig. 6 :
Rotate the latch
Safety instructions

Adjust the closing direction

The closing direction of the panic lock can be switched for use in DIN left hand
and DIN right hand doors (Fig. 5). For this purpose, the latch must be rotated
before the lock is installed in the door.
DIN left hand
2.
3.
3.
Requirement
The latch can only be rotated if it is
equipped with a lock with a symmetri-
1.
cal face plate.
Rotate the latch
(Fig. 6
1. Unscrew the locking screw.
2. Pull out the latch.
3. Re-insert the latch rotated 180°.
4. Fix the latch with the locking screw.
 The latch was installed matching
4.
the closing direction of the door.
DIN right hand
