Installing The Profile Cylinder - Assa Abloy OneSystem Instructions De Montage

Typical installa-
tion of a profile
cylinder

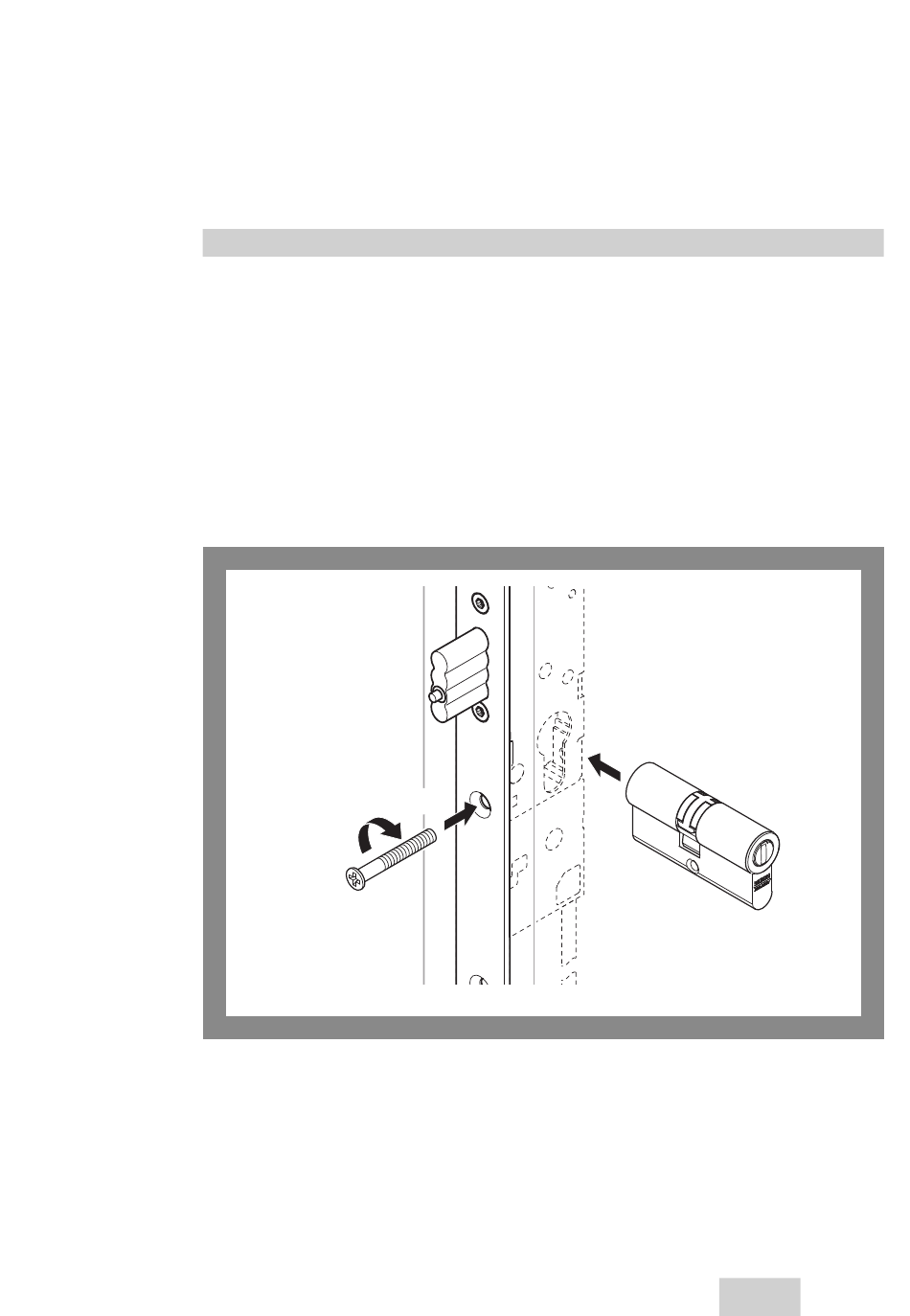

Fig. 9 :
Install a profile
cylinder
Safety instructions

Installing the profile cylinder

The lock must be installed in the door before the profile cylinder can be installed
("Installing the lock", page 53, "Maintenance", page 66). The profile cylinder
must match the door leaf thickness and the door fitting and protrude at least 3
mm from the door fitting when the door is complete.
Install the profile cylinder as described in the accompany instructions. The
following installation steps are typical (Fig. 9):
1. Place profile cylinder in the profile cylinder cutout .
2. Fix it in place with the cylinder fixing screw.
3. Test the key for ease of movement.
 You have installed the profile cylinder and can operate the lock with a key.
2.
1.
EN
57
