Adjust The Closing Direction - Assa Abloy OneSystem Standard-Commercial Notice De Montage

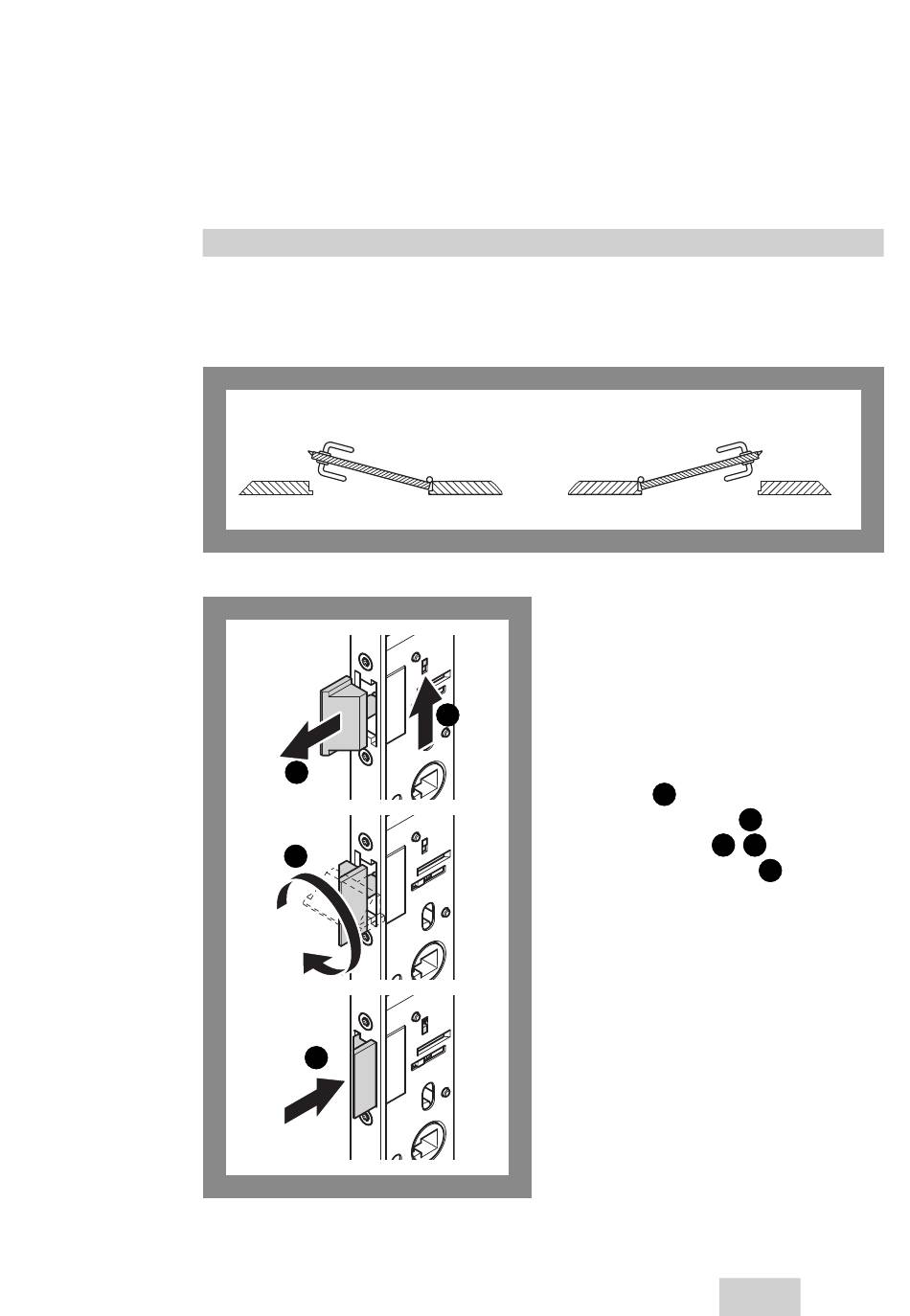

Fig. 4 :
Lock type
according to
DIN left hand and
DIN right hand
Fig. 5 :
Rotate the latch
Installation

Adjust the closing direction

The closing direction of the panic lock can be switched for use in DIN left hand
and DIN right hand doors (Fig. 4). For this purpose, the latch must be rotated
before the lock is installed in the door.
DIN left hand
2
3
180°
4
Requirement
The latch can only be rotated if it is
equipped with a lock with a
symmetrical face plate.
1
Rotate the latch
1 Release the latch by pushing the
arresting mechanism upwards
(Fig. 5 –
2 Pull out the latch (
3 Turn the latch (
4 Slide the latch back (
 The latch was installed matching
the closing direction of the door.
DIN right hand
1
).
2
).
3 4
, ).
5
).
