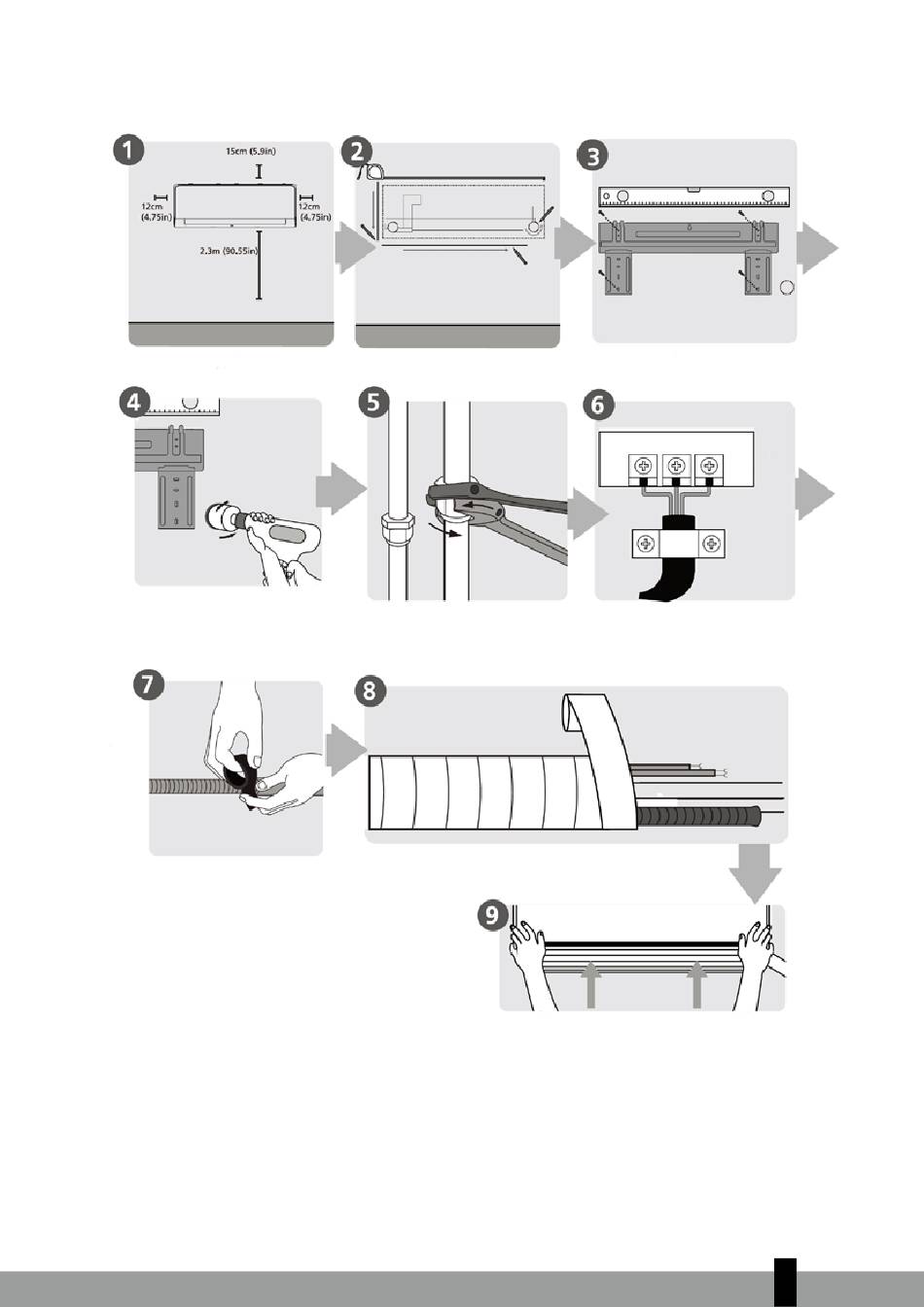

INSTALLATION SUMMARY - INDOOR UNIT

1. Select lnstallation Location
4. Drill Wall Hole
7. Prepare Drain Hose
2. Determine Wall Hole Position
5. Connect Piping
8. Wrap Piping and Cable
(not applicable for some locations in North America )

9. Mount Indoor Unit

3. Attach Mounting Plate
6. Connect Wiring
(not applicable for some locati-
ons in North America )
