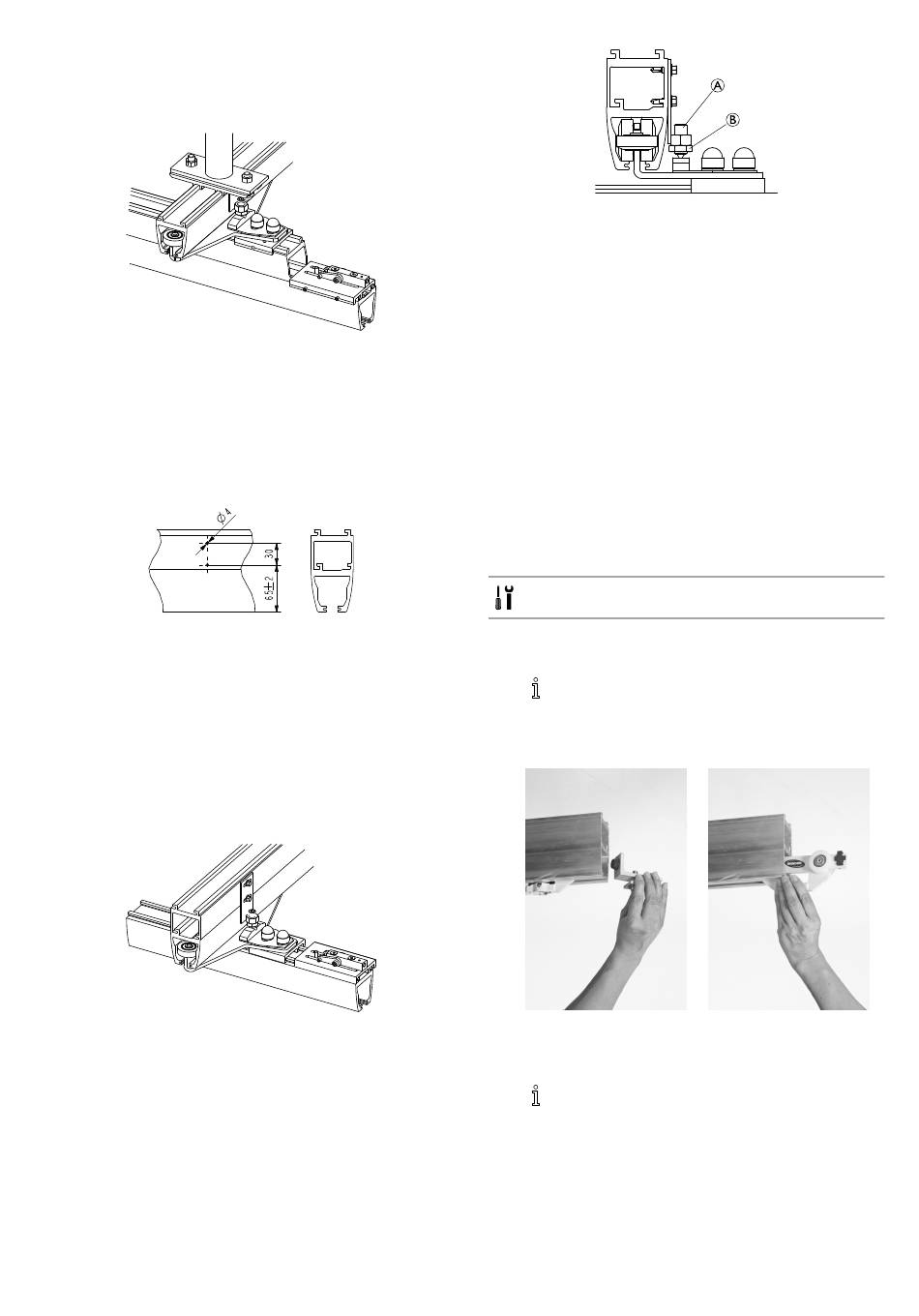

The positioning fixture is mounted to easily position the
traverse rail in proportion to the coupling. The fixture is
mounted on the rail closest to the coupling and is turned
towards the coupling. See drawing.
The positioning fixture for the S-profile rails is partly
mounted in the standard fixture. It is therefore important
to place a standard fixture right in front of the coupling rail.
The one part of the positioning fixture is mounted in the
M10 bolt at the standard ceiling bracket in the same
direction as the quick fixture on the traverse trolley. The
traverse part of the positioning fixture is mounted on the
Quick fixture of the traverse trolley. See drawing.
The positioning fixture for M-/L-profile rails is mounted on
respectively the parallel and the traverse rail. The traverse
part of the positioning fixture is mounted on the quick
fixture of the traverse trolley.
The traverse rail and transit coupling must be coupled
when mounting the parallel rail part of the positioning
fixture. This way it is possible to tick up for correct
position of the fixtures before they are mounted. After
the right position is ticked up, the rails are separated again
before the Ø4 mm holes for the screws are drilled. See
drawing below.
Adjustment of hardness
The positioning fixtures must be adjusted to a hardness
that makes it easy for the coupling to catch the traverse
rail, but at the same time, makes it possible for the rail to
pass the coupling without getting caught by the coupling.
1. If the positioning fixture is adjusted too hard, loosen
the resilient black screw A.
2. If the positioning fixture is too soft, tighten screw A.
3. Tighten lock nut B (M12) after any adjustment.
1586749-E
Adjustment of positioning fixtures
The parallel rail part of the positioning fixture can be
adjusted further by loosening the screws and moving the
fixture horizontally until the rail is right in front of the
coupling.
After adjustment the fixture can be fastened.
Note that there is some play, which must be divided
between both sides of the rail.
3.11 Installing the ceiling hoist to the
rail system
Robin® requires a trolley, guiding the ceiling hoist in the
rail system. Robin® Mover has the trolley built-in and can
be installed directly to the rail system.
3.11.1 Installing Robin®
Tools: 4 mm Allen key; 17 mm socket wrench
1. To install the trolley, remove the end stop that is
attached to the rail system.
In some countries/ local areas, there is a
demand for double securing of the end stops.
If an extra securing screw is installed, remove
this screw first.
2. Insert the trolley into the rail (no matter which way,
as the trolley is symmetric).
3. Re-insert the end stop.
In some countries/ local areas, there is a
demand for double securing of the end stops.
If an extra securing screw is required, install
this screw. See also End Stop, page 11.
Installation
A
B
