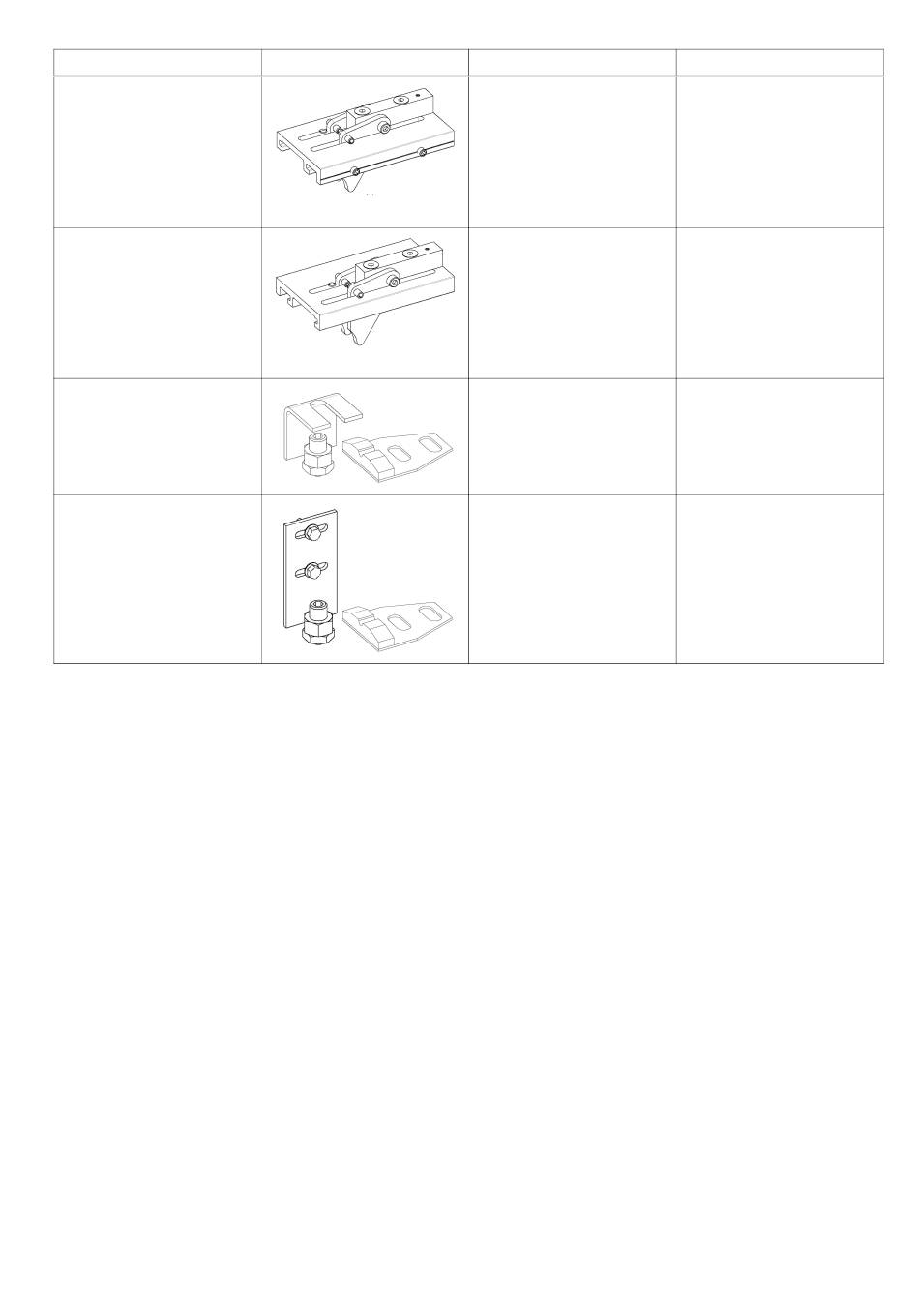

Type
Lock fixture for traverse
profile S
Lock fixture for traverse
profile M/L
Positioning fixtures for
parallel rail S-profile
Positioning fixtures for
parallel rail M/L-profile
1586749-E
Description
To be mounted on the
traverse profile in the
end that is coupled. It is
mounted to ensure that the
traverse rail and coupling
are locked and connected
correctly before room
transfer can be done.
To be mounted on the
traverse profile in the
end that is coupled. It is
mounted to ensure that the
traverse rail and coupling
are locked and connected
correctly before room
transfer can be carried out.
To be mounted on the
parallel rail, close to the
coupling, to position the
traverse rail correctly in
proportion to the coupling.
To be mounted on the
parallel rail, close to the
coupling, to position the
traverse rail correctly in
proportion to the coupling.
Rail system
Info
13
