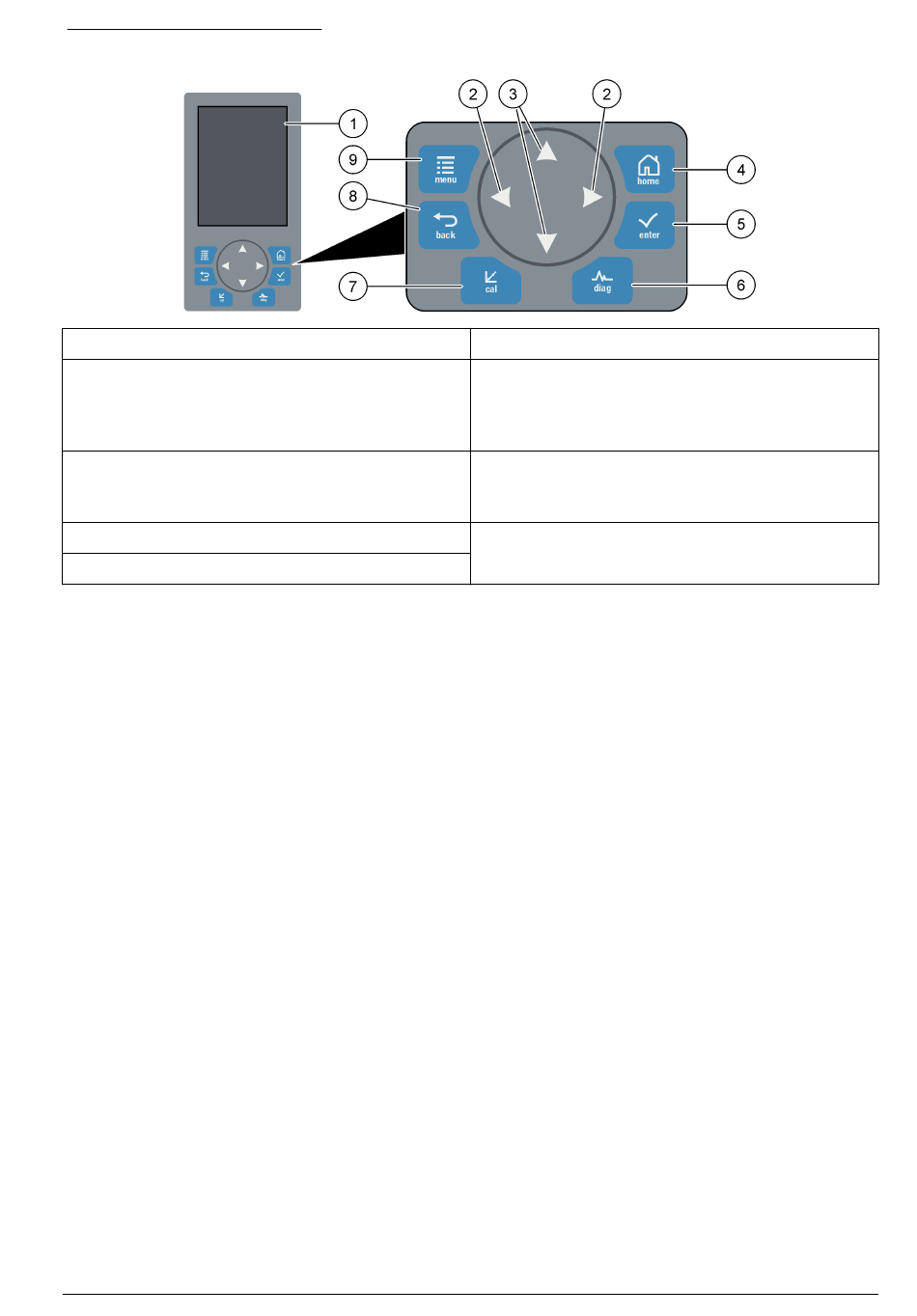

Figure 2 Keypad description
1 Display
2 RIGHT and LEFT arrows: change the
measurement screen and select options.
Refer to Additional measurement screens
on page 7.
3 UP and DOWN arrows: change the channel
shown on the measurement screen, select
options and enter values.
4 Home: shows the measurement screen
5 Enter

3.2 Display description

Figure 3 shows the top half of the measurement screen. The top half of the measurement screen
shows the status of the analyzer and the sodium concentration for one channel. To change the
channel shown, push the UP or DOWN arrow. To show more than one channel, push the RIGHT
arrow.
The background color of the display changes to show the status of the analyzer. Refer to
show the active errors, warnings and reminders, push diag and select DIAGNOSTICS.
Figure 4 shows the bottom half of the measurement screen. The bottom half of the measurement
screen shows the measurement quality, service status and solution levels.
6 Diag: shows the Diag/Test Menu
7 Cal: shows the Calibrate Menu
8 Back: goes back to the previous screen
9 Menu: shows the main menu
Table 1. To
