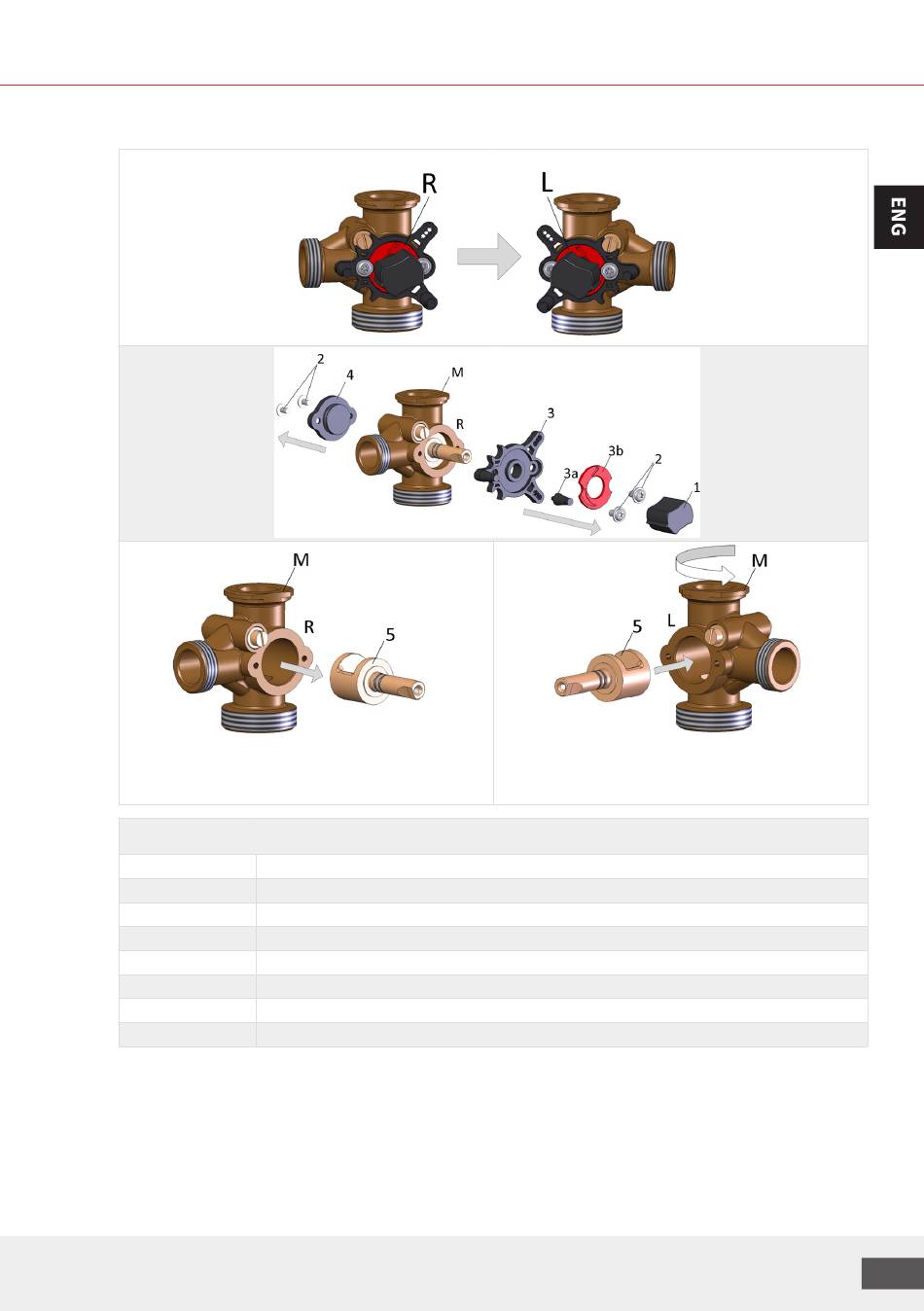

3.2.4 Mixer conversion from right-hand to left-hand model (in MC variants)
Removal device 1
Removal device 2
M
1
2
3
3a
3b
4
5
Note:
It is not necessary to convert the bypass. Please observe the corresponding setting of the shaft
during installation (for the flat area at the shaft end see Chap. 3.2.3).
The mixer must then be checked for leak tightness.
(for further installation steps:
see Removal 1 in reverse order)
Legend for the components
Mixer housing with bypass (as right-hand or left-hand version)
4x LFS 10.9 Torx M5x8 lens head screw
We reserve the right to change designs and technical specifications of our products.
Installation 1
Rotating handle
Front cover with O-ring
Spindle
Scale
Rear cover with O-ring
Mixer insert with shaft
