Software description
7.2.4.4.2 Tunnel 1 & 2

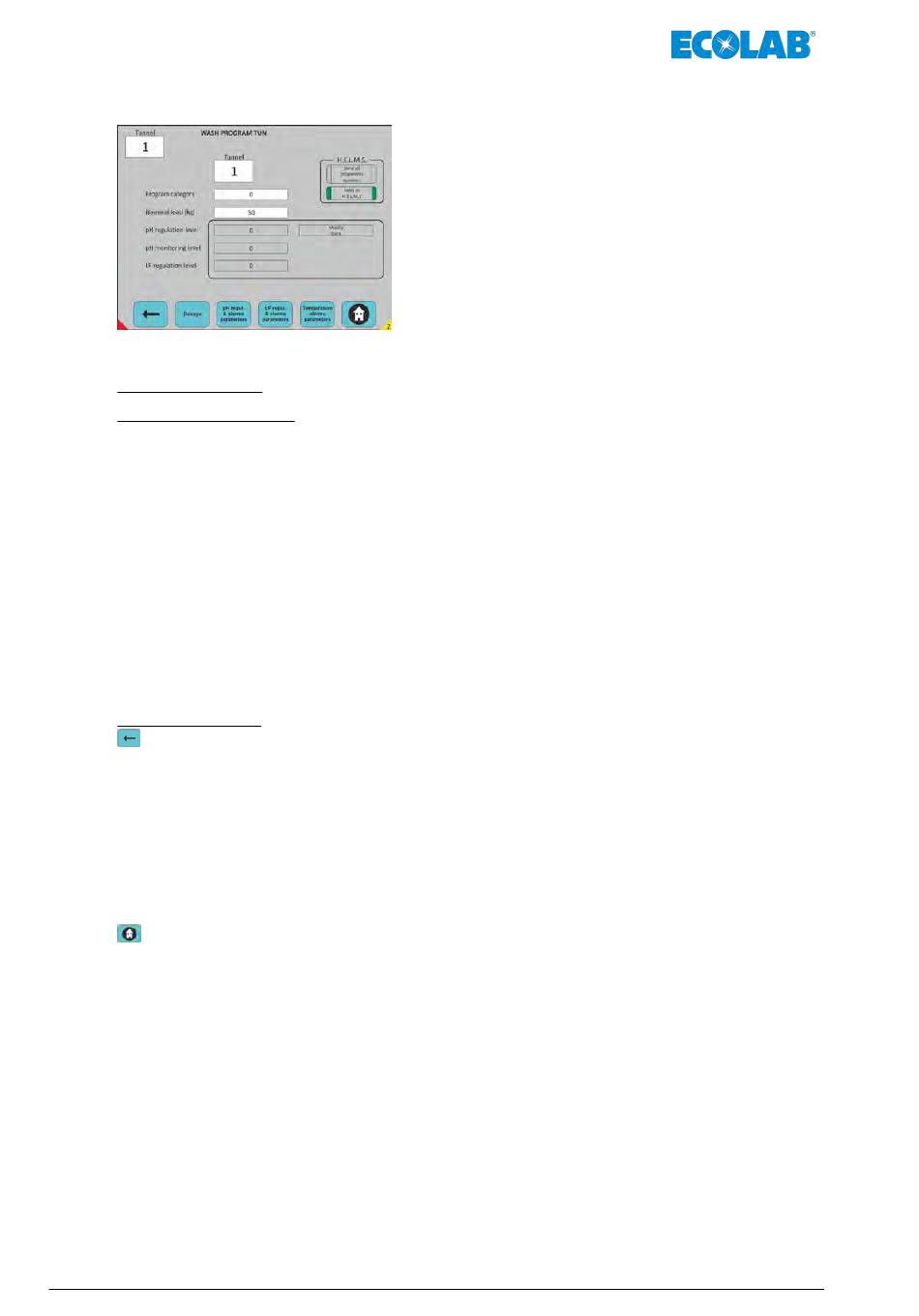

Fig. 60: Configuration -> Dosing Programm -> Tunnel 1 & 2
Select the Tunnel
Select Tunnel number:
n Select program number
n Program category
n Nominal load: therotical weight of the concerned program
n pH regulation level: (1-2-3) regulation and alarm
n pH monitoring level: alarm only
n LF regulation level: regulation and alarm
n Send all programs to HELMS: up dating of all Tunnel's programs in Helms Send to
HELMS: up dating of the selected program into Helms
n Modify data
n Selection and activation of each push button in green
n No selection and no activation if each push button in grey
n Choice on any push button to go in the request mode
Available Menue:
Back to Dosing Program:
see chapter Ä Chapter 7.2.4.4 'Dosing Programm' on page 65.
Dosage:
Ä Chapter 7.2.4.4.2.1 'Dosage' on page 71.
see chapter
pH Regulation & alarms parameters:
Ä Chapter 7.2.4.4.2.2 'pH Regulation & alarms parameters' on page 72.
see chapter
LF Regulation & alarms parameters:
Ä Chapter 7.2.4.4.2.3 ' LF Regulation & alarms parameters' on page 72.
see chapter
Temperature & alarms parameters:
see chapter Ä Chapter 7.2.4.4.2.4 'Temperature & alarms parameters' on page 73.
Back to Main Screen:
see chapter Ä Chapter 7.2 'System Start - Main Screen' on page 34.
417101971 Rev. 2-02.2019 70
