2. COMPONENTS PRESENTATION

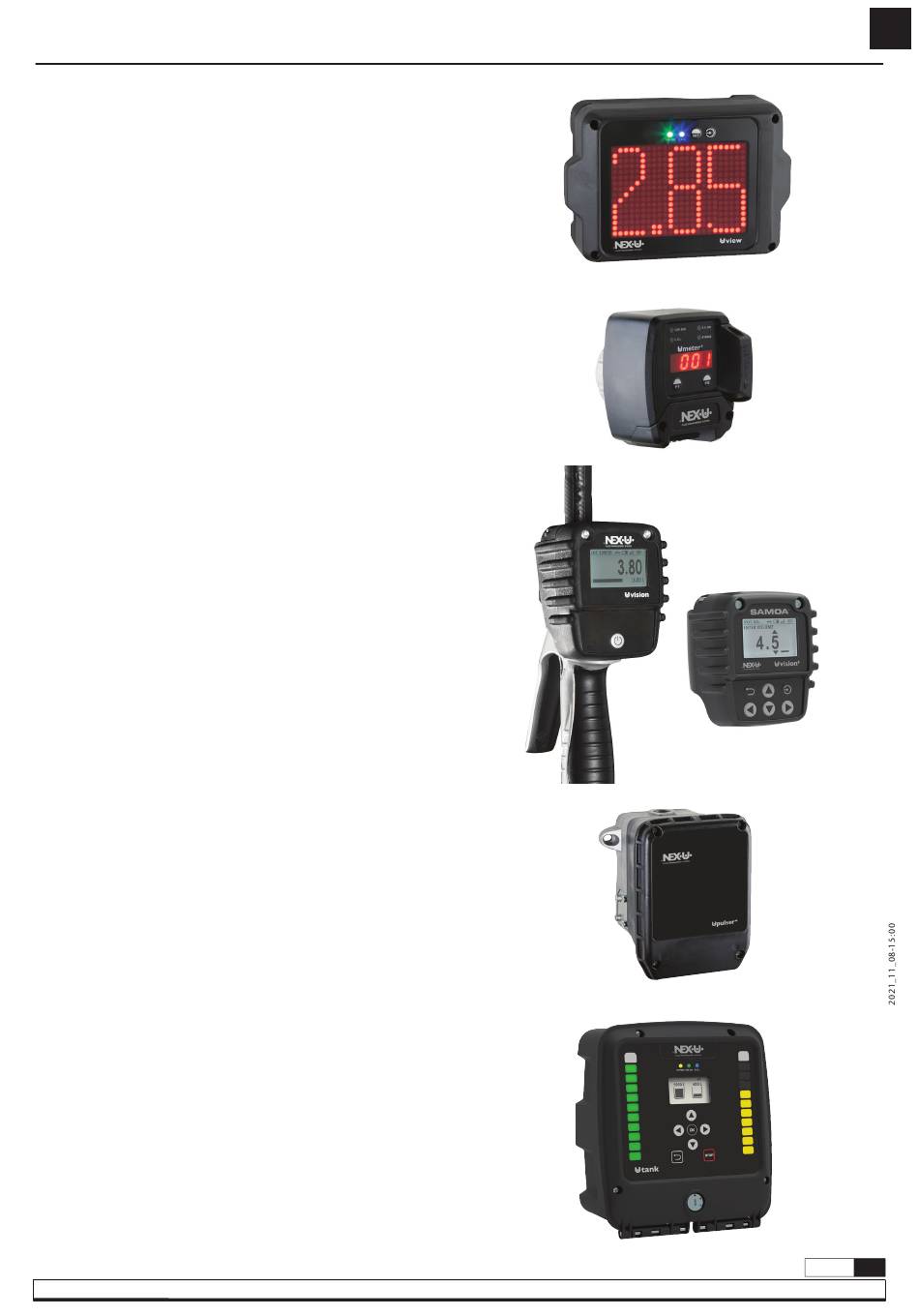

2.5. REMOTE DISPLAY UNIT (UVIEW)

It shows the dispensed quantity when a transaction through certain
UValve / UCount is taking place.
It is used to have a second indication
UValve / UCount display)
A UView can show the quantity dispensed by several UValve / UCount
(not simultaneously).
2.6. INTELIGENT COMPACT PULSE METER
(UMETER, UMETER+)
This compact pulse meter unit is composed by:
• A pulser.
• An electronic board that controls part of the dispense procedure.
• It includes an integrated display that can show the hose reel
number (in stand-by
(when dispensing).
• Additionally, a Bluetooth module can be installed to the device to
be linked to a UVision.

2.7. HAND HELD DISPLAY (UVISION, UVISION+)

This module is a Hand-held display module to fit a SAMOA oil control
handle.
Includes a backlight display connected via Bluetooth
UMeter+ or UCount module.
The UVision has a screen that repeats the measurement that is shown in
the previous devices
The UVision+ can do the same as the UVision and it has an access keypad
that allows introducing work orders.

2.8. LINE PULSE METER (UPULSER, UPULSER+)

The UPulser+ is a high accuracy line pulse meter module combined with
a 24 V solenoid valve and an inlet filter screen. Reduces installation time
and eliminates the risk of leaks when using separate components.
Equipped with fast connection in/out CAN bus terminals. It can only be
connected to a UCount module. This meter does not have a display or
function buttons.
The UPulser is a high accuracy line pulse meter. It is equipped with
connection terminal and valve open indication light. It can only be
connected to a UCount module. This meter does not have a display or
function buttons a display or function buttons and requires a 24 V DC
solenoid valve.

2.9. TANK LEVEL MONITOR MODULE (UTANK)

This module is capable of controlling two tanks. When mounted in a
NEX·U· system it keeps real time inventory and increases operation
®
safety preventing air entering pumps when the tank is empty and
overflow during clean oil delivery and in waste oil storage tanks. It can
also be used to control the general air supply to the pumps and the air
supply for each pump.
The UTank has two independent graphic displays and level bars, each of
them shows the inventory available in each tank. It also has a set-up
keypad for inventory adjustment if required.
