7. MANAGER

7.5 EVENTS

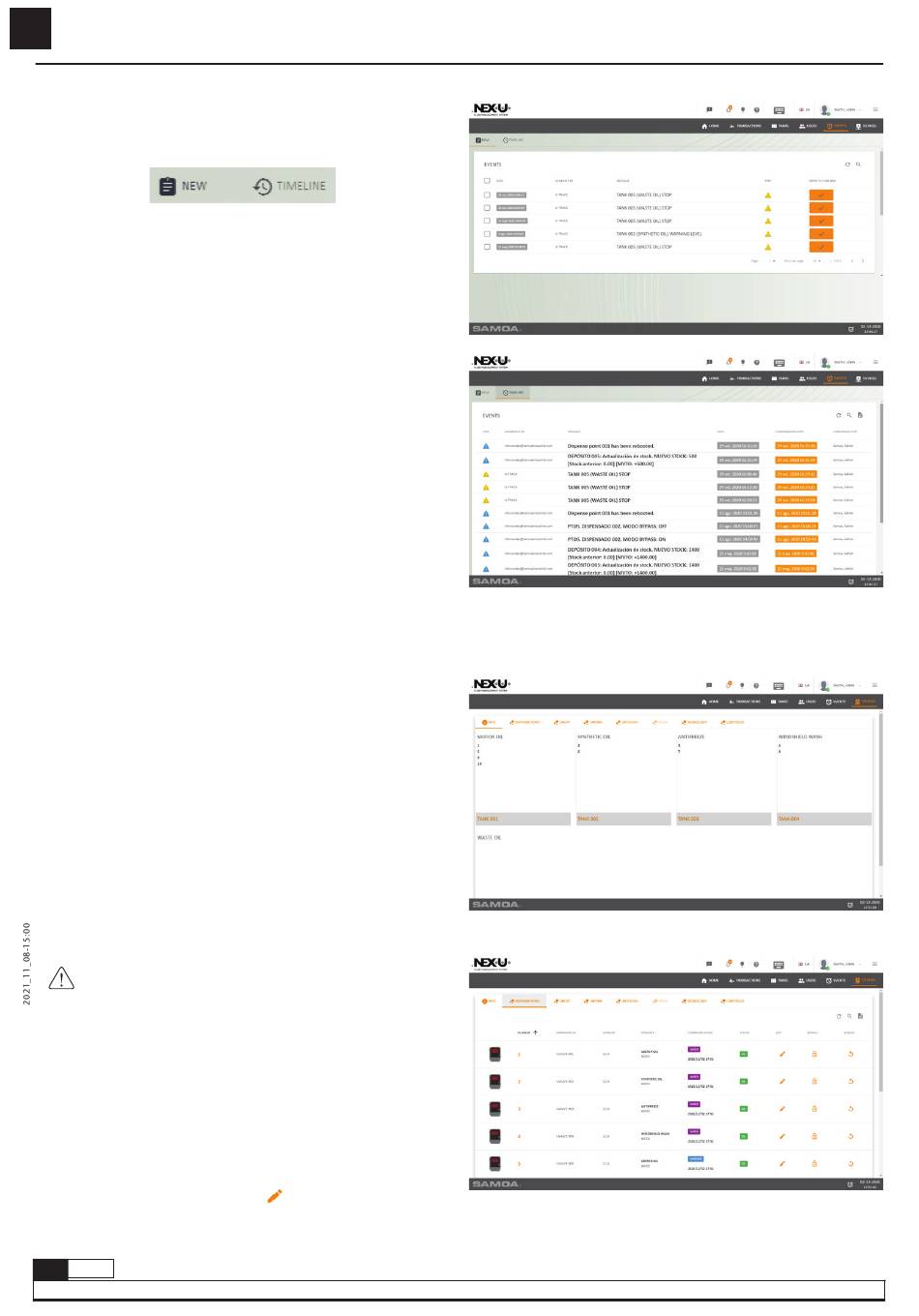

In the upper left part, of this screen you will find two options: New and
Timeline.
If you press "New" you will see all the new events that took place in the
system.
If you press the icon PRESS TO CONFIRM, the transaction will go to
TIMELINE
If you press "Timeline" you will see a timeline of all the events, when they
were confirmed and who confirmed them.

7.6 DEVICES

7.6.1 DISPENSE POINT

This screen shows a complete situation of the connected devices of the
installation. Also in this window you can change some of the parameters.
These are the labels you can find
INFO: It will show a snapshot of the complete installation. It will show
the association between tanks, products and dispensing points.
DISPENSE POINT: It shows the configuration of the dispensing points.
• First column: There is a little picture of the device.
• Second column: The address is shown. It represents the number of
the local parameter.
• Third column: It shows the description of the device. This
description is the one that was set in the configuration menu.
• Fourth column: It shows the loaded device firmware version.
• Fifth column: It shows the product that is delivered (if the device
is a delivery one) or shown (if the device is a display one)
• Sixth column: It shows the way the device is connected. It can be
either wired or Wi-Fi (Wireless) linked.
WARNING: If Wireless is shown, it could not mean that the device
is wireless connected. It means that it the device is communicating
to the UNet through a device that is wireless connected.
A date/time is shown as well. This indicates the last moment in
which right communication was held between the UNet and the
device. If date/time is old (more than a few minutes), it means that
there is something wrong with the communication.
• Seventh column: It shows the status of the device. In the above
screenshot you can see that all of them are OK (fully operational). If
BYPASS is shown, it means that the solenoid valve of that device is
open via software (see Ninth column)
• Eighth column: In this column you can edit some of the device
parameters. If you press the icon
and you will be able to change some of the parameters. For UValve
/ UCount you can change the following parameters.
42
838 861 R. 11/21
SAMOA Industrial, S.A. · Pol. Ind. Porceyo, I-14 · Camino del Fontán, 831 · 33392 - Gijón - Spain · Tel.: +34 985 381 488 · www.samoaindustrial.com
, a pop up window appears
