EN

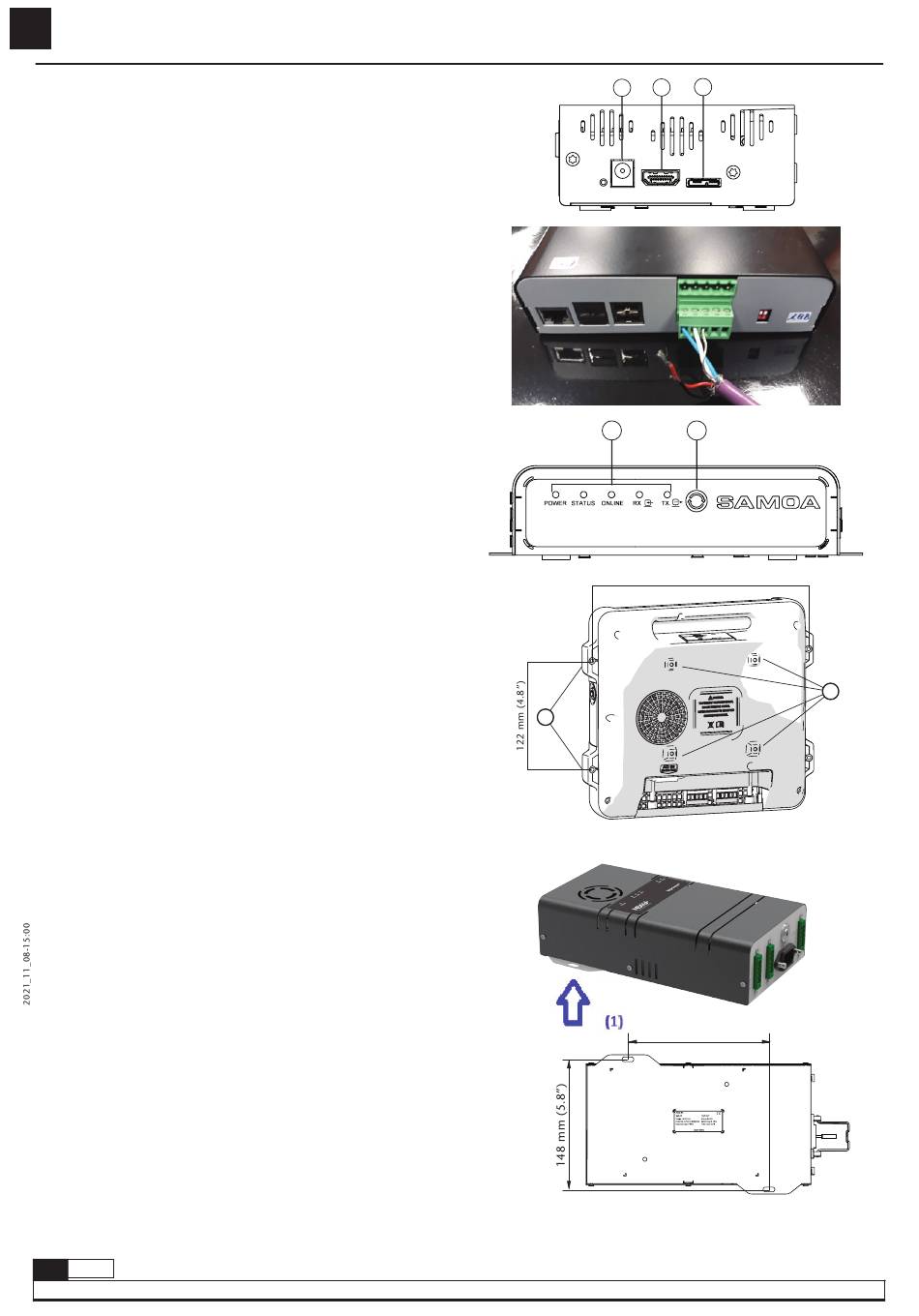

3. INSTALLATION AND CABLING
3.2.10 UNET
Side View
1. Power input. This is a 5 VDC input but the UNet has got a transformer
to convert mains power (110 VAC or 240 VAC) to 5 VDC
2. HDMI connector. Only for service.
3. Micro USB connector. Only for service.
The wiring has to be made as shown in the picture.
If two CANBUS connections have to be made, then connect the upper
terminal in the same way. In this case, the EOL resistor has to be
deactivated (see local parameters chapter)
Regarding LED indications and buttons, UNet label indicates the meaning
of each one.
1. Reset button.
In the event of restarting the UNet, it has to be pressed.
2. Status Indicator.
Power: It indicates if there is power to the unit.
Status: It indicates if CANBUS is OK.
Onine: It indicates if it is ready for working.
RX: Communication Flow to the unit.
TX: Communication Flow from the unit.

3.3 FIXING OF THE ELEMENTS

3.3.1 UDAT / UDAT Power+

The UDat fixation to the elements of the installation can be done through
the 4 VESA 100 holes placed in the back of the case (1).
The attachment holes (2) are used in case of equipment flush installation.

3.3.2 UPOWER / UPOWER+

The unit can be fixed to the wall or others fixtures of the installation by
means of the front fixations (1).
16
838 861 R. 11/21
SAMOA Industrial, S.A. · Pol. Ind. Porceyo, I-14 · Camino del Fontán, 831 · 33392 - Gijón - Spain · Tel.: +34 985 381 488 · www.samoaindustrial.com
3
1 2
2 1
2
260 mm (6.3")
1
