4. SETTING PROCEDURE AND DEFINITION OF THE PARAMETERS

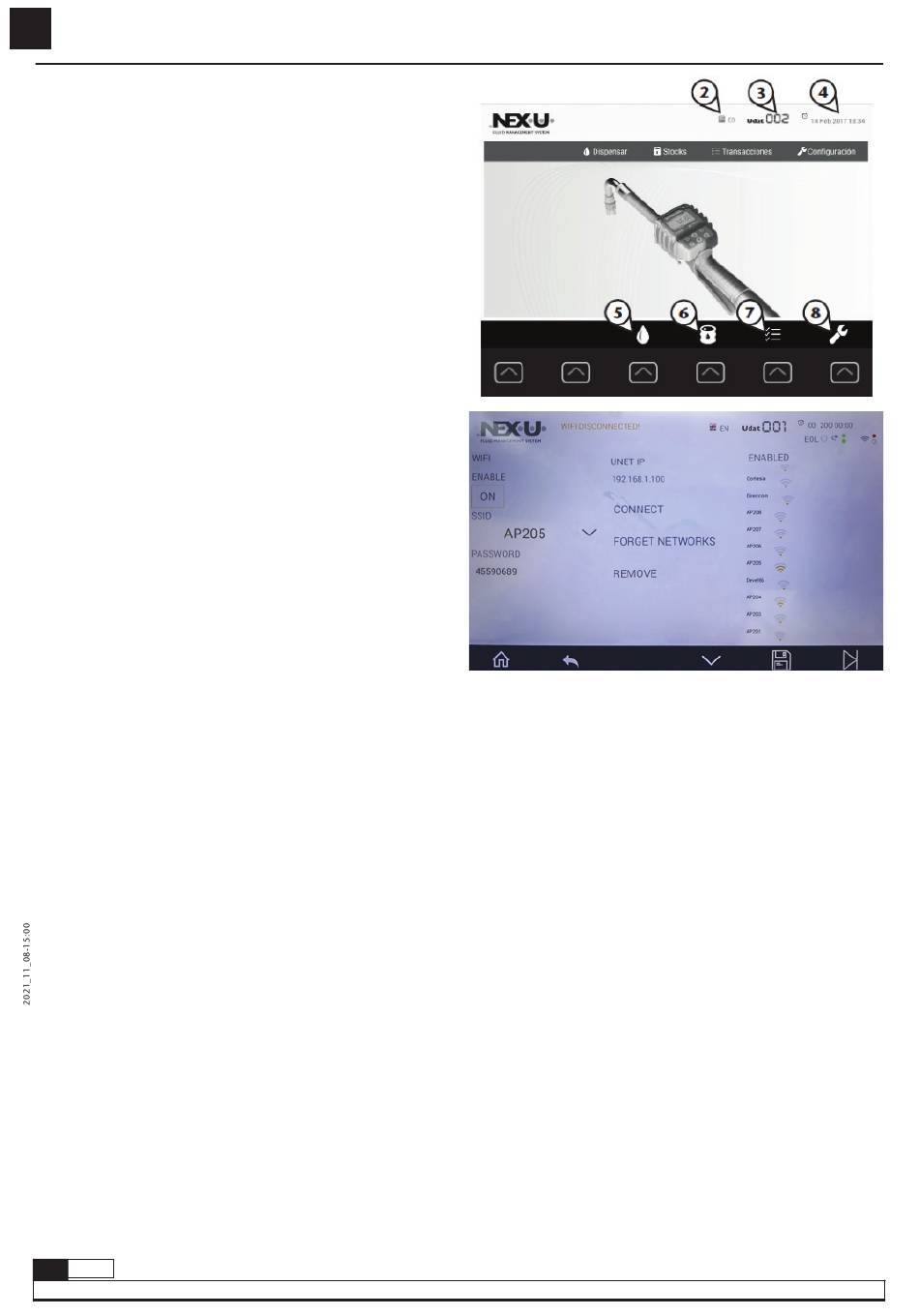

CHOOSE CONFIGURATION (8)
To access the configuration menu, two consecutive access codes are
required. The first one is .... (four dots) and then the system will ask for
another one which is NEXU. The main configuration parameters of the
device are displayed on the screen once the codes have been entered.
In this screen the following parameters have to be set:
Address: UDat / UDat Power+ number starting from No. 1. Two units
cannot have the same address
Filter CAN: This option manages the data flow from / to the UDat /
UDat Power+. If it is set to ON, only data referred to this keypad is
managed. The rest is not managed. If it is set to OFF; all the
communication is managed included the one which is not referred to the
keypad. This carries within a more robust communication but slower. As
a recommendation, please set ON.
EOL: This parameter allows indicating whether the unit is end of line in
the CAN BUS (ON) or it is an intermediate unit (OFF).
Then press SAVE
If the UDat is connected via Wi-Fi
to be made (please contact Samoa Industrial, S.A.)
Go to WIFI and a new screen will appear
Enable: This has to be set to ON
SSID: In the right part of the screen, you will find the available Wi-Fi
networks. Choose the one you want to connect to.
PASSWORD: Insert the password for the network.
UNET IP: Obviously, the Wi-Fi
network in which the UNet is connected. This IP has to be the one that
was supplied by the customer.
The last step is pressing CONNECT. The screen will reboot and the UDAt
will be connected to the WI-Fi
screen the green dots will have to blink).

4.5.4 LOCAL PARAMETERS SETUP ON UCOUNT

Before the unit can operate, a few configuration steps for local parameters
must be accomplished:
1. Connect the power to the unit. It will appear briefly on the display the
current firmware installed and then the hose reel address is shown (by
default "001").
2. Press and hold F1 and F2 buttons until it is shown "SET" in the display.
3. The display shows the message "A" (address) followed by a number
that increases progressively from 001. This number is the hose reel
number linked to the unit. Once that the desired number is shown,
press briefly F2 button. NOTE: If it is needed to restart the hose reel
number to "001", press briefly F1 button.
4. Now the unit shows the message "EoL" (end of line), followed by "0" or
"1". This parameter allows indicating whether the unit is end of line in
the CAN BUS (1) or it is an intermediate unit (0). Change the adjustment
pressing the F1 button briefly and press F2 button to confirm.

4.5.5 LOCAL PARAMETERS SETUP ON UVIEW

Before the unit can operate, a few configuration steps for local parameters
must be accomplished:
1. To Access the configuration menu, press and hold both the SET and
ENTER buttons simultaneously until the display shows "LOCAL SETUP"
2. Then, "ADD" is displayed on the screen to indicate that the local
address can be set. Automatically a counter is displayed. The count is
incremented from one to 126. When the desired address number is
displayed, press ENTER to confirm the number. If you want to reset the
counter, press SET.
24
838 861 R. 11/21
SAMOA Industrial, S.A. · Pol. Ind. Porceyo, I-14 · Camino del Fontán, 831 · 33392 - Gijón - Spain · Tel.: +34 985 381 488 · www.samoaindustrial.com
then an additional configuration has
®
network will have to be part of the
®
network (in the upper right part of the
®
®
NOTE: If the unit is configured as end of line, the end of line blue led
lights up in order to ease the identification of bus endings.
5. In the next screen the display shows the message "Dir." followed by an
animated bar graphic. This parameter allows setting the fluid flow
direction through the unit.
6. Press F1 button to set flow direction so that the animated bars
movement matches the fluid flow in the unit. Press F2 button to confirm.
7. Having reached this point, the unit stores in its memory all the
parameters introduced and it is restarted with these new parameters.
NOTE: In the case that the unit is restarted before reaching this last step
(due to a power loss or whatever reason), the parameters introduced will
not be stored in the unit.
3. Once the address is confirmed, "E.O.L" is displayed on the screen to
set the end of line resistor. "ON" (led "E.O.L" on) or "OFF" (led "EOL"
off) is displayed according to the last saved status. To change the
status, press the "SET" button and then press ENTER to confirm.
4. "MODE" is displayed on the screen to set the display mode during a
transaction. To change the mode, press SET until the desired mode,
"STD" (standard) or "XXL" are displayed. Once the mode is set, press
"ENTER" to confirm.
5. "OK!" is displayed on the screen and the unit restarts showing the
standby screen.
