6. SOFTWARE CONFIGURATION

6.2.2 DEVICES

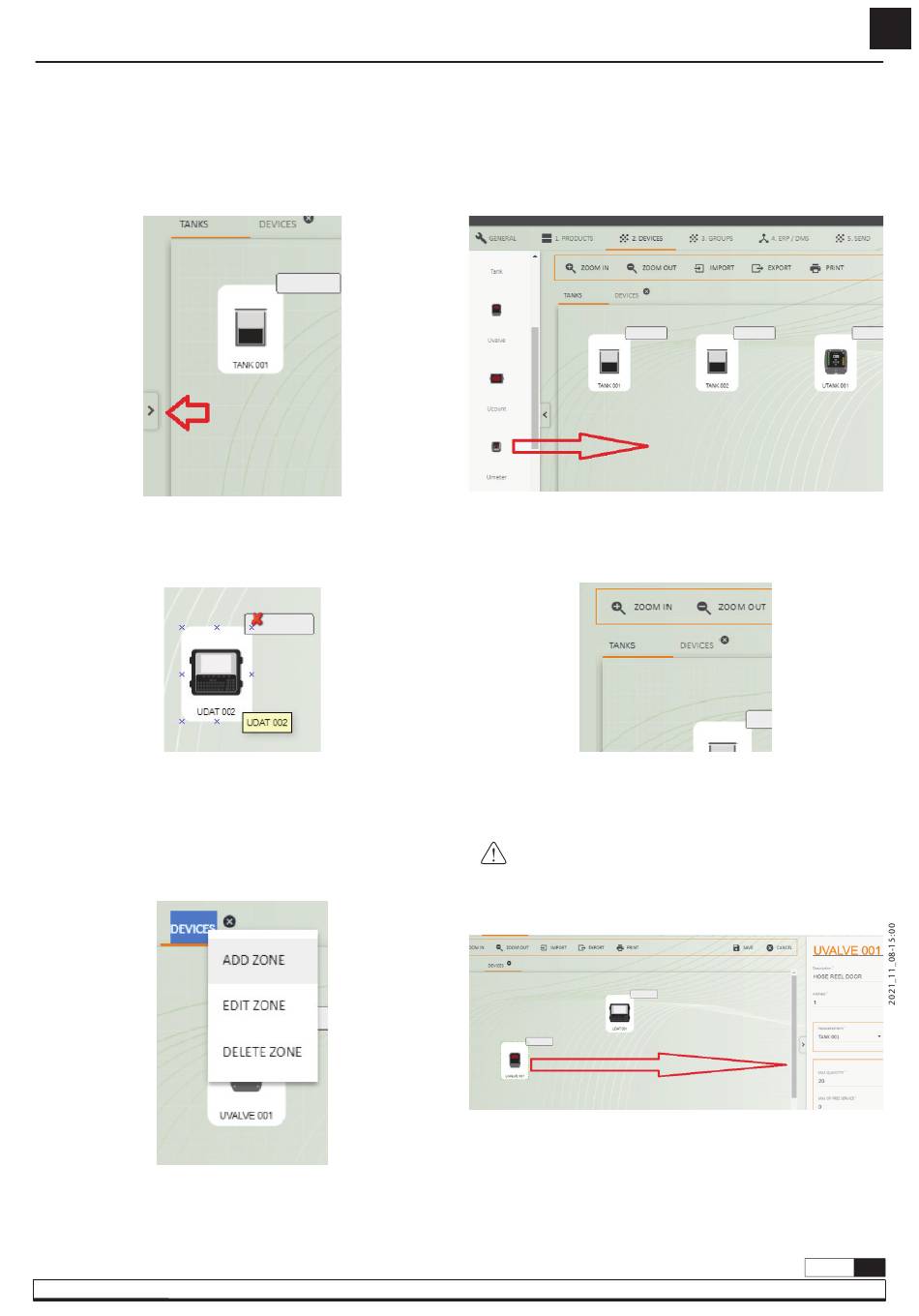

In this screen you will be able to define all the devices of the installation
with all the global parameters. The process is very simple. You have to
choose the desired device in the left part of the window. Press the arrow
at the left part and a window will scroll.
If you want to eliminate the device, you have to put the mouse on it. A
red cross will appear and if you click it, it will be deleted.
This has been made to make the configuration a little bit easier.
In the first one (Tanks) you can drag the devices related to the Tanks
(Tanks and UTanks). In the second one you can drag the rest of the
elements. In any case, if you want to create more tabs, you can double-
click in any of the active tabs and a pop up window will appear.
SAMOA Industrial, S.A. · Pol. Ind. Porceyo, I-14 · Camino del Fontán, 831 · 33392 - Gijón - Spain · Tel.: +34 985 381 488 · www.samoaindustrial.com
Once you scroll it you will see all the elements of the NexU system. If you
want to use one, you have to click it and then drag & drop it to the
central screen.
By default you will see two tabs: Tanks and Devices.
If you press ADD ZONE, a new one will appear. At the same time you can
either delete (DELETE ZONE) the zone or edit (EDIT ZONE) the name of
the existing zone.
WARNING: If you delete the zone, all the elements
included in that zone will disappear.
Once the device has been dragged & dropped, click on it and a left window
will appear. You will be able to make the configuration in that window.
Let´s see how to make the configuration of all the elements.
