5. Reset the emergency stop by pressing the reset button.

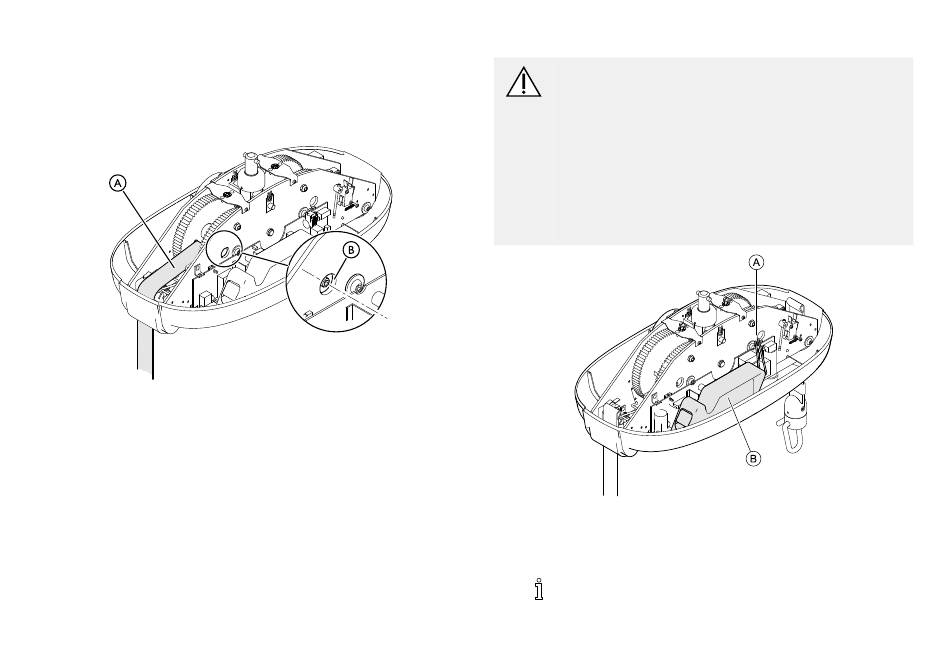

6. Check that the strap A is completely unwound as shown in the
image. If not, wind the straps out using the UP/DOWN button
on the hand control.
Align the strap retaining bolts B with the aperture in the chassis
7.
using the UP/DOWN button on the hand control.
8. Pull the red emergency strap again.
9. Remove strap bolts, using a 10 mm socket key and a 5 mm
hex/Allen key.
10. Remove the strap through guide cylinder.
11. Insert a new strap through guide cylinder and assemble using the
strap retaining bolts (Torque: 4 Nm). Make sure that the new
strap is fed over the slack strap switch wire.
12. Re-mount the cover, re-assemble the hoist to the track and
reset the emergency stop.
1586747-A

3.6 Replacing the battery

CAUTION!
Static electricity can damage the PCBs inside the hoist.
Before working in the inside of the hoist:
– Pull the red emergency strap to turn off the hoist.
– Remove the hoist from the track system. (Refer to 3.2
Dismounting the ceiling hoist, page 9 )
– Remove the cover from the hoist. (Refer to 3.4
Removing the hoist cover, page 12)
– An anti-static mat must be used when working inside
the ceiling hoist.
1. Unplug the wires A.
2. Remove the battery pack B.
3. Insert a new battery pack.
Use only Invacare recommended batteries.
Service
13
