ULTRAFLEX
ENTER (3) button on the display is pressed having understood risks and responsibilities.
CAUTION
If the speed of the boat is greater than 3 knots (3.5mph), it will not be possible to activate the electronic anchor
functions.
The functions of the electronic anchor are deactivated in the following modes:
1. By pressing the button corresponding to the active function, for example, the MAINSTAY function can be turned
off by pressing ANCHOR and HEADING simultaneously or in sequence.
2. By moving or rotating the joystick in any direction.
3. By moving the control levers of the active station. In this case, the joystick control will also be disabled.
4. By pressing the
button. In this case, the joystick control will also be disabled.
WARNING
As regards SUZUKI ENGINES, points 3 and 4 are not to be considered. Press the station enabling button on the
control levers in the NEUTRAL position in order to disable the electronic anchor funcition and joystick mode.
Activation of the screen for electronic anchor functions
To use all of the functions that the system provides, the display of
the electronic anchor screen on the control panel must be enabled:
1. Press the MENÙ key (4).
2. Select the SCREEN CONFIG.
3. Scroll down until reaching the NO SCREEN page.
4. Press the ENTER key (3).
5. In the SELECT LAYOUT screen that will appear, select the AN-
CHOR screen and press the ENTER key (3) to open it.
6. The screen shown at the side will appear, which in the absence
of active electronic anchor functions will display STANDBY
(7) and a red dot (8). In this condition the compass angle of
the boat's GPS will be displayed.

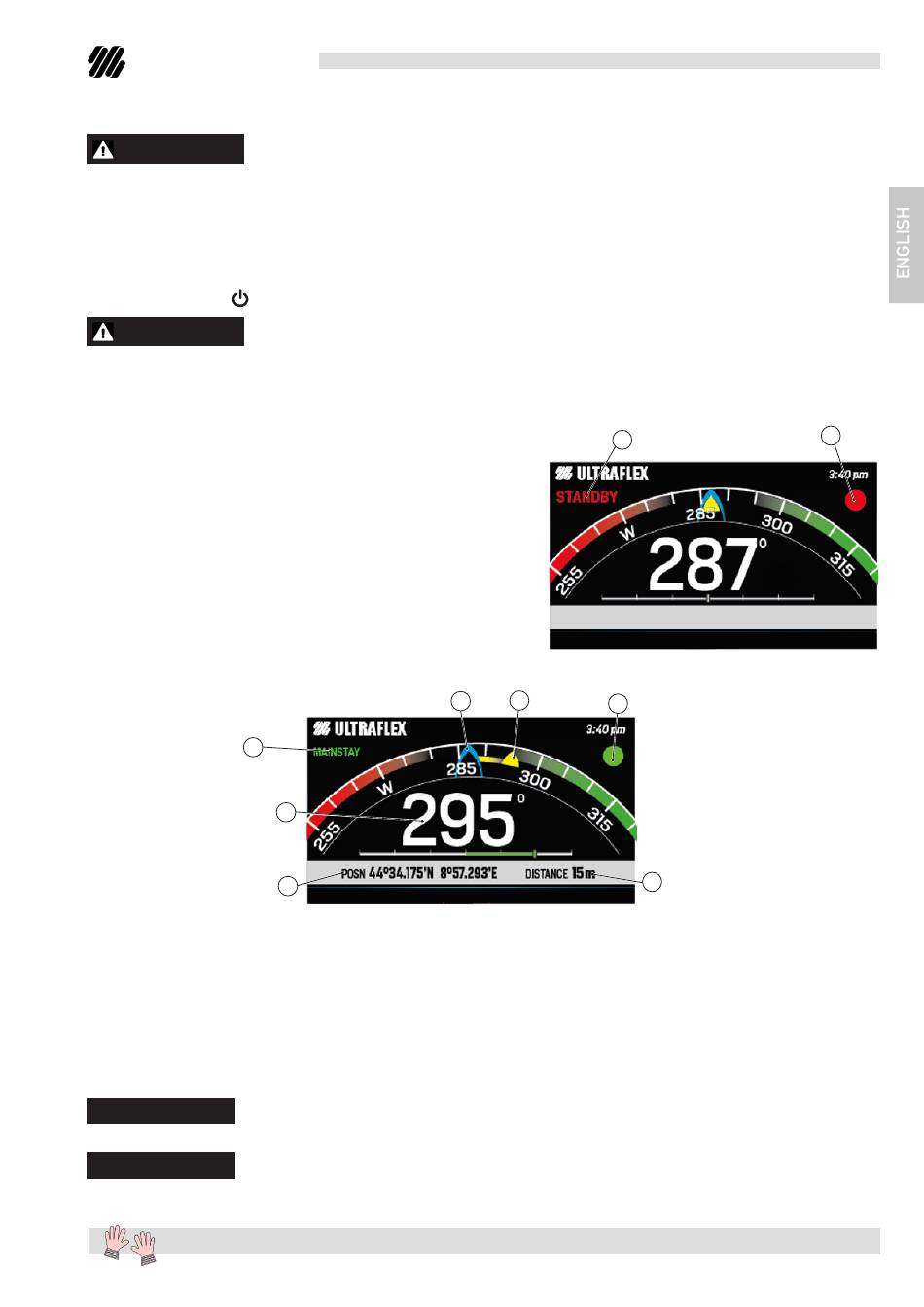

Description of the electronic anchor screen
B
A. Electronic anchor activation status (green: active; red: not active).
B. Type of active function.
C. Blue cursor: bow direction in real time.
D. Yellow cursor: selected direction of the bow that the system will attempt to maintain (HEADING and MAINSTAY
functions).
E. Geographic coordinates indicating the position that the system will attempt to maintain (ANCHOR and MAIN-
STAY functions).
F. DISTANCE: it shows how distant (in meters) the boat is from the set position (E) (ANCHOR and MAINSTAY
functions).
G. Numerical value in degrees indicated by the yellow cursor (D).
NOTICE
In the case of the ANCHOR function, the cursor (D) will match that of the bow direction in real time (C).
NOTICE
In the case of the HEADING function, the coordinates (E) represent the real-time position of the boat. The DIS-
TANCE field (F) will be deactivated.
G
E
7
D
C
A
INTEGRA SYSTEM
User manual
F
page 21
8
of 119
