9.4
Schémas de connexion
9.4.1 Schéma de connexion Logatherm WPL 6 - 8 IK
Schéma de connexion 1 de 3

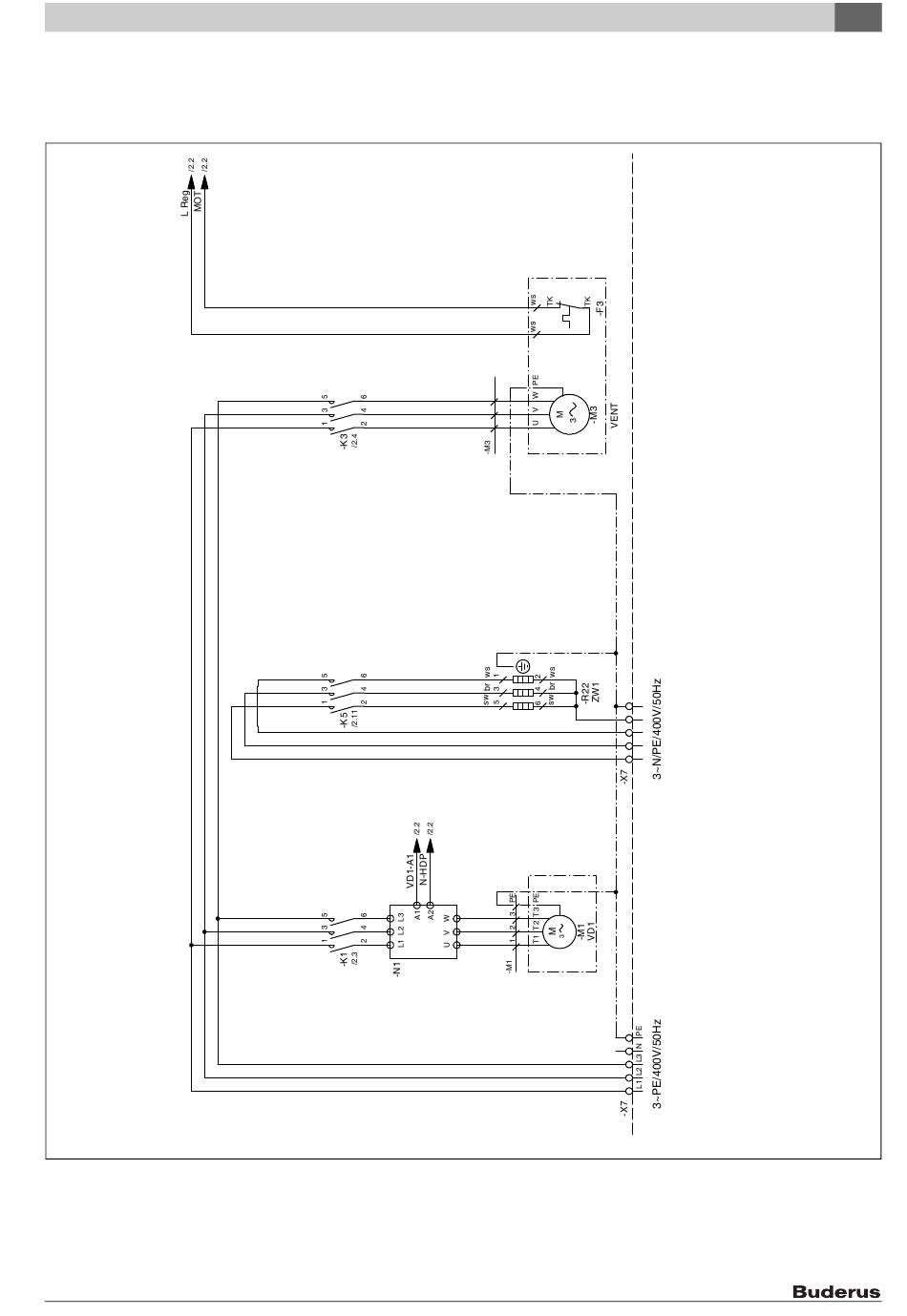

Fig. 81 Schéma de connexion 1 de 3 (Logatherm WPL 6 IK et WPL 8 IK)
Logatherm WPL ... IK – 6 720 806 104 (2015/02)
black
blue or grey
brown
Annexes
1PE
1N.
1L3
1L2
1L1
6 720 644 794-79.2T
9
41
