Textron Jacobsen CUSHMAN Turf Truckster Manuel De Maintenance page 13

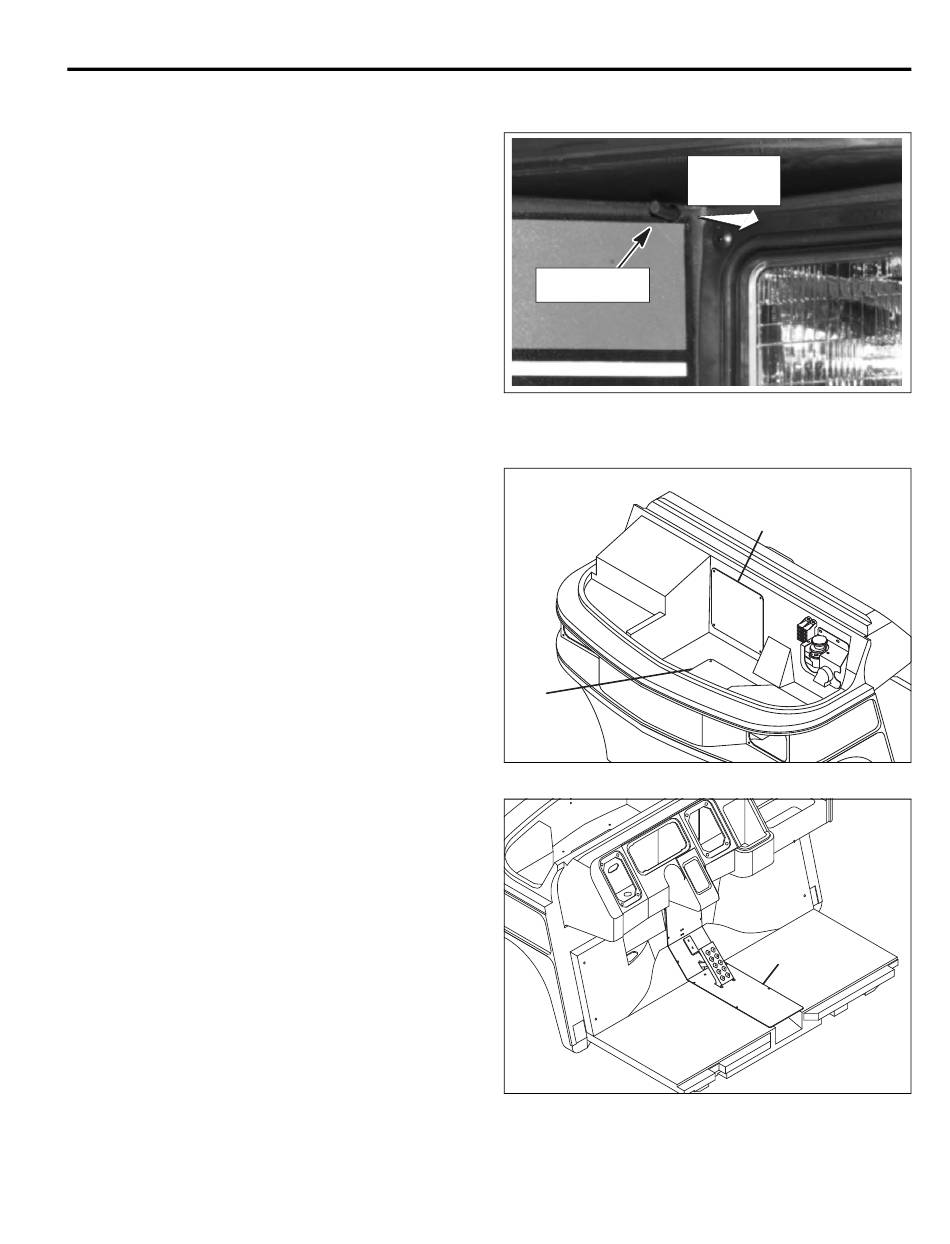

4.3 FRONT COWL ACCESS_____________________________________________________
The front cowl opens to gain access to two access
panels, fuse panel, horn, and master cylinder reservoir.
To open the front cowl locate the release lever at the
upper left corner of front clip near the left side headlight.
Pull the lever toward the headlight to release the front
cowl latch and at the same time pull up on the front cowl.
Fully open the cowl and allow it to rest on the steering
wheel (or upper ROPS structure if installed).
The front cowl will not spring up when the release lever is
pulled and so must be lifted manually.
4.4 ACCESS PANELS _________________________________________________________
There are two access panels located under the front cowl
and one located in the middle of the floorboard.
Remove panel (A) under cowl to access the shifter
linkage and wiring for the instrument panel.
Remove panel (B) under cowl to access the front
suspension.
Remove the center panel (C) in the middle of floorboard
to access the throttle cable, accelerator pedal linkage,
wire harness, and rear hydraulic brake line.
NOTE: It will be necessary to remove the accelerator
pedal in order to completely remove the center floorboard
panel.
All manuals and user guides at all-guides.com
ADJUSTMENTS
Pull Lever
To Release
Cowl Latc h
Front Cowl
Release Lever
B
4
Figure 4C
A
Figure 4D
C
Figure 4E
en-13
