Installation and User Manual HELO Roxx Trend

2.10. Various stages of the installation

With the adjustment legs driven in, the mounting height of the
sauna heater wall mount is 750mm from the floor.
The adjustment legs can be adjusted 15mm in case the floor is
inclined. After the mounting, check that both adjustment legs are
evenly against the floor.
The distance between the holes for the mount in the wall is 240mm.
Parts for wall mounting:
- sauna heater locking wedges (A)
- wall fastening (B)
- sheet metal screw 4.2 x 13mm
- build screw 6 x 40mm
Pass the locking wedges (A) through the holes in the heater so
that the ingoing part is turned upwards.
The wall mount (B) is attached to the wall so that the holes where
the locking wedges are secured to are upwards.
The mount may also be attached directly to the sauna heater.
Mark the locations of the screws on the wall and, if necessary,
drill small holes and mount the sauna
heater then to the wall with the screws provided.
The picture shows how the wall mount should be attached
to the sauna heater. The locking wedges are attached to
the wall mount with the sheet metal screws.

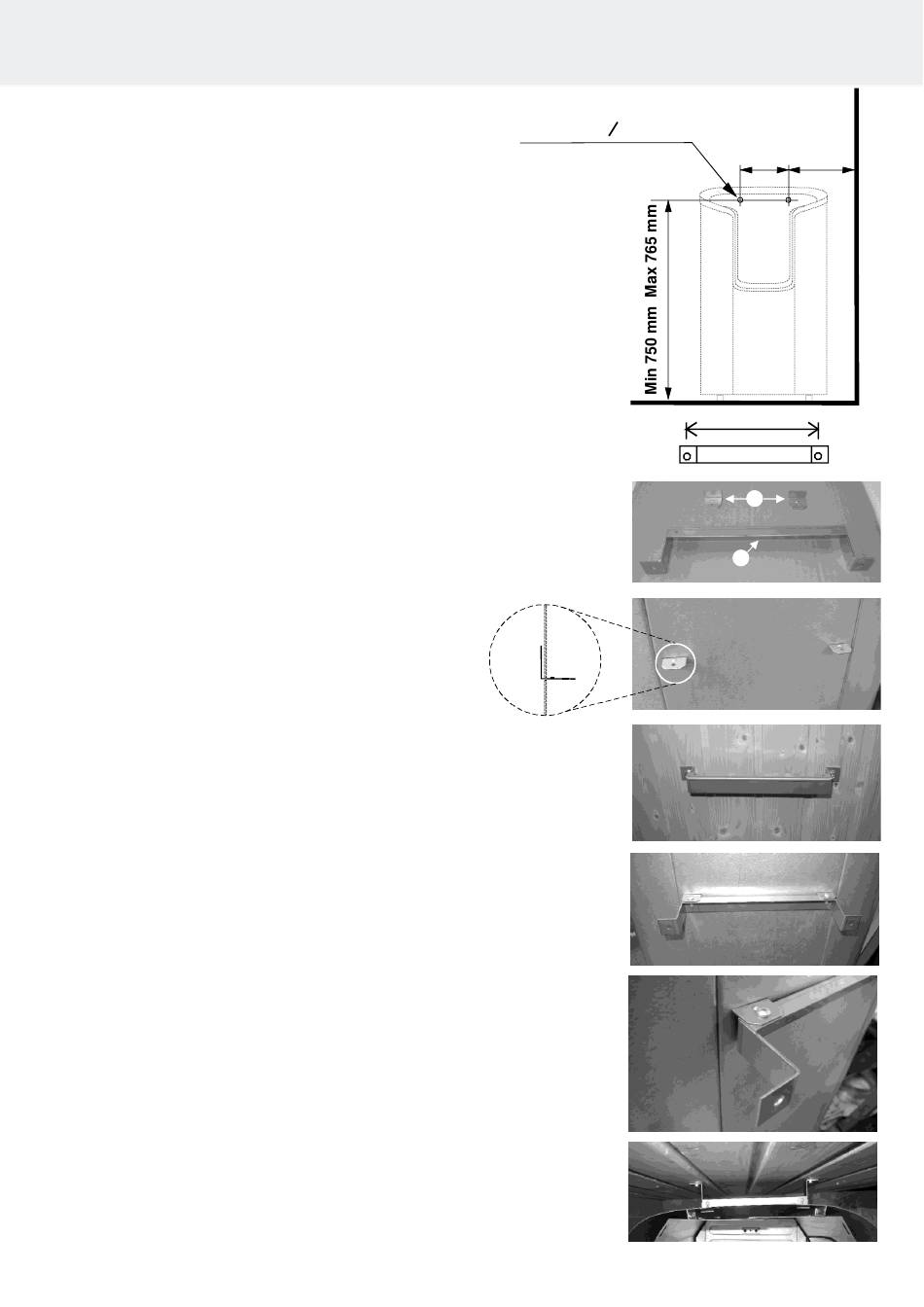

Figure 3 Mounting the sauna heater to the wall
Borr diam. o 3,5 mm
2 pcs
1 pc
2 pcs
2 pcs
8
Min.
240 mm
240
2 4 0 m m
240mm
A
B
