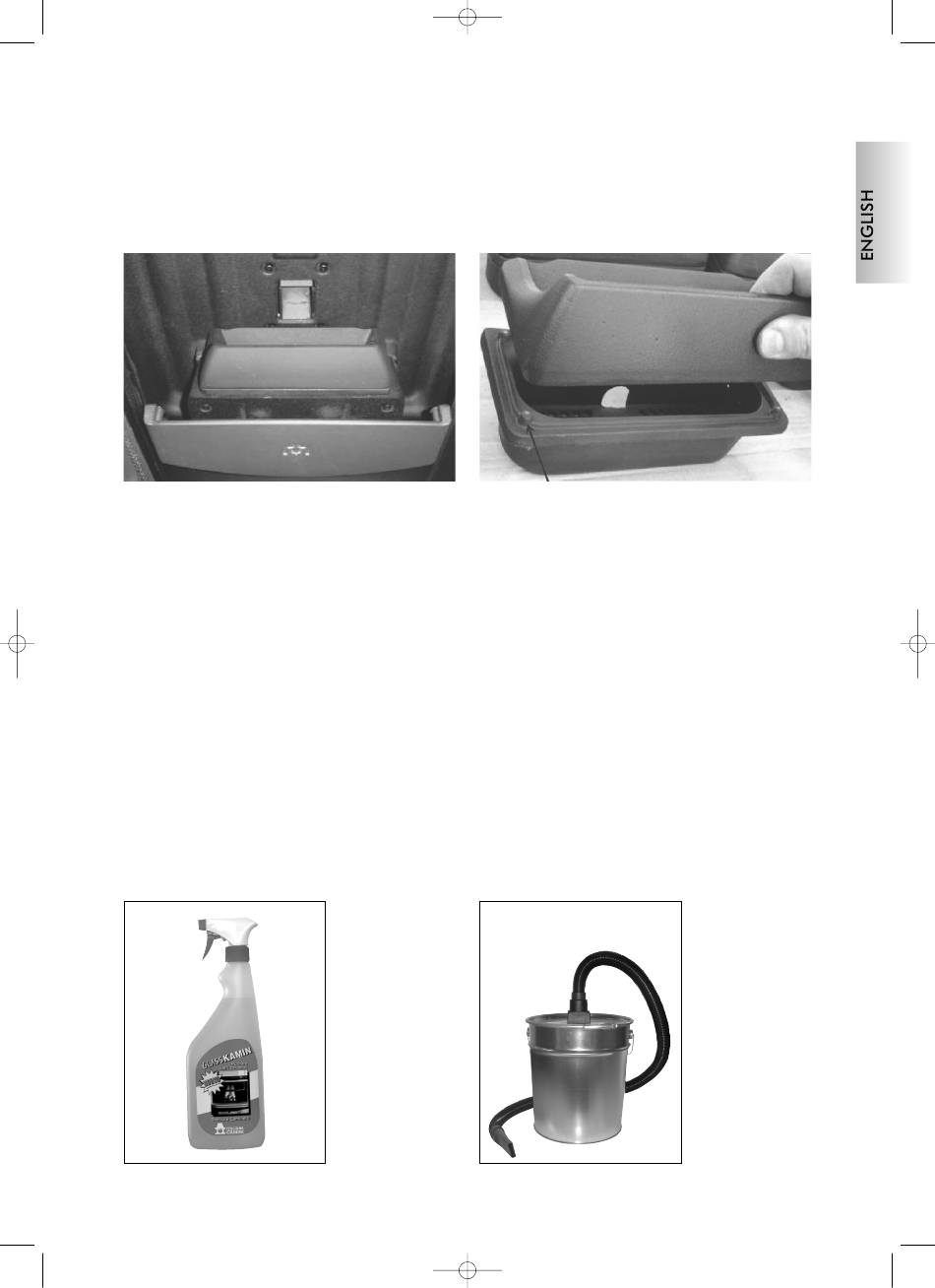

After routine cleaning, INCORRECT coupling of the upper combustion chamber (part 9 in exploded views on
pages 146-149-152) with the lower combustion chamber (part 10 in exploded views on pages 146-149-152) can
compromise correct operation of the stove. Therefore ensure that the combustion chambers have been coupled
together correctly as shown in (Illustration 1) before igniting the stove.
Illustr. 1
Ensure that the lower combustion chamber centering pins enter the relevant centering holes of the upper
combustion chamber (Illustration 2).
TELEPHONE DIALLER FOR REMOTE IGNITION (Code 281900)
The dealer can add a telephone dialler to the electronic circuit board (AUX port) for turning the stove on remotely.
KIT 8 for ducting to an adjacent room (Code 297360) composed of:
• pipe clamp
• Ø 10 1.5 m. flexible hose
• vent
KIT 9 for ducting to two adjacent rooms (Code 299440) composed of:
• 2 Ø 10 1.5 m flexible hoses
• 4 Ø 14 cm. pipe clamps
• 2 Ø 10 cm ducted air vent kits
• 1 Ø 10 cm V-Union
Mechanism for transforming STANDARD model to DUCTABLE model (Code 297350)
This mechanism must be installed and tested by one of our authorised dealer.
SUITABLE CLEANING ACCESSORIES
03/05/2011
WARNING !!!
Illustr. 2
OPTIONALS
GlassKamin
(cod. 155240)
For cleaning
ceramic glass.
49
16.36 Pagina 50
Ash vacuum cleaner
(cod. 275400)
For cleaning the fire-
box.
