Covering assembly - TANIA
INSTRUCTIONS FOR USE OF MATERIAL
KIT
The material kit supplied with the documentation is composed
of:
2 M6x25 screws
2 M6x12 screws
4 silicone spacers for ceramic top
8 flat washers diam. 6
Instructions for use:
1. the 2 M6x25 screws and 2 M6 flat washers are for fixing the cera-
Detail "X"
mic upper front panel.
2. the 2 M6x12 screws and 2 M6 flat washers are for fixing the cera-
mic lower front panel.
2 Screws
3. follow the sequence described
below to fit the 4 spacers and washers:
• insert the 4 ceramic spacers into the 4 free holes on the cast iron top.
• rest the ceramic top on them to check that it is level.
• if necessary insert a flat washer between the silicone spacer and the
cast iron top so that the ceramic top is level with the stove.

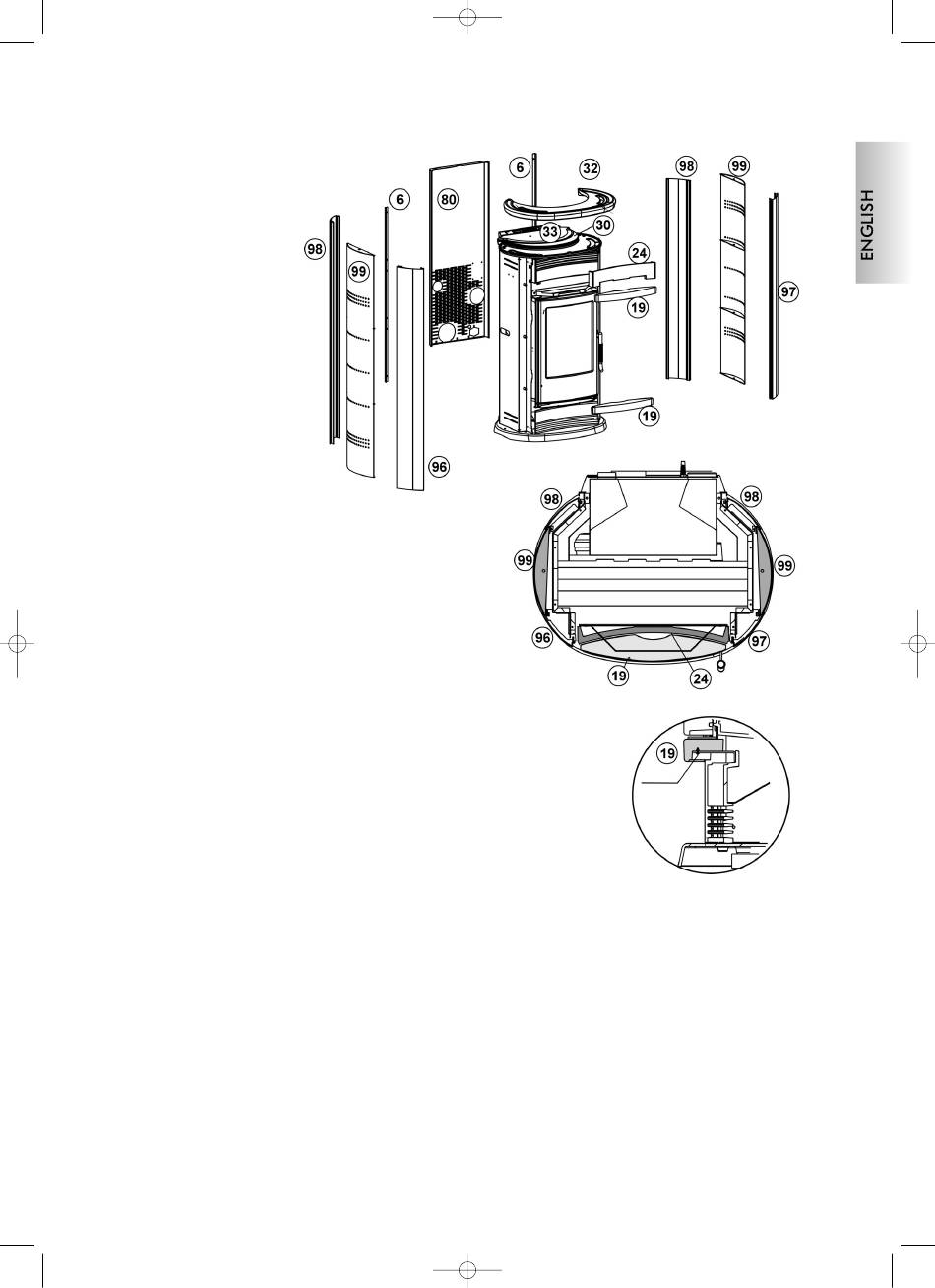

The stove is delivered pre-assembled, however the covering can be removed if needed
by following the procedure described below:
Unscrew the back (80) and the two profiles (6), remove the cover (33), the cast iron top
(30) and the ceramic top (32).
Remove the stone side pieces (102-103-104) and if necessary remove the two alumi-
nium profiles (98) wedged into the base pins.
Remove the front profile (19) then remove the upper rear panel (24) from the fittings in
the grille structure.
To remove the lower front panel (105) unscrew the two screws see detail "X".
Follow the same procedure in reverse order to reassemble the stove.
