DUCTING ADJUSTMENT (ONLY FOR DUCTABLE MODEL)
The stove channels half the warm air produced, whereas the other half is always emitted from the upper front grille
(refer to the diagram on page 28).
Ducting is adjusted through an electronically adjusted damper that deviates the air towards the rear vent for ducting or
towards the lower left front grate.
The position of the damper can be selected by pressing the "ducting" key and changing the setting displayed, a 00%
setting corresponds to fully closed ducting), whilst the 100% setting corresponds to fully open ducting.
When set at 50% the air is divided equally between ducting and the front grate; different subdivisions can be obtained
by following the same procedure.
Channelling scheduled timer
Hold the damper key down for 2 seconds to access the menu in which 6 different time slots can be set.
Hold the damper key down for 2 seconds and the following message will be displayed on the right-hand display:
"canaliz./Prog. On"
This position is used to enable/disable the damper timer function.
Press the "Menù" key to scroll through the six time slots, for example: "Pr1 50% 09.00"
This position indicates that Program 1 will adjust the damper to the 50% setting at 9 am.
Press +/– to change the % and press the "Menù" key to confirm.
Press +/– to change the time and press the "Menù" key to confirm.
Press the "Menù" key to move on to the next programming stage.
Procedere allo stesso modo per le altre programmazioni. Se si desidera non utilizzare alcune delle sei fasce orarie sarà
Proceed in the same way for the other programs. If some of the six time slots are not to be used just set "no P" (no
progr) on the display, found just before the 00% percentage.
Press the On/Off key at any time to leave the damper menu.
Once a day and any time that there is a power cut, the damper executes an automatic fully opening and closing cycle to
restore the programmed position: "CNLZ Res".
Air to
ducting

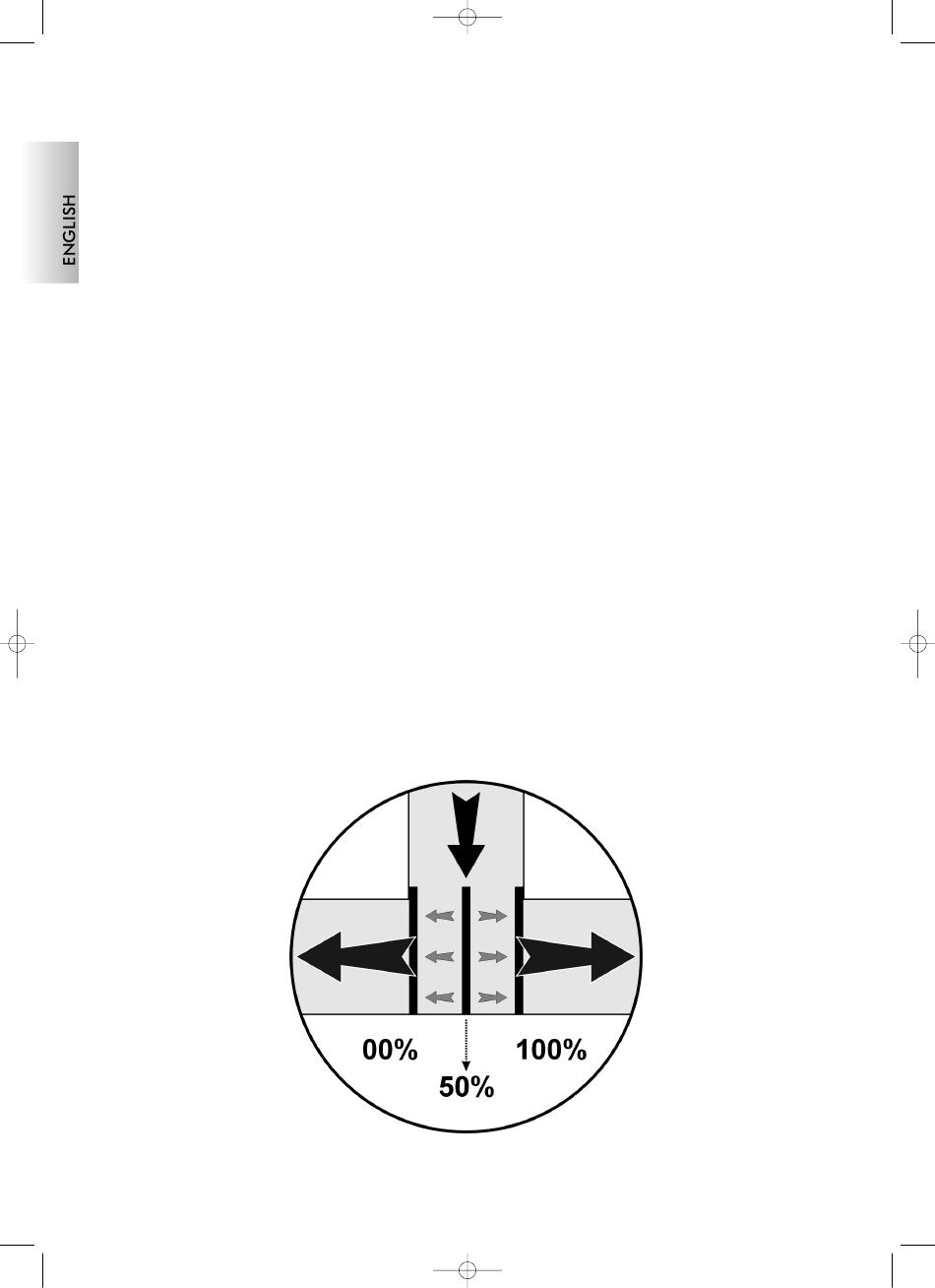

Damper position diagram with percentages of hot air sent to ducting.
03/05/2011 16.36
44
Pagina 45
Air to the

front grille
