English

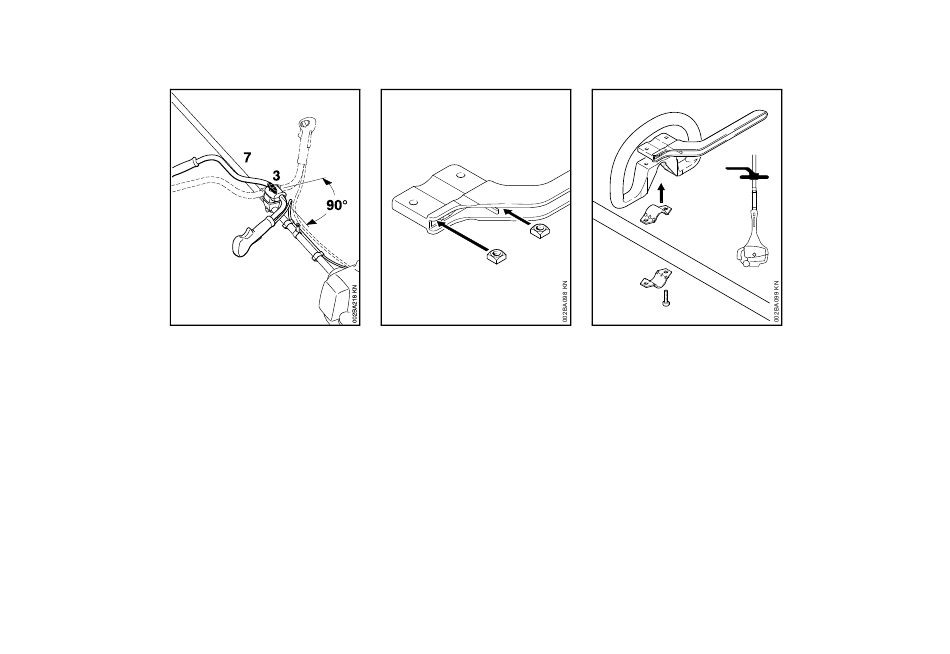

Swiveling the Handlebar
Transport position:
:
Release the wing screw (3) and
unscrew it until the handlebar (7)
can be turned clockwise.
:
Turn the handlebar 90° and then
swing the handles down.
:
Tighten down the wing screw firmly.
Working position:
:
Reverse the sequence described
above to swing the handles up
and turn the handlebar counter-
clockwise.
22

Mounting the Loop Handle

2
1
1
Loop handle with barrier bar
:
Insert square nuts (1) in the barrier
bar (2).
:
Line up the holes.
2
4
3
5
6
7
:
Place the clamp (3) in the loop
handle (4) and position them both
against the drive tube (5).
:
Fit the clamp (6) and place the
barrier bar (2) in position.
:
Note correct position!
:
Line up the holes.
:
Insert screws (7) in holes and screw
them into the barrier bar as far as
stop.
:
Go to "Securing the loop handle".
FS 120, FS 200, FS 250
