7. Set up the measurement configuration table using the PC software as described in
measurement configuration table
8. Upload the user and measurement configuration tables to the instrument as described in
files to the instrument
4.2 Reconnect battery power
For safety reasons, the battery pack will not be connected during shipment. Once the instrument has
been unpacked, the battery power should be reconnected using the following procedure:

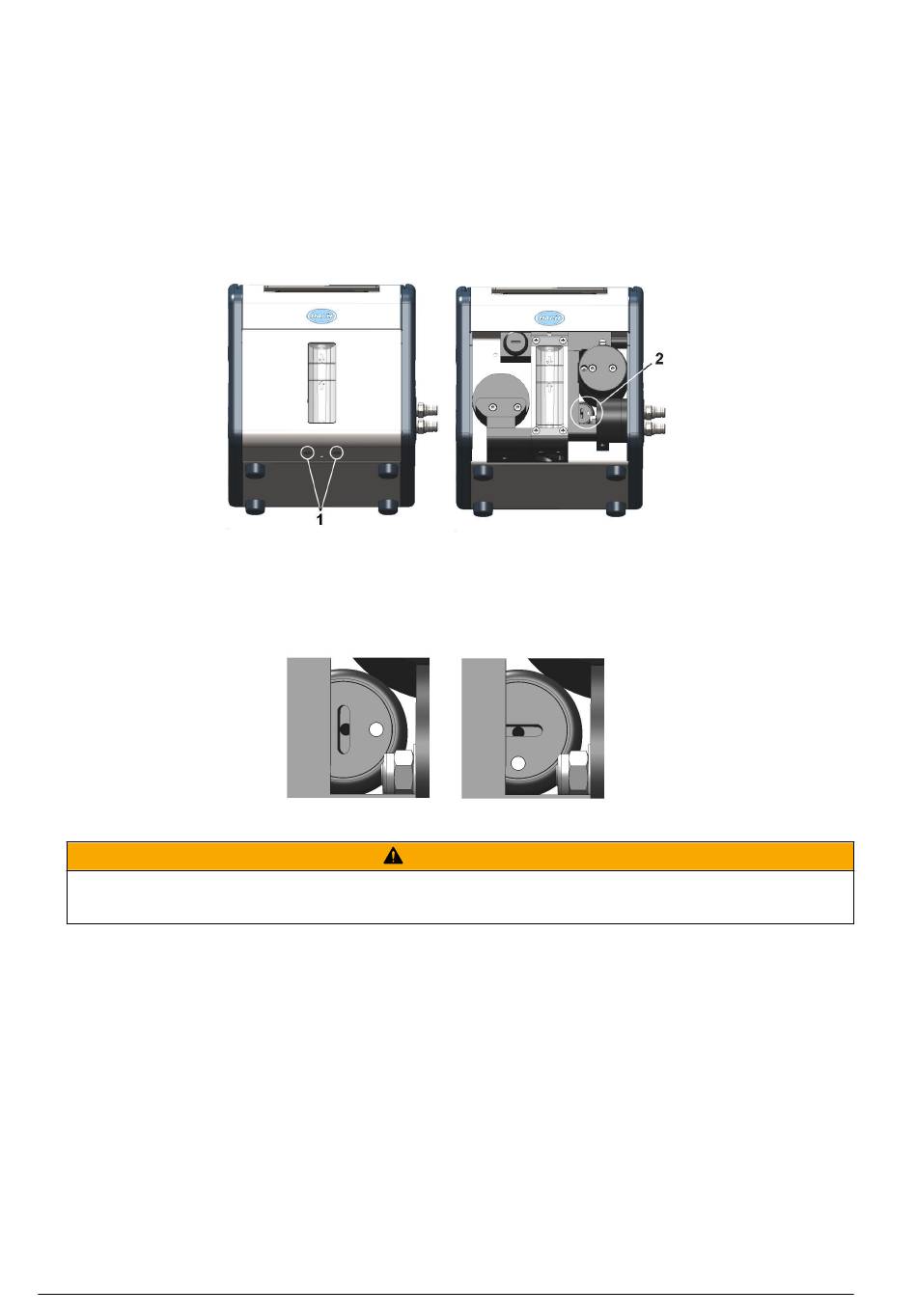

1. Tilt the instrument towards the rear, to reveal two screws underneath (No. 1) that hold the
instrument front panel in place.
2. Using the cross screwdriver supplied in the tool kit, unscrew and remove these screws. Lift off the
front panel to reveal the internal battery power switch (No. 2).
3. Using the long-bladed flat-head screwdriver supplied in the tool kit, turn the switch a quarter of a
turn clockwise to reconnect the battery power. The diagrams below show the switch in the OFF
position as delivered (left) and in the ON position (right).
4. Replace the front panel and secure back in place with the two screws.
To avoid any damage to the instrument, it will be necessary to perform the above procedure in
reverse (i.e. turn the connection OFF) prior to any future transportation of this instrument.
4.3 Instrument switches and connectors
The following diagrams illustrate the side views of the instrument and their key features:
8 English
