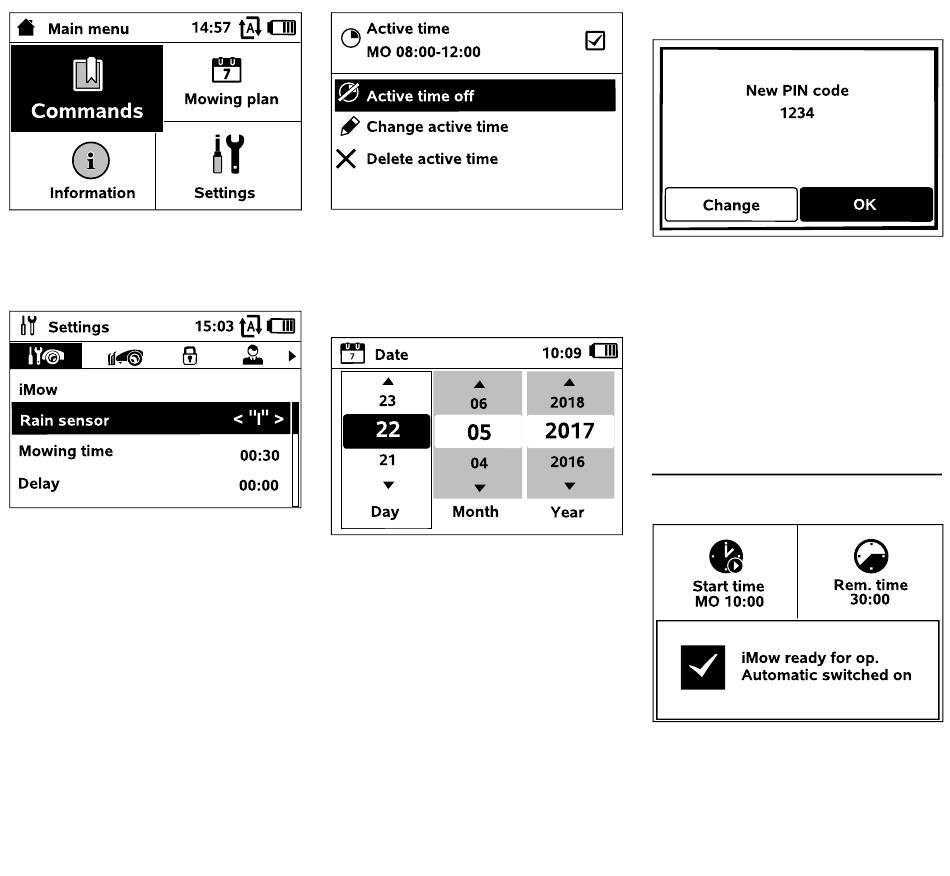

The main menu comprises 4 submenus,
displayed as buttons. The selected
submenu has a black background and is
opened using the OK button.
In the second menu level, the various
submenus are shown as tabs.
The tabs can be selected by pressing the
control pad to the left or right, submenus
by pressing the control pad downwards or
upwards.
Active tabs and menu entries have a black
background.
The scroll bar at the right edge of the
display indicates that further entries can be
displayed by pressing the control pad
downwards or upwards.
Submenus are opened by pressing the OK
button.
128
Options are listed in the submenus. Active
list entries have a black background.
Pressing the OK button opens a selection
or a dialog window.
Selection window:
Settings can be changed by pressing the
control pad. The current value is
highlighted in black. The OK button
confirms all the values.
Dialog window:
If changes have to be saved or messages
confirmed, a dialog window appears in the
display. The active button has a black
background.
In the case of selection options, the
relevant button can be activated by
pressing the control pad to the left or right.
The selected option is confirmed and the
subordinate menu called up using the OK
button.

11.2 Status screen

The status screen appears:
– when standby mode of the robotic
mower is ended by pressing a button,
