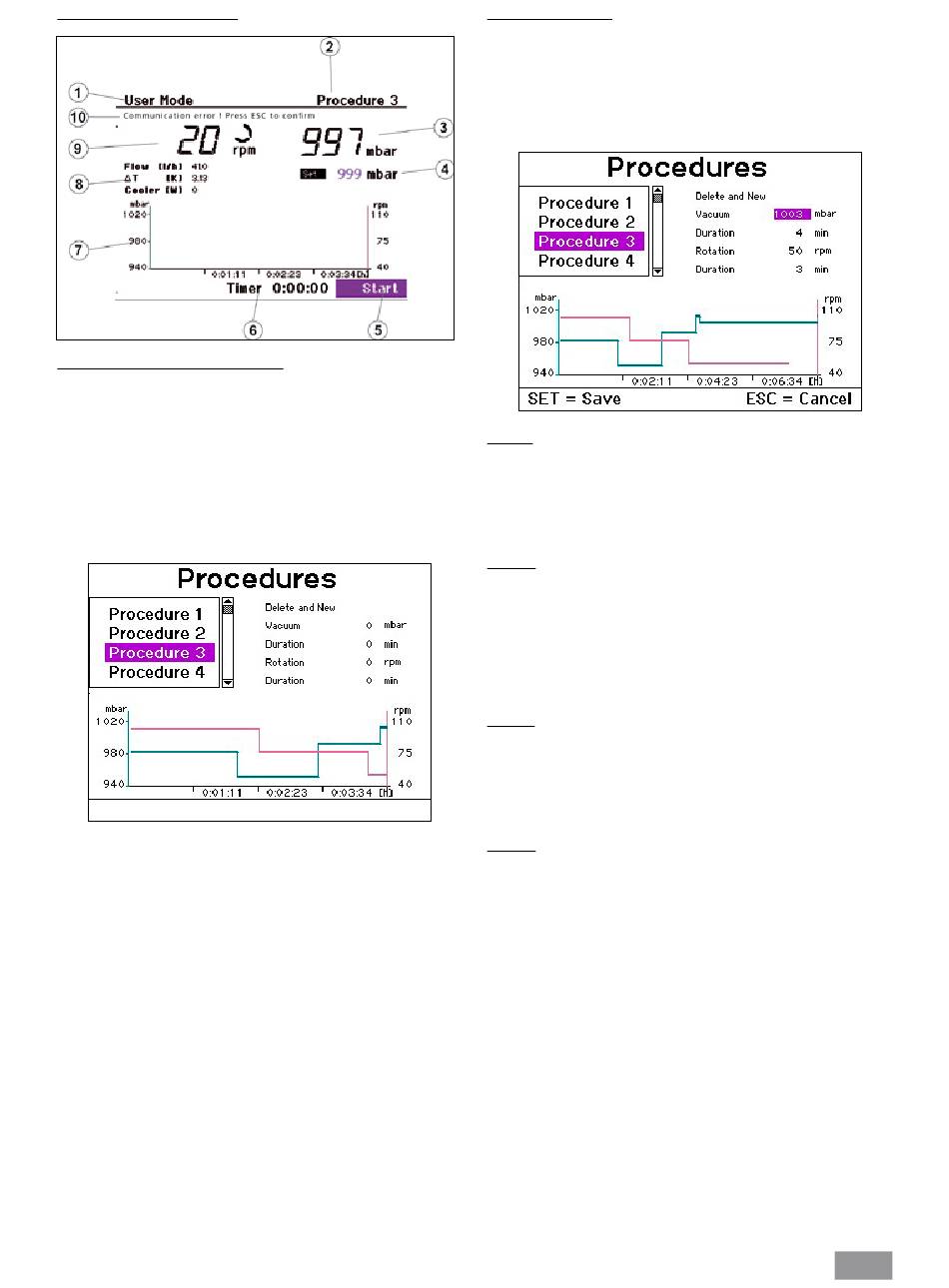

"User-defined Distillation" menu
"User-defined Distillation" display screen
1. Operating mode display
2. Control field for distillation procedure
3. Vacuum display (actual value)
4. Vacuum display (target value)
5. Control field for „Start/ Stop" distillation
6. Timer display
7. Vacuum-rotation-time graph
8. Display of flow rate, differential temperature, and condenser heat
rejection rate
9. Rotary speed display (target value) and speed measurement unit
10. Error message in case of fault, otherwise status indicator
 Turn the Rotating/ Pressing knob to the right/left to select „Procedure".
 Press the Rotating/ Pressing knob.
 The display will show the "Procedures" screen.
 Turn the Rotating/ Pressing knob to the right/left to select a procedure.
 Press the SET button.
 The procedure selected will be used for the subsequent distillation.
Note: The vacuum-rotation-time graph is displayed for each procedure.
The parameters can be changed for each procedure. Please refer to the
next section for instructions on how to do this. The sequence used for
a manual distillation process can also be saved as a procedure. see
"Manual Mode" section.
Changing a procedure
 Select the procedure to be changed and press the Rotating/ Pressing
knob. The "Delete and create" display field will be activated.
 Press the Rotating/ Pressing knob with the "Delete and create" field
selected to delete the procedure.
New vacuum and rotation values can now be entered to define a new
step in procedure.
Vacuum
 Turn the Rotating/ Pressing knob to the right/left to select "Vacuum"
from the on-screen options.
 Press the Rotating/ Pressing knob.
 Turn the Rotating/ Pressing knob to the right/left to enter a value.
 Press the Rotating/ Pressing knob.
Duration
 Turn the Rotating/ Pressing knob to the right/left to select "Duration"
from the on-screen options.
 Press the Rotating/ Pressing knob.
 Turn the Rotating/ Pressing knob to the right/left to enter a value.
 Press the Rotating/ Pressing knob. This will define a new step in the
procedure with the pair of values vacuum-duration and add it to the
procedure. The diagram will be updated.
Rotation
 Turn the Rotating/ Pressing knob to the right/left to select "Rotation"
from the on-screen options.
 Press the Rotating/ Pressing knob.
 Turn the Rotating/ Pressing knob to the right/left to enter a value.
 Press the Rotating/ Pressing knob.
Duration
 Turn the Rotating/ Pressing knob to the right/left to select "Duration"
from the on-screen options.
 Press the Rotating/ Pressing knob.
 Turn the Rotating/ Pressing knob to the right/left to enter a value.
 Press the Rotating/ Pressing knob. This will define a new step in the
procedure with the pair of values rotation-duration and add it to the
procedure. The diagram will be updated.
The vacuum-duration and rotation-duration steps can be repeated a ma-
ximum of twenty times.
SET key: Exit menu, store the newly created procedure and activate it as
the current procedure.
ESC key: Exit menu and reset all changes.
