"Manual mode with boiling point recognition" menu

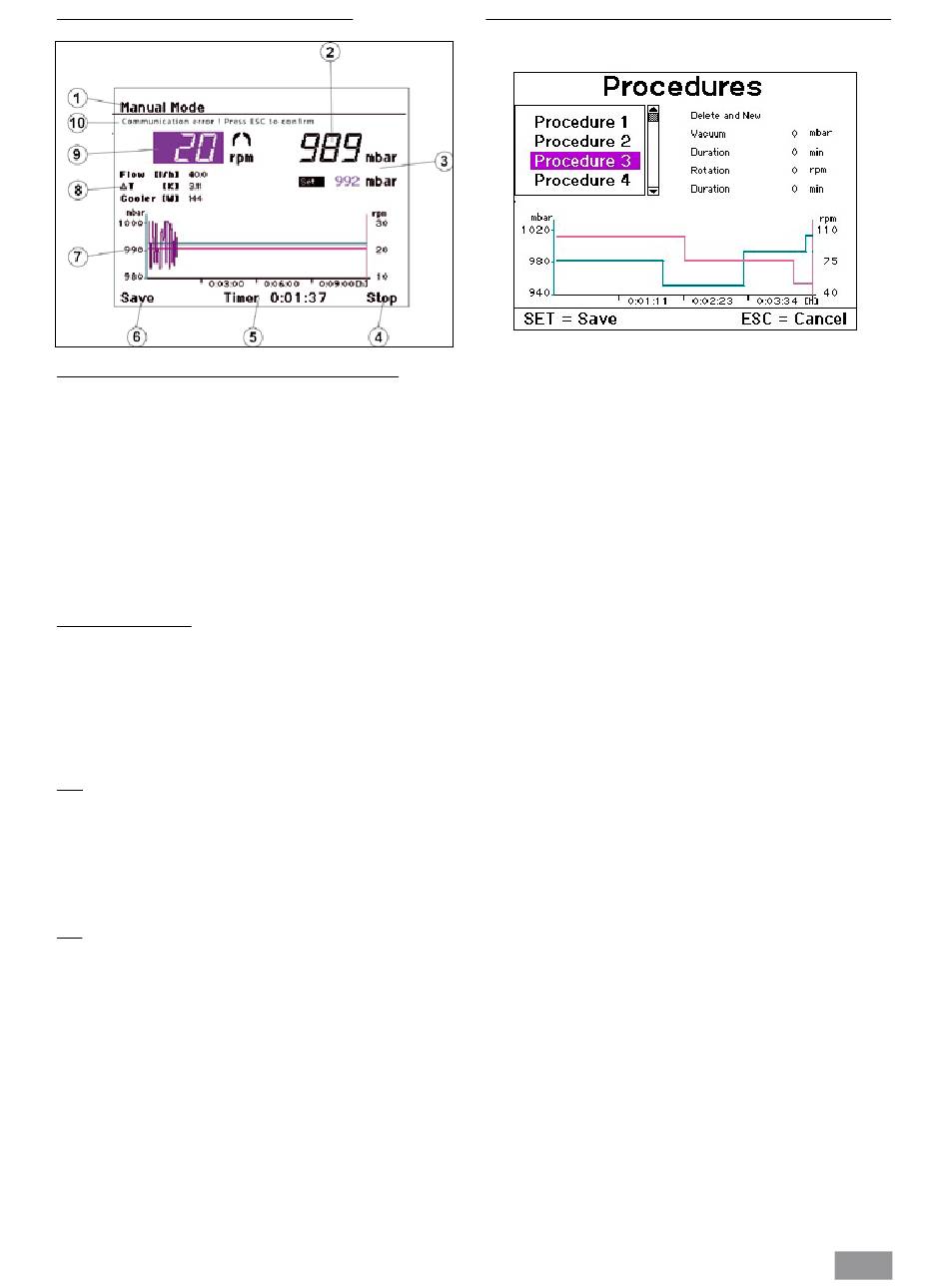

"Manual mode with boiling point recognition" display screen
1. Operating mode display
2. Vacuum display (actual value)
3. Vacuum display (target value)
4. Control field for „Start/ Stop" distillation
5. Timer display
6. Control field for storing the distillation sequence
7. Vacuum-rotation-time graph
8. Display of flow rate, differential temperature, and condenser heat
rejection rate
9. Control field for rotary speed display (target value) and speed mea-
surement unit
10. Error message in case of fault, otherwise status indicator
Setting the rotary speed
 Press the Rotating/ Pressing knob to change the target value.
 Turn the Rotating/ Pressing knob to change the value (the magnitude
of the change is dependent on the speed at which the knob is turned).
 Press the Rotating/ Pressing knob again to save and complete the pro-
cess.
Note: When you select the speed > 100 rpm, smooth start is automati-
cally activated.
Start
 Turn the Rotating/ Pressing knob to the right/left to select "Start".
 Press the Rotating/ Pressing knob to start the distillation.
 The display field will change to "Stop".
Note: If the timer has been configured, then the time will start to count
backwards. If a timer has not been configured then the time elapsed
since the start is shown.
Stop
 Turn the Rotating/ Pressing knob to the right/left to select "Stop".
 Press the Rotating/ Pressing knob to stop the distillation.
 The display field will change to "Start".
Saving the distillation sequence as a procedure on completion of distillation
 Turn the Rotating/ Pressing knob to the right/left to select "Save".
 Press the Rotating/ Pressing knob to display the "Procedures" screen.
 Turn the Rotating/ Pressing knob to the left/right to select one of the
ten procedures. The sequence will be shown graphically.
 Press SET, to overwrite the selected procedure with the current proce-
dure (the procedure that has just been completed) and exit the menu.
Pressing ESC will prevent the selected procedure from being overwrit-
ten.
Note: Distillation sequences saved in this manner can be repeated at
a later dater in the user-defined mode by selecting the corresponding
procedure.
